Keyless Access With Push Button Start System: Wiring Diagram

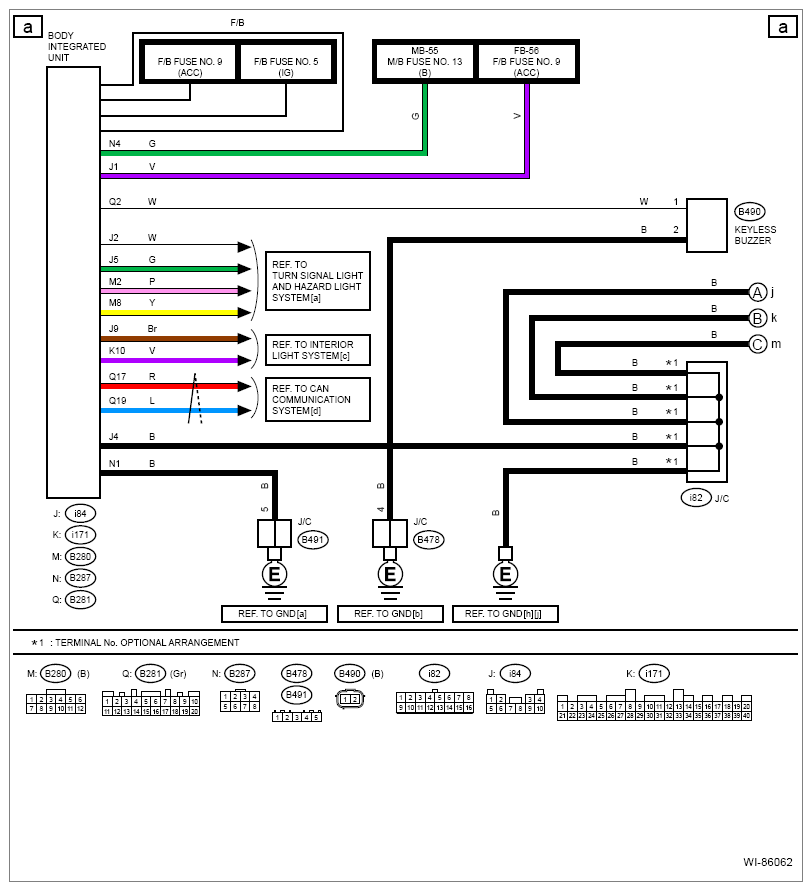

G13614131

Courtesy of SUBARU OF AMERICA, INC.

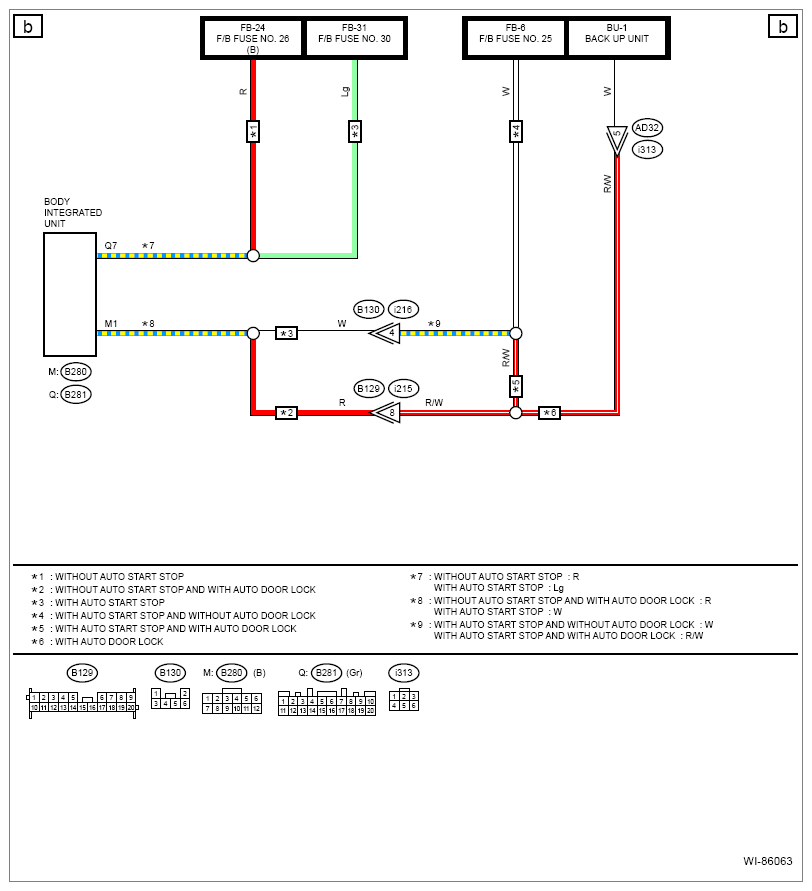

G13614132

Courtesy of SUBARU OF AMERICA, INC.

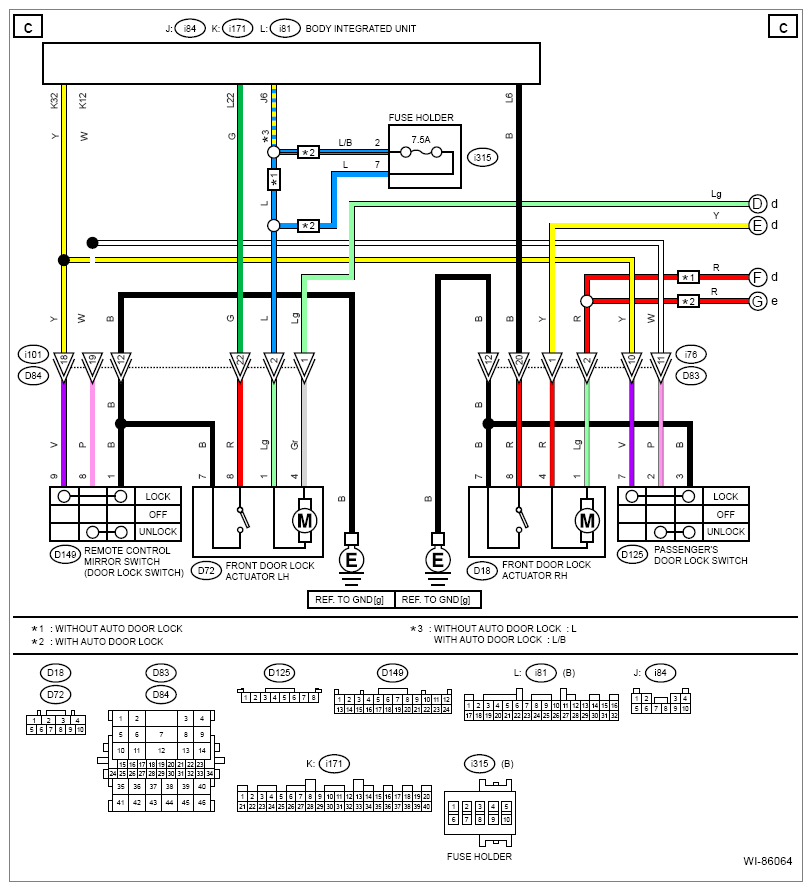

G13614133

Courtesy of SUBARU OF AMERICA, INC.

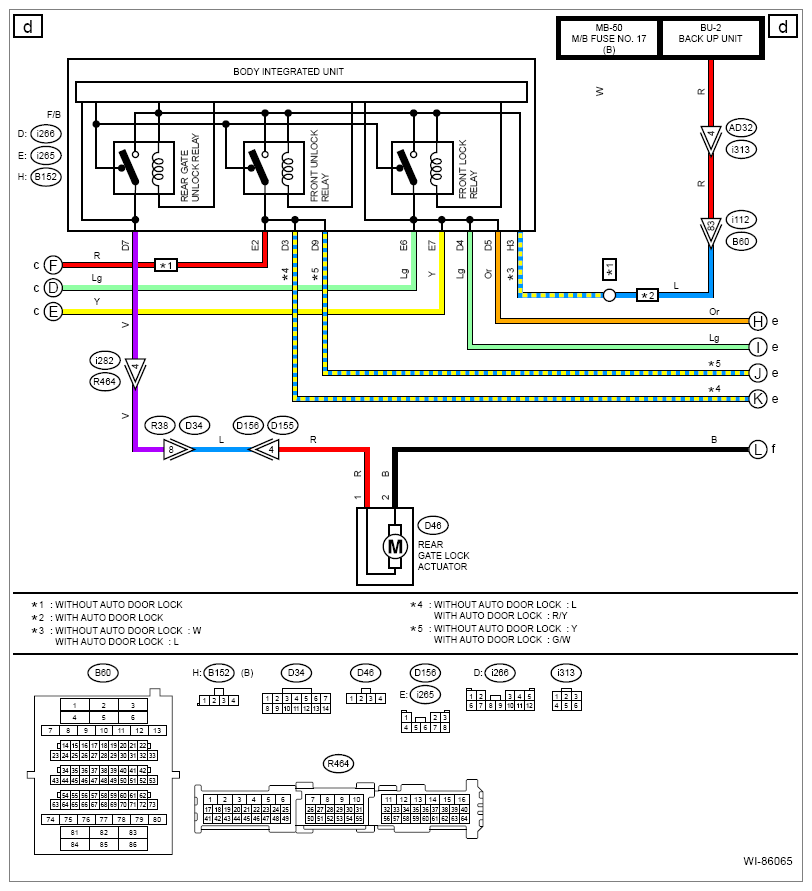

G13614134

Courtesy of SUBARU OF AMERICA, INC.

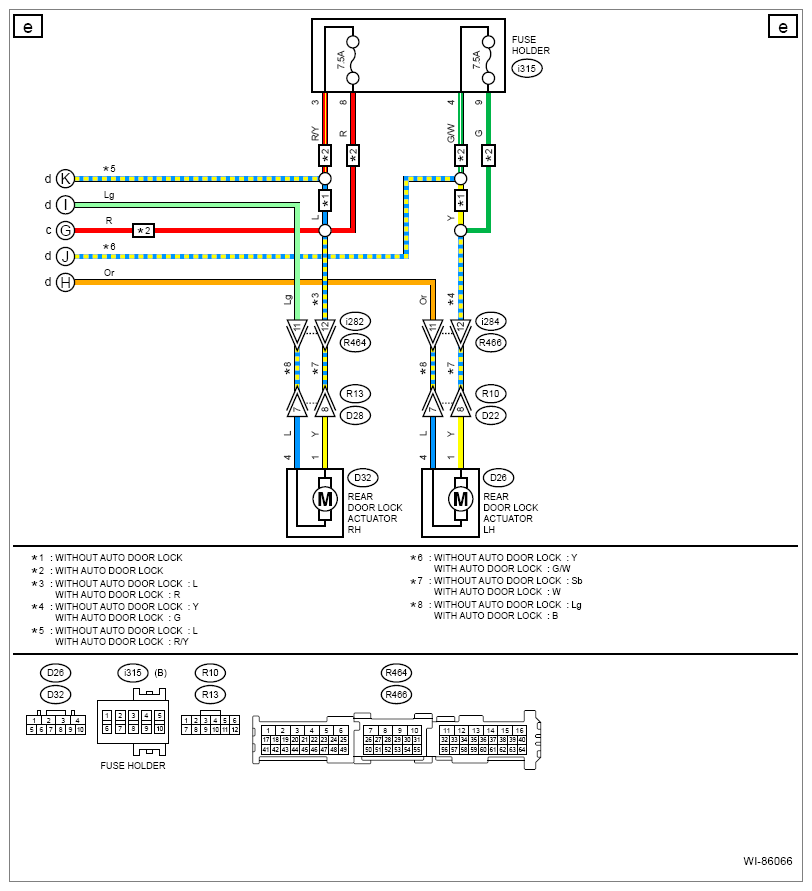

G13614135

Courtesy of SUBARU OF AMERICA, INC.

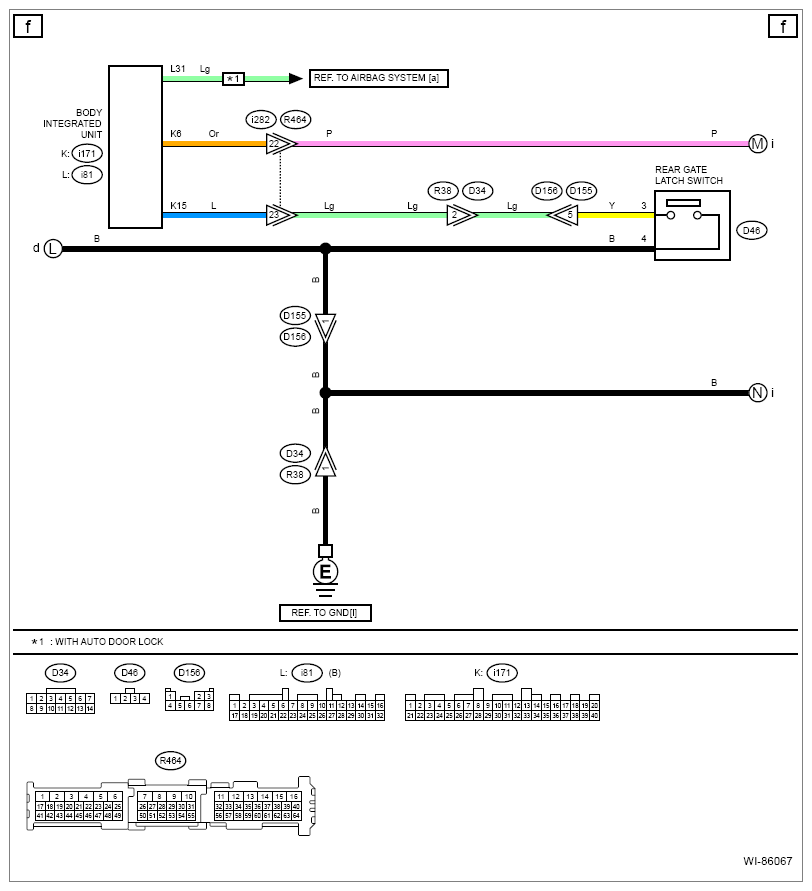

G13614136

Courtesy of SUBARU OF AMERICA, INC.

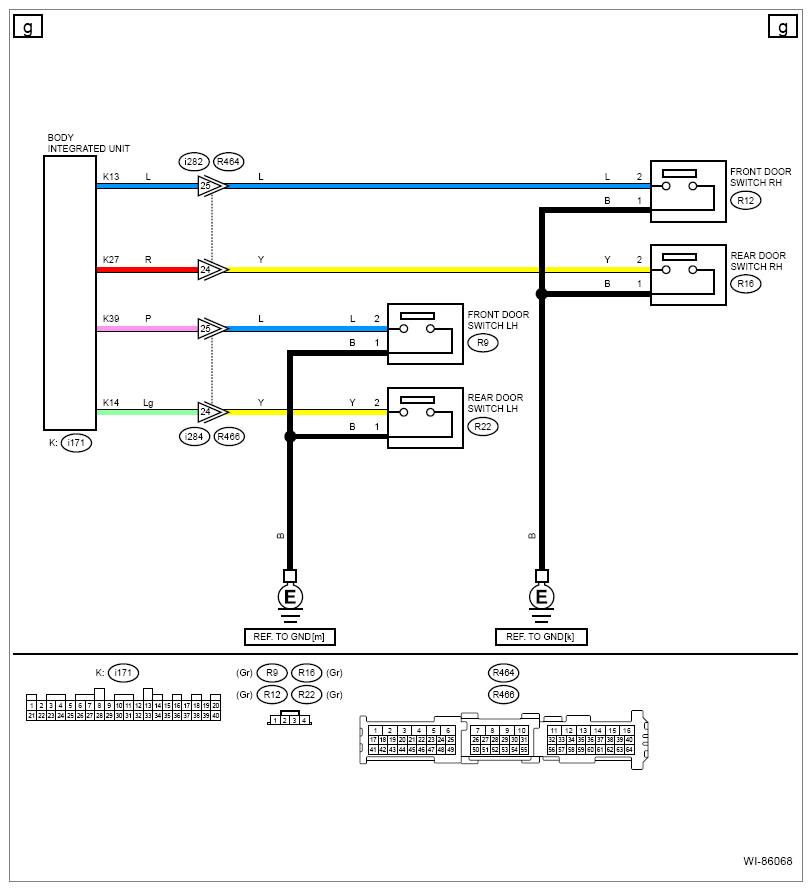

G13614137

Courtesy of SUBARU OF AMERICA, INC.

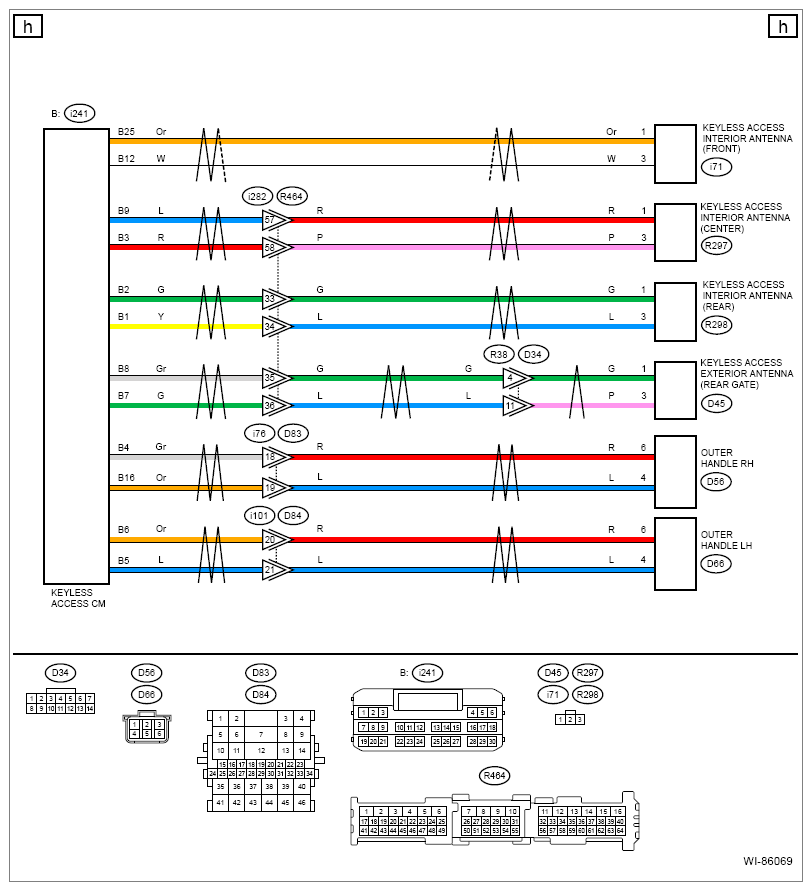

G13614138

Courtesy of SUBARU OF AMERICA, INC.

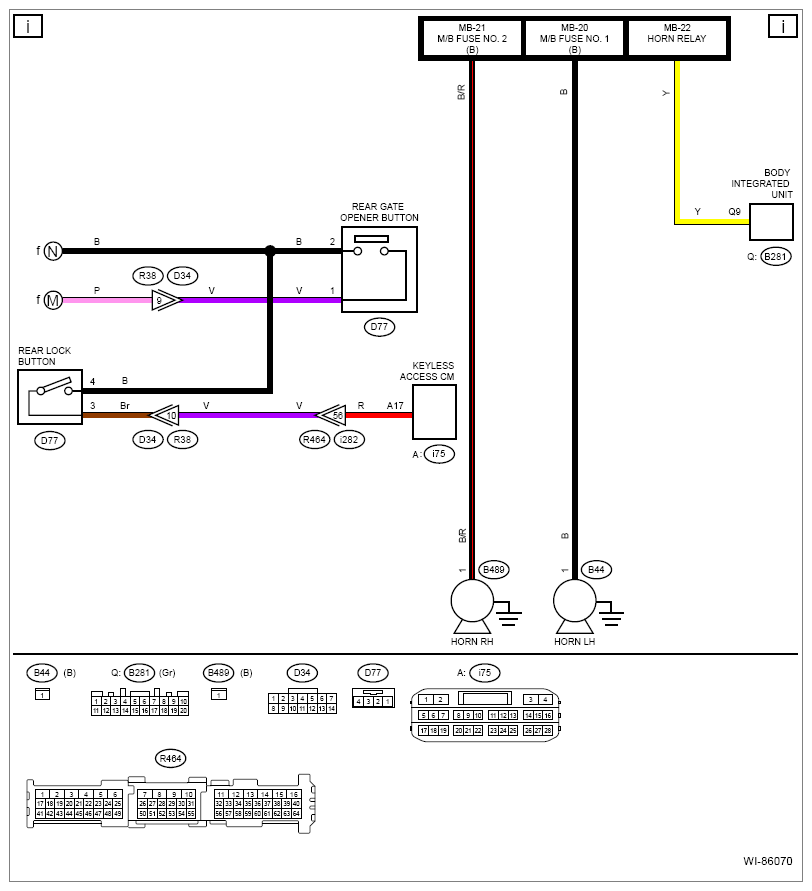

G13614139

Courtesy of SUBARU OF AMERICA, INC.

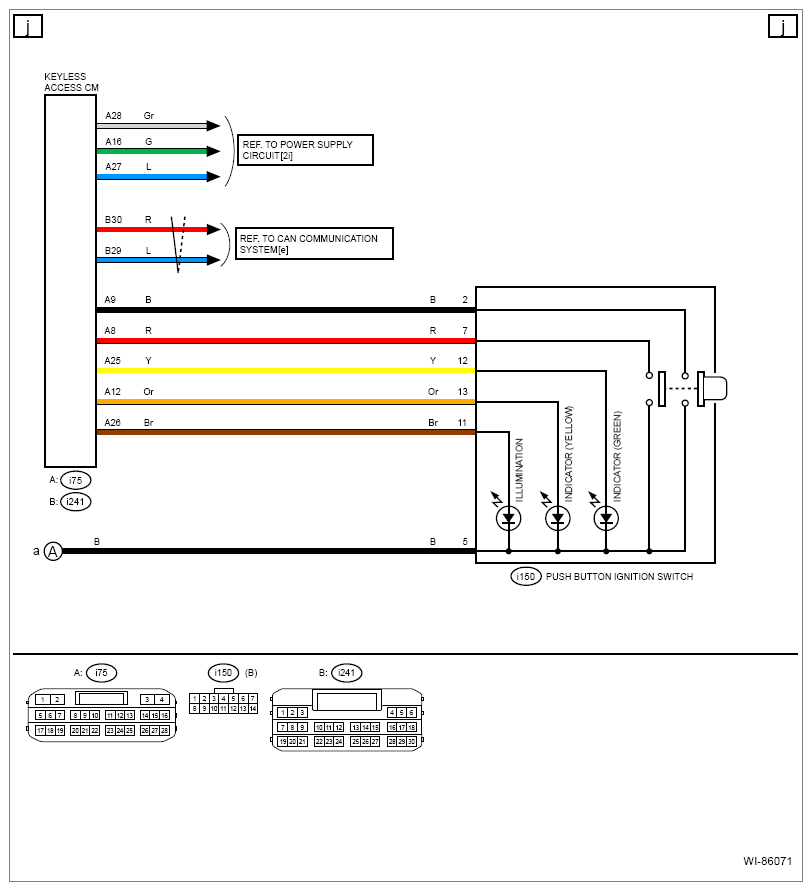

G13614140

Courtesy of SUBARU OF AMERICA, INC.

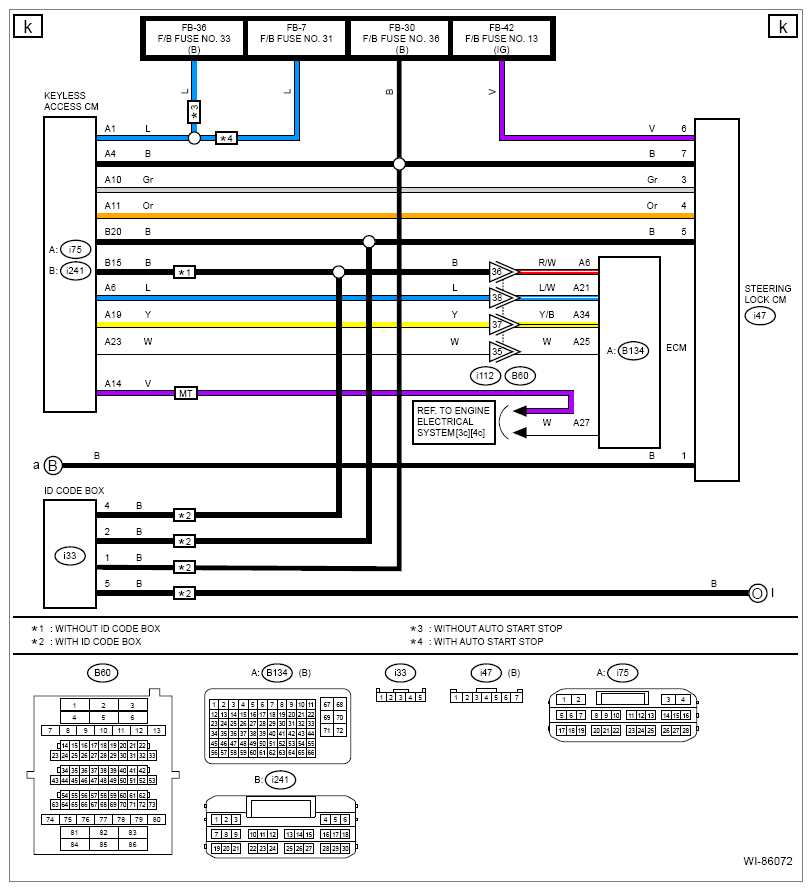

G13614141

Courtesy of SUBARU OF AMERICA, INC.

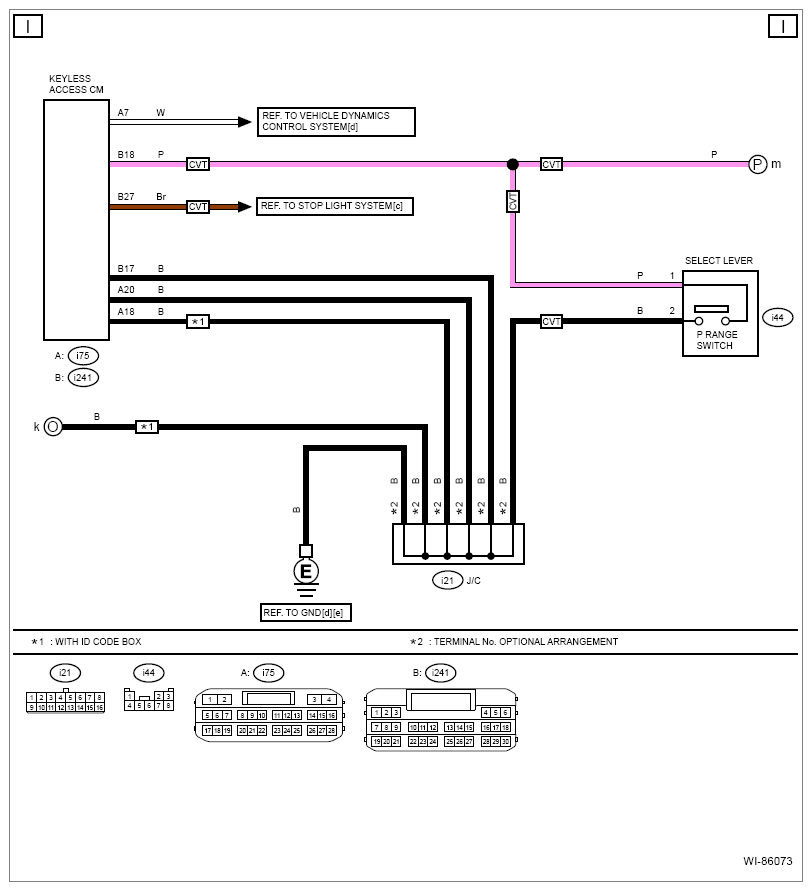

G13614142

Courtesy of SUBARU OF AMERICA, INC.

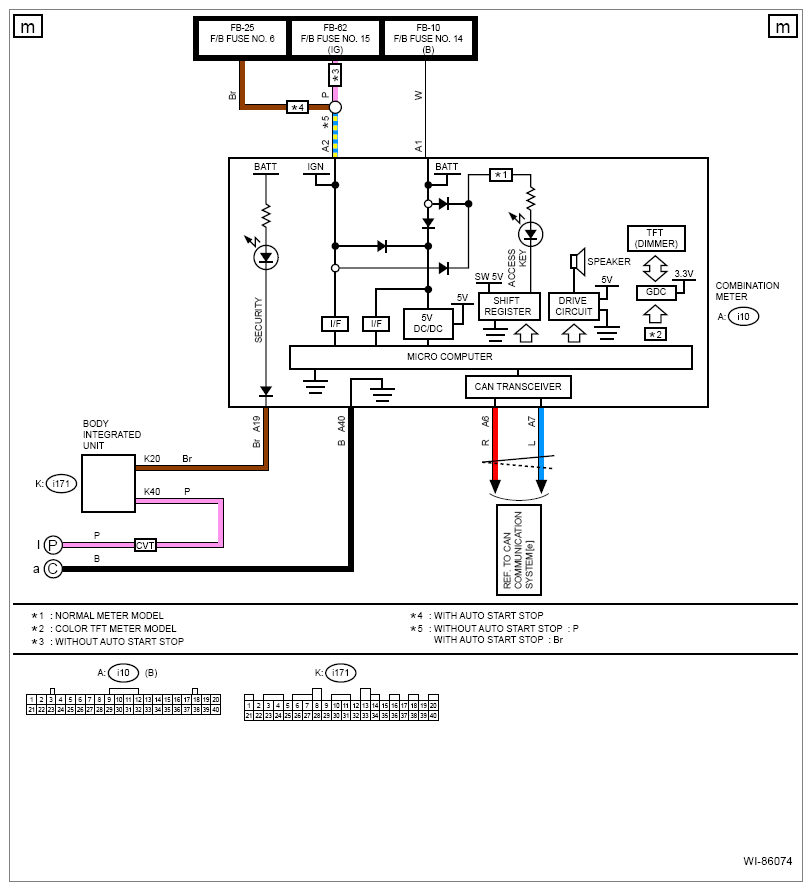

G13614143

Courtesy of SUBARU OF AMERICA, INC.
