Front Disc Brake

• Impreza model (15 inch)

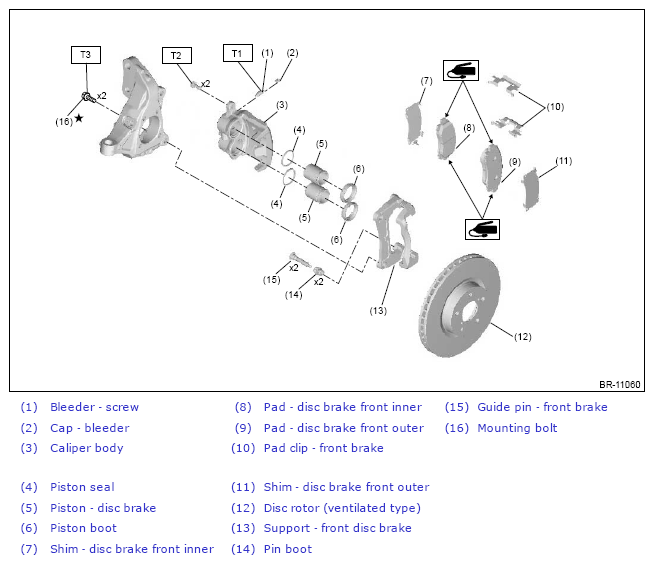

  Fig 1: Front Disc Brake Components (With Torque Specifications) - Impreza Model (15 Inch)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 8 (0.8, 5.9)

  T2: 27 (2.8, 19.9)

  T3: 120 (12.2, 88.5)

• Impreza model (16 inch)

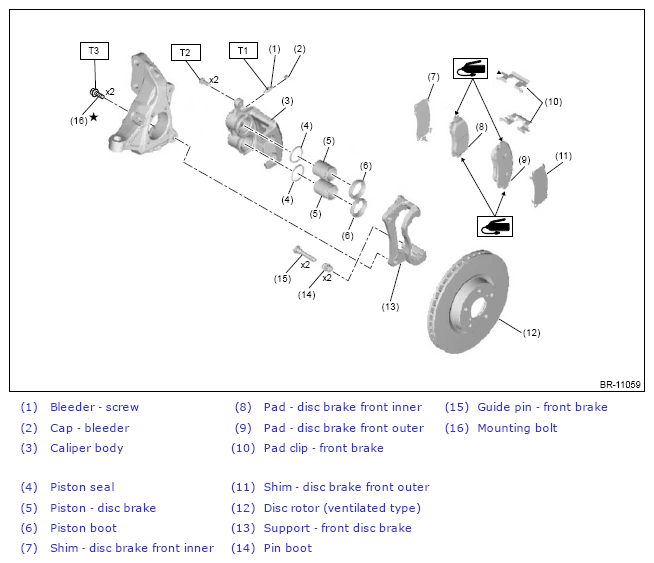

  Fig 2: Front Disc Brake Components (With Torque Specifications) - Impreza Model (16 Inch)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 8 (0.8, 5.9)

  T2: 27 (2.8, 19.9)

  T3: 120 (12.2, 88.5)

• Except for Impreza model

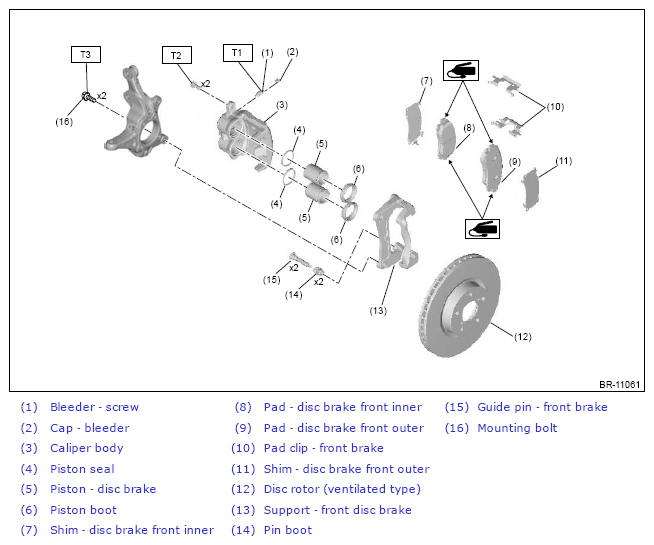

  Fig 3: Front Disc Brake Components (With Torque Specifications) - Except For Impreza Model

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 19.9)

T3: 135 (13.8, 99.6)
