Brake Pedal

• CVT model (except for hybrid model)

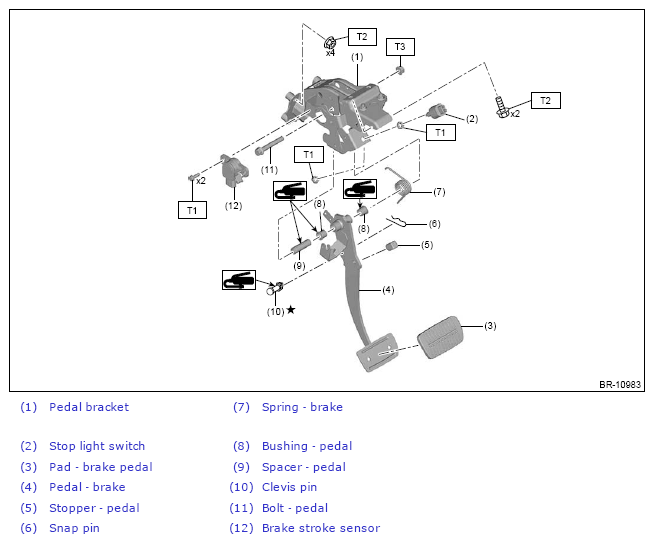

  Fig 1: Brake Pedal Components (With Torque Specifications) - CVT Model (Except For Hybrid Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 8 (0.8, 5.9)

  T2: 18 (1.8, 13.3)

  T3: 30 (3.1, 22.1)

• CVT model (hybrid model)

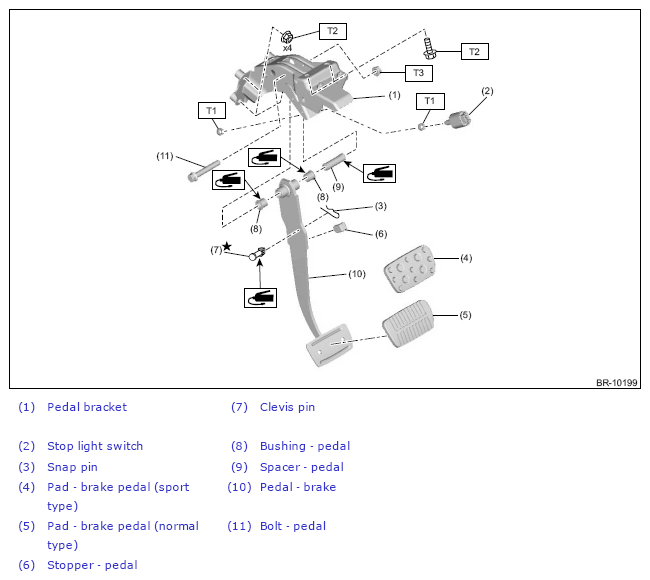

  Fig 2: Brake Pedal Components (With Torque Specifications) - CVT Model (Hybrid Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 8 (0.8, 5.9)

  T2: 18 (1.8, 13.3)

  T3: 30 (3.1, 22.1)

• MT model

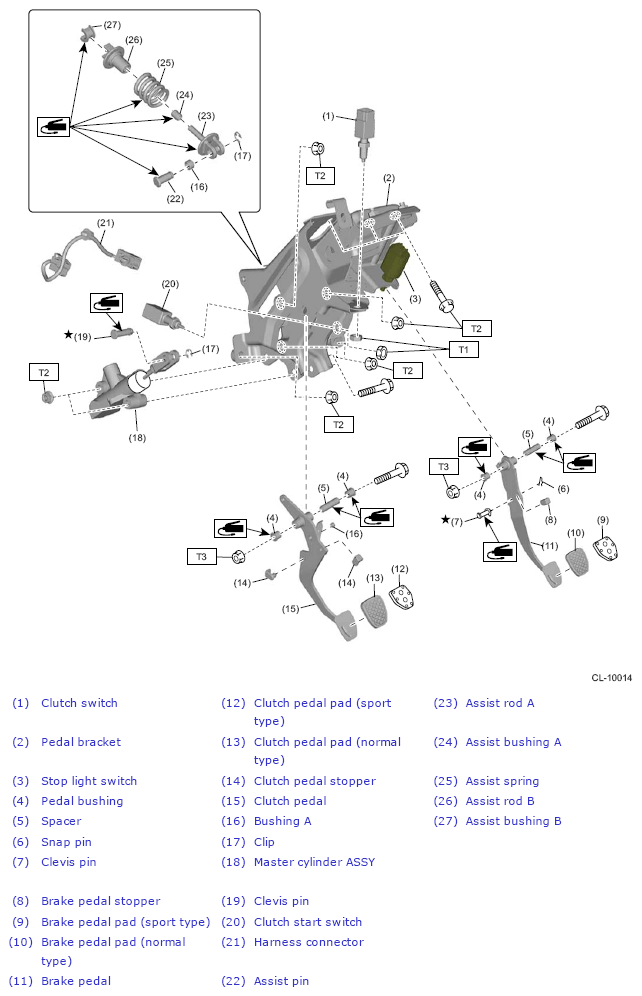

  Fig 3: Brake Pedal Components (With Torque Specifications) - MT Model

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 18 (1.8, 13.3)

T3: 30 (3.1, 22.1)
