Rear Height Sensor: Removal

CAUTION: Always remove the sensor assembly - headlight beam leveler before removing any parts related to the suspension.
Do not apply impact to the sensor assembly - headlight beam leveler or forcibly move the arm. Doing so may cause sensor damage and malfunction.
  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the sensor assembly - headlight beam leveler.
    CAUTION: Do not disassemble the sensor and lever.

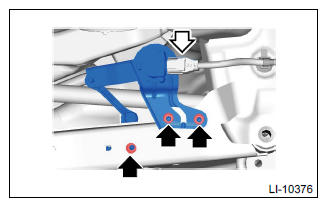

    1. Disconnect the connector.
    2. Remove the nuts, and remove the sensor assembly - headlight beam leveler.
      G11246006Courtesy of SUBARU OF AMERICA, INC.
