Combination Meter: Disassembly

CAUTION:
  • Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
  • Be sure not to touch the meter indicator needle.
  • Because LED components are used for all of warning lights and indicator lights, they are not removable from the meter - main assembly.
  1. Remove the glass - combination meter.
    1. Release the claws, and then remove the glass - combination meter.
      G11246166Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the visor - combination meter.

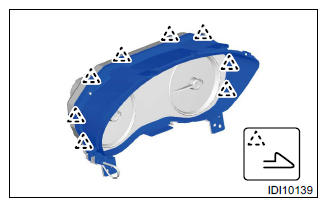

    1. Release the claws, and then remove the visor - combination meter.
      G11246167Courtesy of SUBARU OF AMERICA, INC.
