Section 1 (Automatic Transaxle (Service Information))
>>
Transmission Shift Switch
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

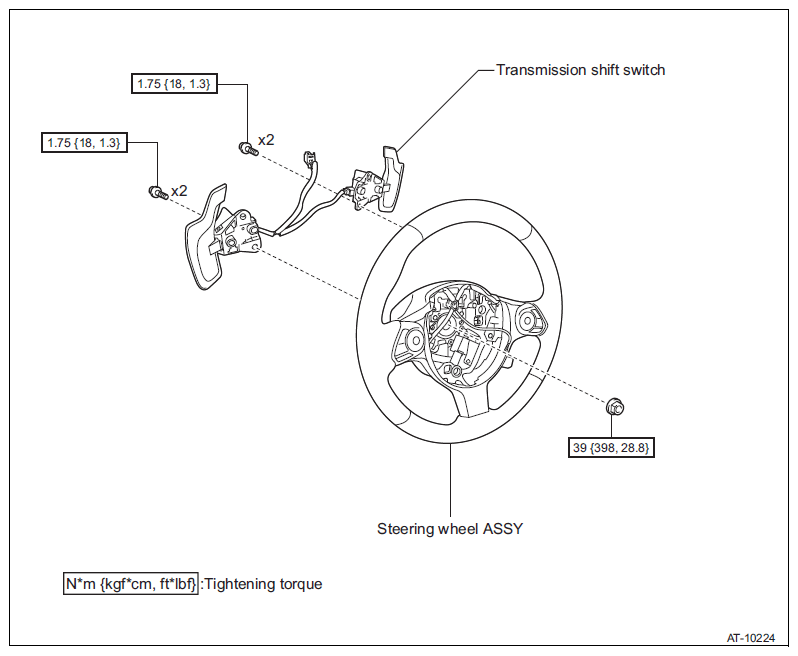

Fig 1: Transmission Shift Switch Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
