Intake Duct

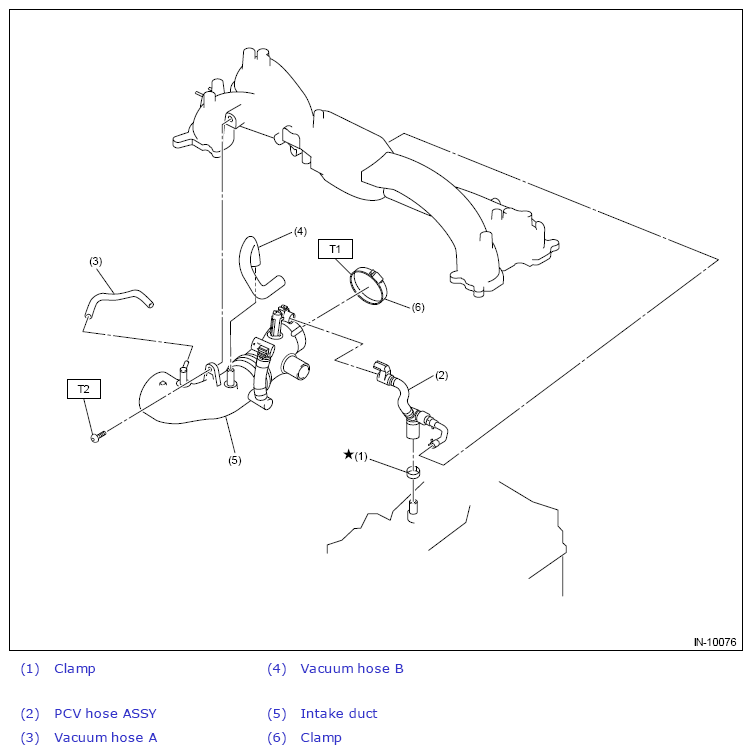

Fig 1: Intake Duct Of Components (With Torque Specifications)

G13257701

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3 (0.3, 2.2)

T2: 17 (1.7, 12.5)
