Sunload Sensor (Auto A/C Model): Removal

1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the grille - front defroster.

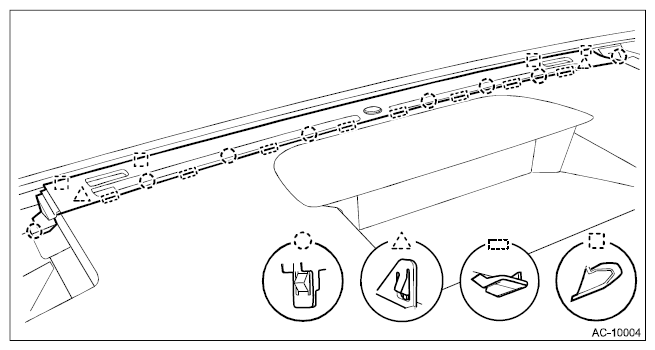

   1. Release the claws.
   2. Disconnect the connector and remove the grille - front defroster.
      • Model without EyeSight assist monitor

        Courtesy of SUBARU OF AMERICA, INC.

      • Model with EyeSight assist monitor

   Courtesy of SUBARU OF AMERICA, INC.

3. Release the claws and remove the sunload sensor.

Courtesy of SUBARU OF AMERICA, INC.
