In-Vehicle Sensor (Auto A/C Model): Removal

1. Disconnect the battery ground cable and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
   NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
2. Remove the cover assembly - instrument panel LWR driver INN. Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
3. Remove the cover switch - starter. (Model with keyless access with push button start)
   1. Disconnect the connector, and remove the aspirator hose.

      Courtesy of SUBARU OF AMERICA, INC.

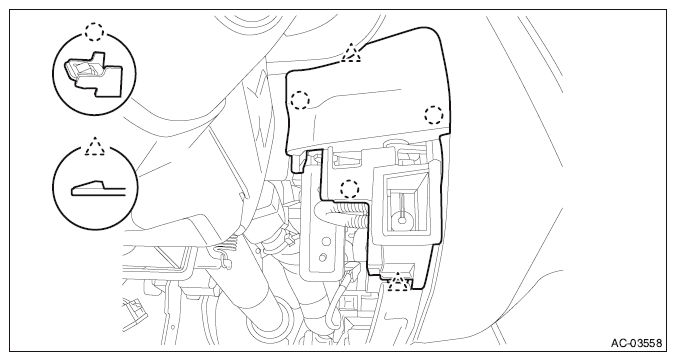

   2. Release the claws and remove the cover switch - starter.

   Courtesy of SUBARU OF AMERICA, INC.

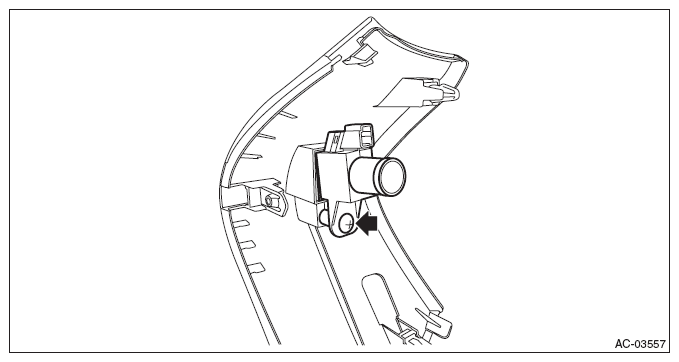

4. Remove the screws, and then remove the in-vehicle sensor.

Courtesy of SUBARU OF AMERICA, INC.
