Leak Check Valve Assembly: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the connector (A) from the leak check valve assembly.
  2. Remove the bolt (B) securing the leak check valve assembly to the leak check valve bracket.
  3. Remove the clamp B (C) which secures the leak check valve assembly, and remove the leak check valve assembly.
    G13258750Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness (A) from the leak check valve bracket.
  5. Rotate the clamp A (B) in the direction of the arrow and remove it from the leak check valve bracket.

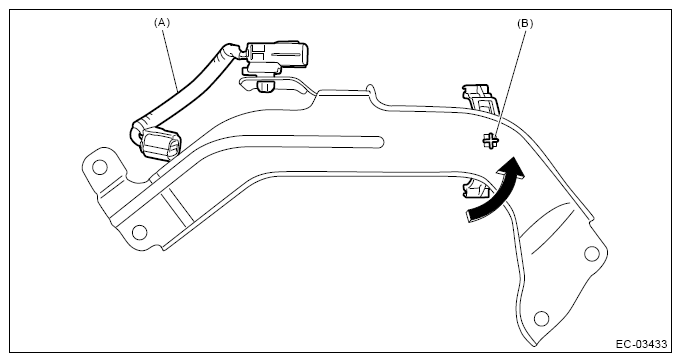

    G13258751Courtesy of SUBARU OF AMERICA, INC.
