CROSSMEMBER And Cushion Rubber

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the center exhaust pipe (rear). Refer to EXHAUST (EXCEPT FOR STI)>CENTER EXHAUST PIPE>REMOVAL .
  4. Remove the center exhaust cover.
    G10268620Courtesy of SUBARU OF AMERICA, INC.
  5. Set the transmission jack.
    CAUTION: Always support the transmission case with a transmission jack.

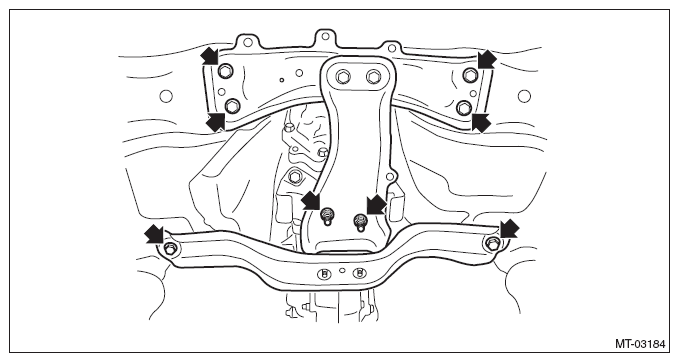

  6. Remove the front crossmember and the rear crossmember.
    G10268643Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the transmission cushion rubber.
