Shift Link Assembly

WARNING: This page is about a different variant/trim than selected.

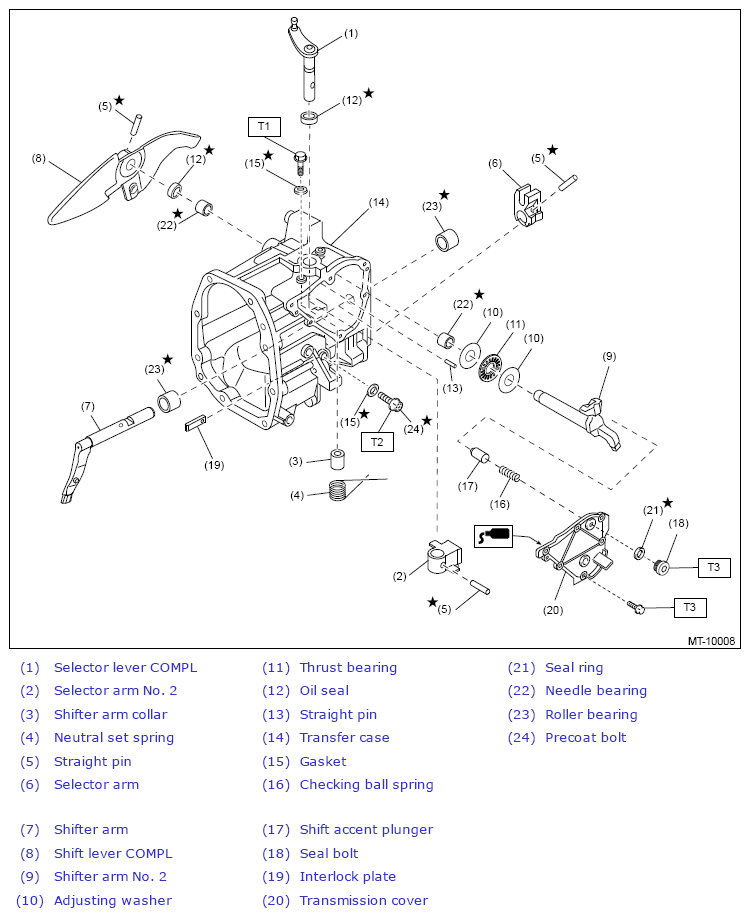

Fig 1: Shift Link Assembly Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 20 (2.0, 14.8)

T3: 25 (2.5, 18.4)
