Rear Drive Shaft: Adjustment
WARNING: This page is about a different variant/trim than selected.
NOTE:
When replacing the rear drive shaft or bearing, select the rear drive shaft shim.
- Install the rear drive shaft.

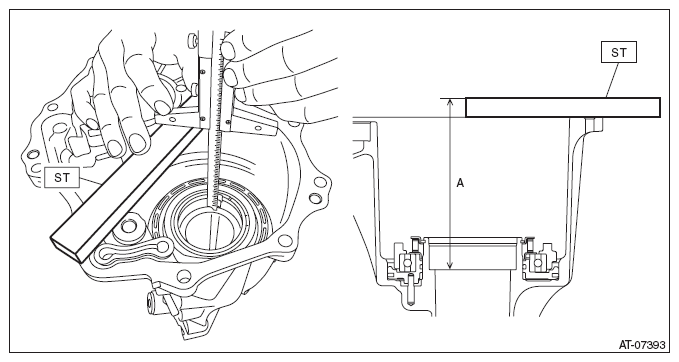

- Using the ST, measure the depth "A" from the end surface of ST to the contact surface of ball bearing.
ST 499575400 GAUGE - Using the ST, measure the height "B" from the mating surface of intermediate case to the end surface of ST.NOTE: Set the ST so that it does not ride on the bearing inner race.
ST 499575400 GAUGE - Obtain the thickness of rear drive shaft shim using the following formula to select none to four rear drive shaft shims.
T (mm) = A - B + 0.38 - (0.05 - 0.25)
[T (in) = A - B + 0.0149 - (0.002 - 0.01)]
T: Rear drive shaft shim thickness
A: Depth from the ST end surface to the ball bearing contact surface
B: Height from the mating surface of the intermediate case to the ST end face
0.38 mm (0.0149 in): Thickness of gasket
0.05 - 0.25 mm (0.002 - 0.01 in): Clearance
Rear drive shaft shim Part No. Thickness mm (in) 33281AA040 0.2 (0.008) 33281AA050 0.5 (0.020) 33281AA060 0.3 (0.012)
