Parking Pawl: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Shift the range select lever to "N" range.
  3. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>REMOVAL .

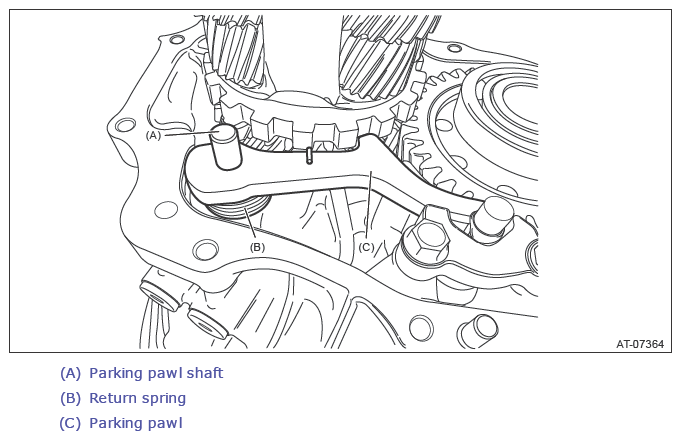

  4. Remove the parking pawl shaft, return spring and parking pawl.
    G13261015Courtesy of SUBARU OF AMERICA, INC.
