Center Differential Carrier: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly from the vehicle. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>AUTOMATIC TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the extension case. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>REMOVAL .
  3. Remove the rear drive shaft. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>REMOVAL .
  4. Remove the transfer clutch. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>REMOVAL .
  5. Remove the center differential carrier assembly.
    G10268229Courtesy of SUBARU OF AMERICA, INC.

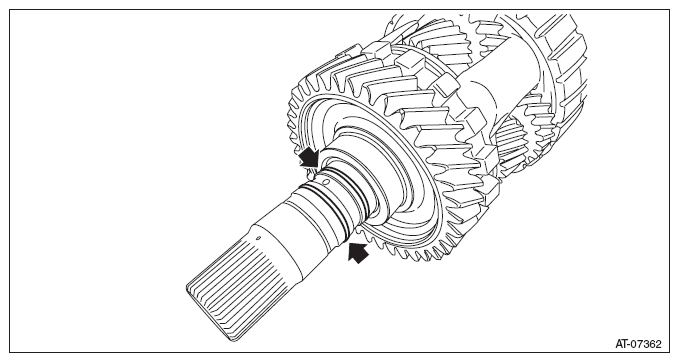

  6. Remove the seal rings.
    G10268230Courtesy of SUBARU OF AMERICA, INC.
