Timing Chain & Camshaft

WARNING: This page is about a different variant/trim than selected.

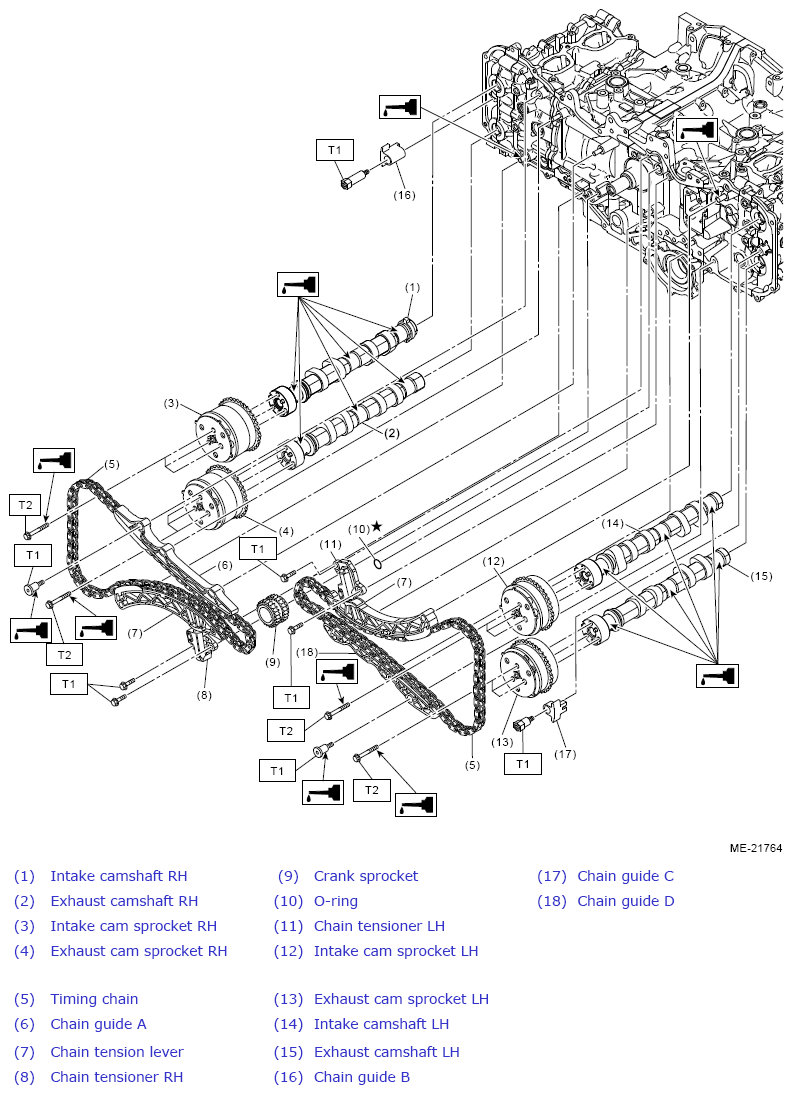

Fig 1: Components Of Timing Chain And Camshaft (With Torque Specification)
G13258908Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 18 (1.8, 13.3)
