Cylinder Head RH

WARNING: This page is about a different variant/trim than selected.
  1. Set the part so that the cylinder block RH is on the upper side.
  2. Clean the bolt holes in the cylinder block RH.
    CAUTION: To avoid erroneous tightening of the bolts, clean out the bolt holes sufficiently by blowing with compressed air to eliminate engine coolant etc.
  3. Apply liquid gasket to both sides of the cylinder head gasket RH as shown in the figure.
    NOTE:
    • Use a new cylinder head gasket RH.
    • Before applying liquid gasket, degrease the mating surface of cylinder blocks RH and cylinder head RH.
    • Install within 5 min. after applying liquid gasket.

    Liquid gasket:

    THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

    Liquid gasket applying diameter:

    3±1 mm (0.1181±0.0394 in)

    G13259223Courtesy of SUBARU OF AMERICA, INC.
  4. Attach the cylinder head gasket RH.
    NOTE: Check that liquid gasket RH is squeezed out from the cylinder head gasket.
  5. Install the cylinder head RH to the cylinder block RH.
    CAUTION: Be careful not to scratch the mating surface of cylinder head RH and cylinder block RH.
    1. Clean the cylinder head bolt threads and apply sufficient engine oil to the washer and cylinder head bolts threads.
    2. Mount the cylinder head RH onto the cylinder block RH, and tighten all bolts with a torque of 20 N.m (2.0 kgf-m, 14.8 ft-lb) in numerical order as shown in the figure.
      Fig 1: Cylinder Head RH Bolts With (Tightening Sequence)
      G11267009Courtesy of SUBARU OF AMERICA, INC.
    3. Tighten all cylinder head bolts further with a torque of 100 N.m (10.2 kgf-m, 73.8 ft-lb) in numerical order as shown in the figure.
      CAUTION: If the bolt makes stick-slip sound during tightening, repeat the procedure from step  1. In that case, the cylinder head gasket RH can be reused. But it is necessary to remove liquid gasket completely from cylinder block RH, cylinder head RH and cylinder head gasket RH and re-apply to them.
      Fig 2: Cylinder Head Bolts RH With (Tightening Sequence)
      G11267010Courtesy of SUBARU OF AMERICA, INC.
    4. Loosen all cylinder head bolts by 360° in the numerical order as shown in the figure.
      Fig 3: All Cylinder Head Bolts RH With (Loosening Sequence)
      G11267006Courtesy of SUBARU OF AMERICA, INC.
    5. Tighten all bolts with torque of 20 N.m (2.0 kgf-m, 14.8 ft-lb) in numerical sequence as shown in the figure.
      Fig 4: Cylinder Head Bolts RH With (Tightening Sequence)
      G11267010Courtesy of SUBARU OF AMERICA, INC.
    6. Tighten all cylinder head bolts with a torque of 42 N.m (4.3 kgf-m, 31.0 ft-lb) in numerical order as shown in the figure.
      Fig 5: All Cylinder Head Bolts RH With (Tightening Sequence)
      G11267010Courtesy of SUBARU OF AMERICA, INC.
    7. Using angle gauge, tighten all cylinder head bolts with specified angle in numerical order as shown in the figure.

      Tightening angle:

      100°±2°

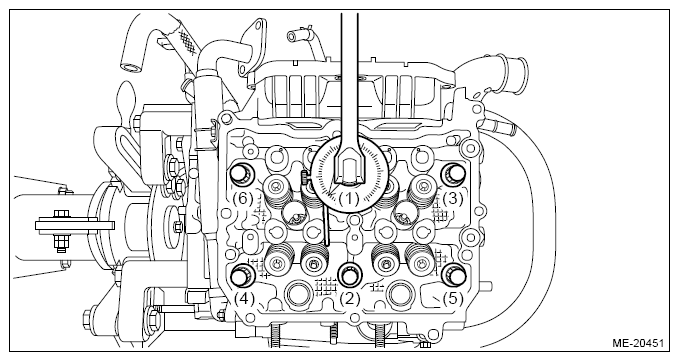

      Fig 6: All Cylinder Head Bolts RH With (Tightening Sequence)
      G11267014Courtesy of SUBARU OF AMERICA, INC.
    8. Using angle gauge, tighten the cylinder head bolts (2 places) with specified angle in numerical order as shown in the figure.

      Tightening angle:

      100°±2°

      Fig 7: Cylinder Head Bolts (2 Places) RH With (Tightening Sequence)
      G11267015Courtesy of SUBARU OF AMERICA, INC.
    9. Using angle gauge, tighten the cylinder head bolts (4 places) with specified angle in numerical order as shown in the figure.
      NOTE: After tightening, if the liquid gasket is squeezed out onto the seal surface of the chain cover, completely remove any squeezed-out liquid gasket.

      Tightening angle:

      50°±2°

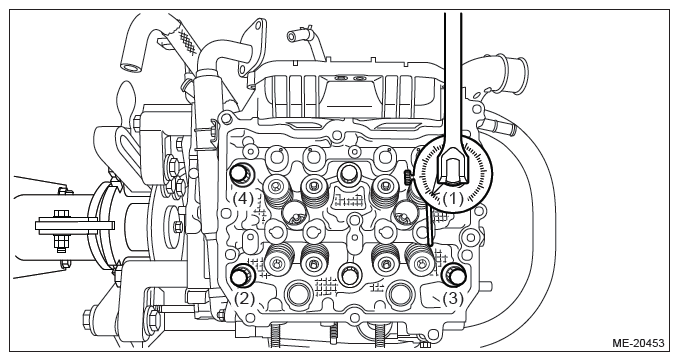

    Fig 8: Cylinder Head Bolts (4 Places) RH With (Tightening Sequence)
    G11267016Courtesy of SUBARU OF AMERICA, INC.
  6. Set the part so that the installation surface of the intake manifold is on the upper side.
  7. When the cylinder head RH has been disassembled
    NOTE: When the cylinder head RH has been disassembled, perform the following steps also.
    1. Install the EGR cooler. Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (EXCEPT FOR STI)>EGR COOLER>INSTALLATION .
    2. Install the fuel injector RH. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>FUEL INJECTOR>INSTALLATION>FUEL INJECTOR RH .
    3. Install the air intake adapter RH. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>TUMBLE GENERATOR VALVE ASSEMBLY>INSTALLATION .
  8. Install the high-pressure fuel delivery pipe assembly. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSY .
  9. Install the cam carrier RH. Refer to MECHANICAL (EXCEPT FOR STI)>CAM CARRIER>INSTALLATION>CAM CARRIER RH .
  10. Install the engine wiring harness. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>ENGINE WIRING HARNESS>INSTALLATION .
  11. Install the engine to the vehicle. Refer to MECHANICAL (EXCEPT FOR STI)>ENGINE ASSEMBLY>INSTALLATION .
