Engine Intake System (Induction) And Turbocharger (STI): Intercooler: Installation

Install the intercooler stay RH No. 1, and install the clip (A) which secures the engine harness to the intercooler stay RH No. 1.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Attach the air duct hose to the throttle body.
Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Set the intercooler to the vehicle, and install the bolts securing the intercooler to the intercooler stay RH No. 1.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten the bolt securing the intercooler stay LH to the intake manifold.

Courtesy of SUBARU OF AMERICA, INC.
Install the bolts which secure the intercooler to the intercooler stay LH, and install the brake booster vacuum hose to the clip (A).
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolt securing the intercooler stay LH to the intake manifold.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

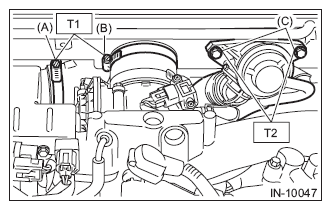

Tighten the clamp (A) which secures the intake duct to the turbocharger.
Tighten the clamp (B) which secures the air duct hose to the intercooler.
Install the bolts (C) which secures the air by-pass valve to the intercooler, and install the air by-pass valve.
NOTE: Use a new gasket.

Tightening torque:

T1: 3 N.m (0.3 kgf-m, 2.2 ft-lb)

T2: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the PCV hose (B) to PCV pipe assembly.
NOTE: Make sure that the leak diagnosis connector is connected securely.
Connect the connector (A) to the PCV pipe assembly.

Courtesy of SUBARU OF AMERICA, INC.
Connect the PCV hoses (A) and (B) to the PCV pipe assembly.
NOTE: Make sure that the leak diagnosis connector is connected securely.

Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground terminal.
