Secondary Air Combination Valve LH

Install in the reverse order of removal.

NOTE: Use a new gasket.

Tightening torque:

T1: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)

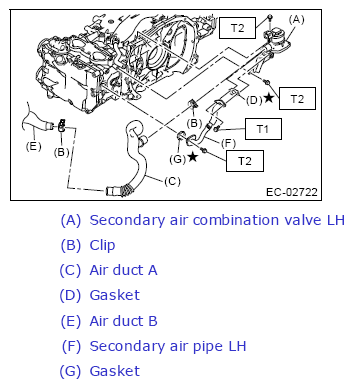

G13257692Courtesy of SUBARU OF AMERICA, INC.
