OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations
>>
Vehicle Dynamics Control System
>>

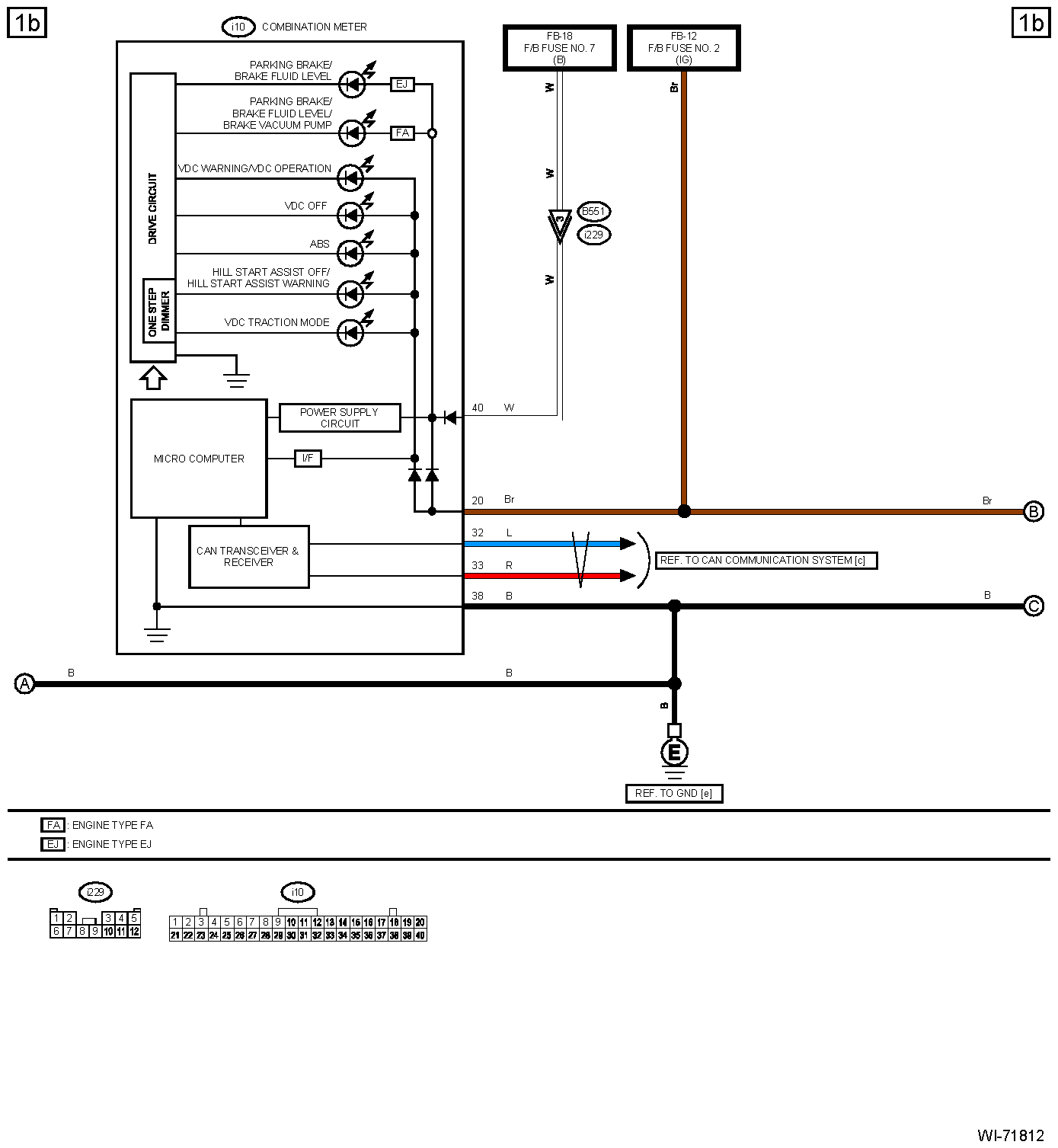

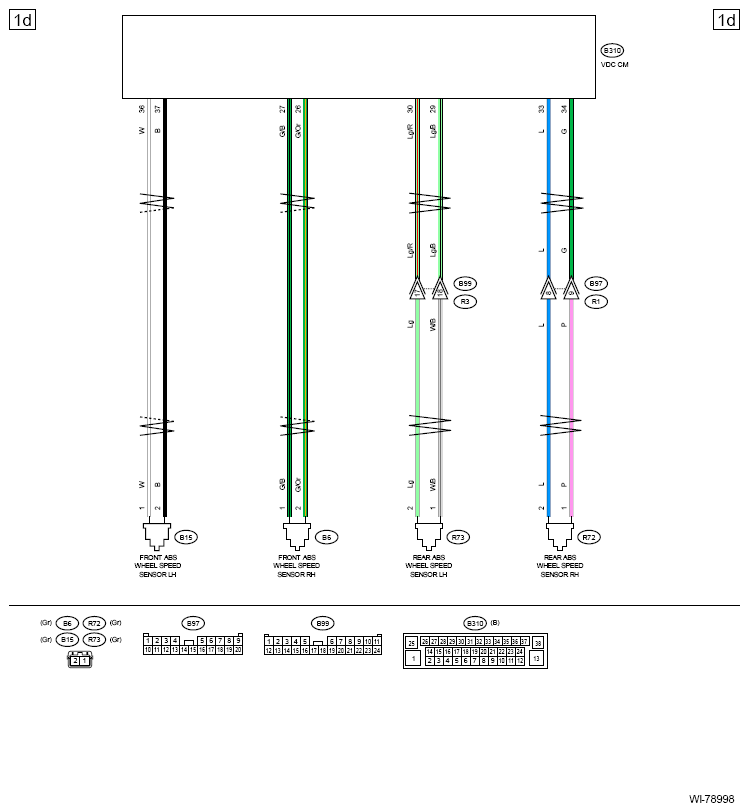

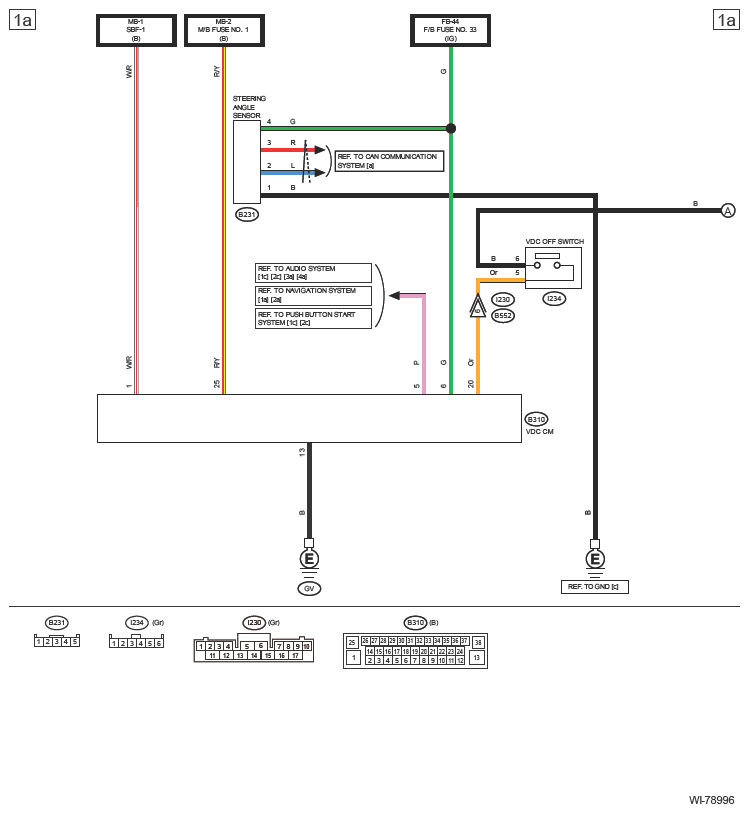

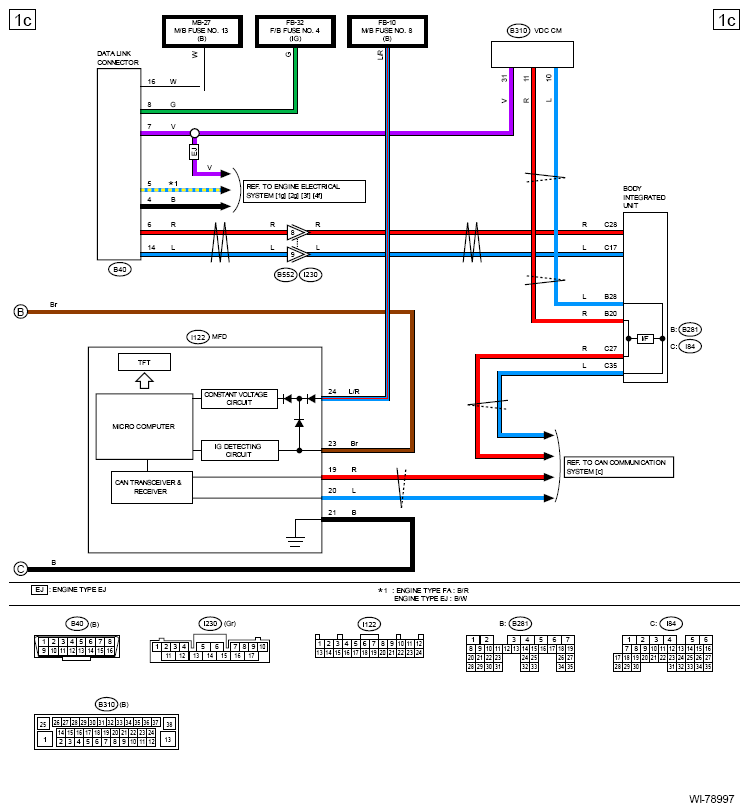

Wiring Diagram
>>
Without EyeSight
Without EyeSight
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
