CVT Control System: Wiring Diagram

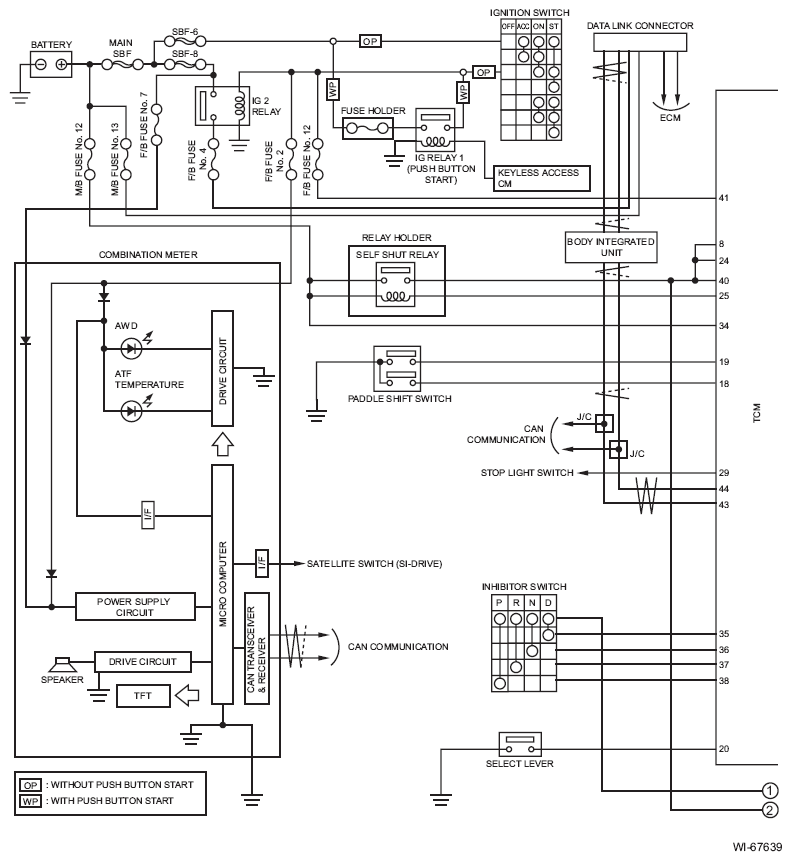

G11581944Courtesy of SUBARU OF AMERICA, INC.

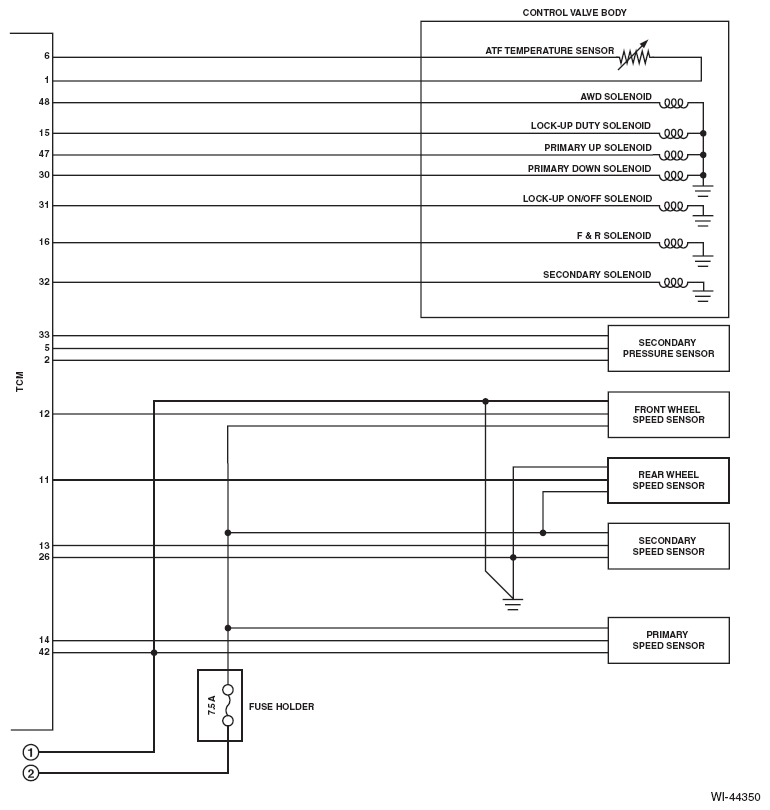

G11581945Courtesy of SUBARU OF AMERICA, INC.

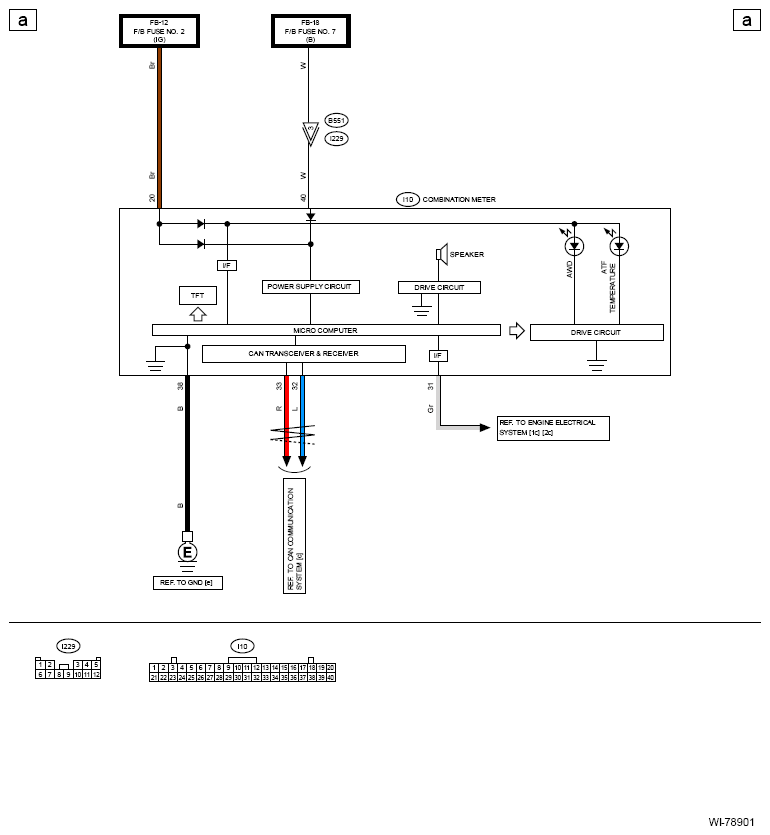

G13263528Courtesy of SUBARU OF AMERICA, INC.

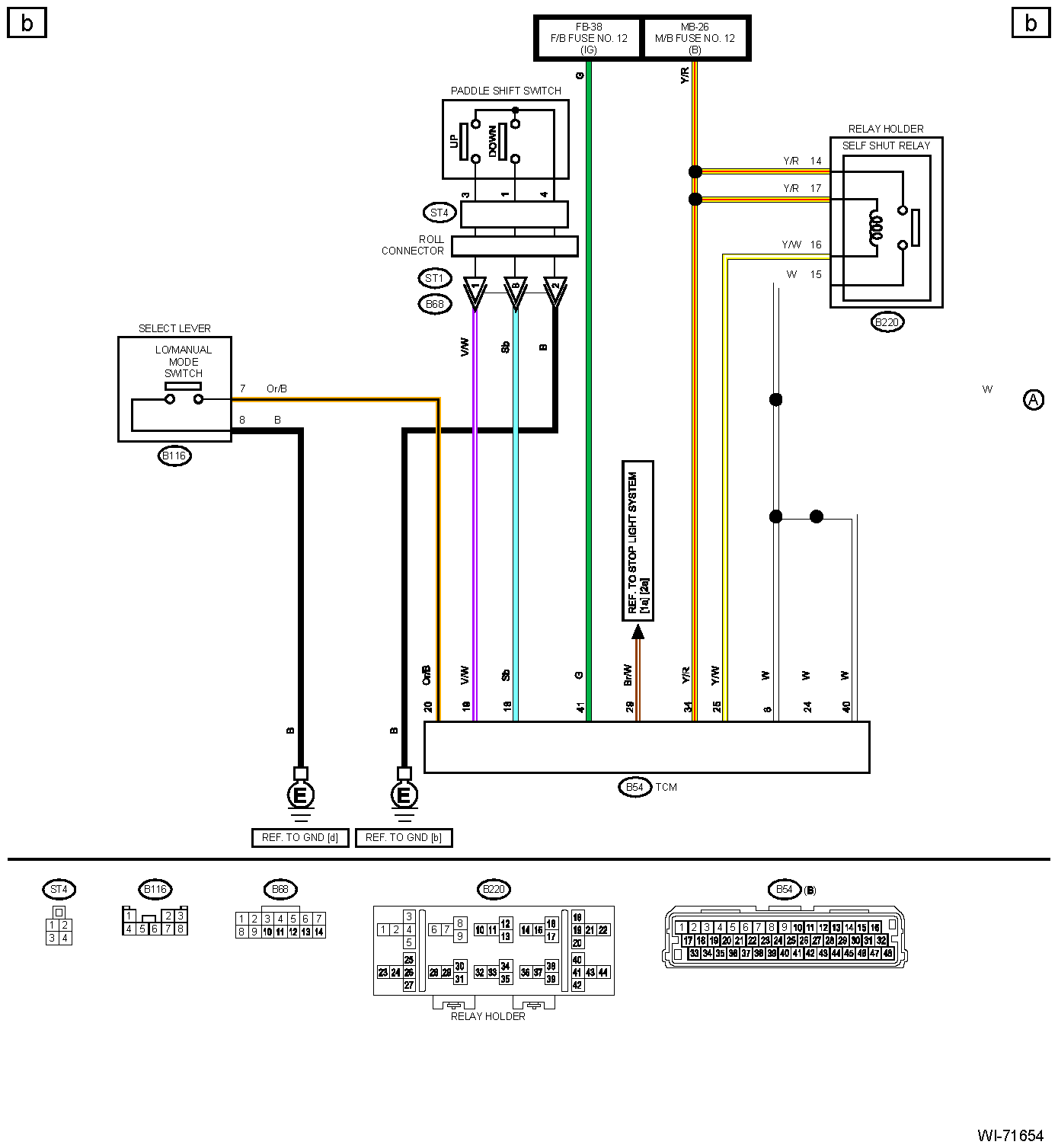

G12456364Courtesy of SUBARU OF AMERICA, INC.

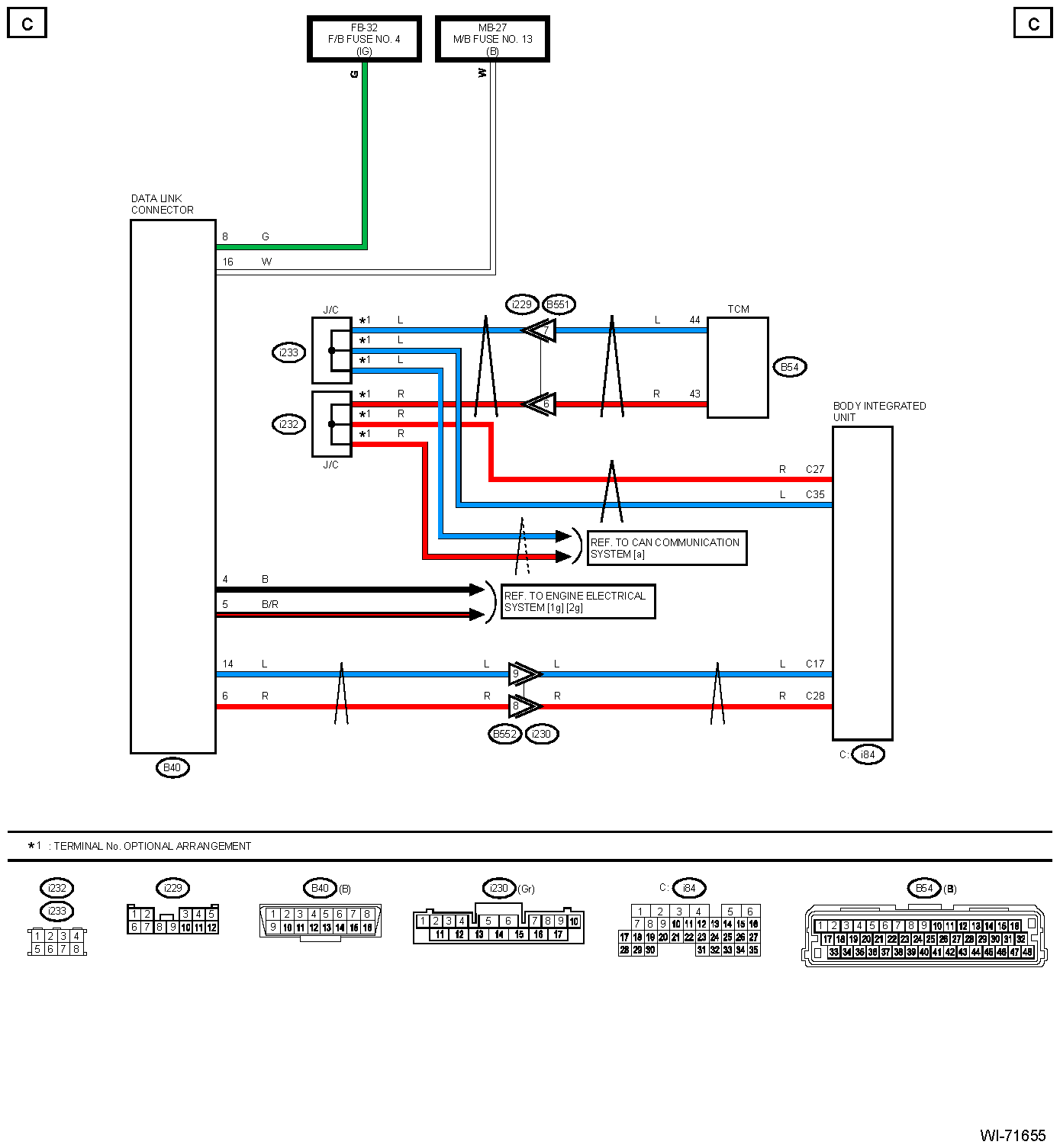

G12456365Courtesy of SUBARU OF AMERICA, INC.

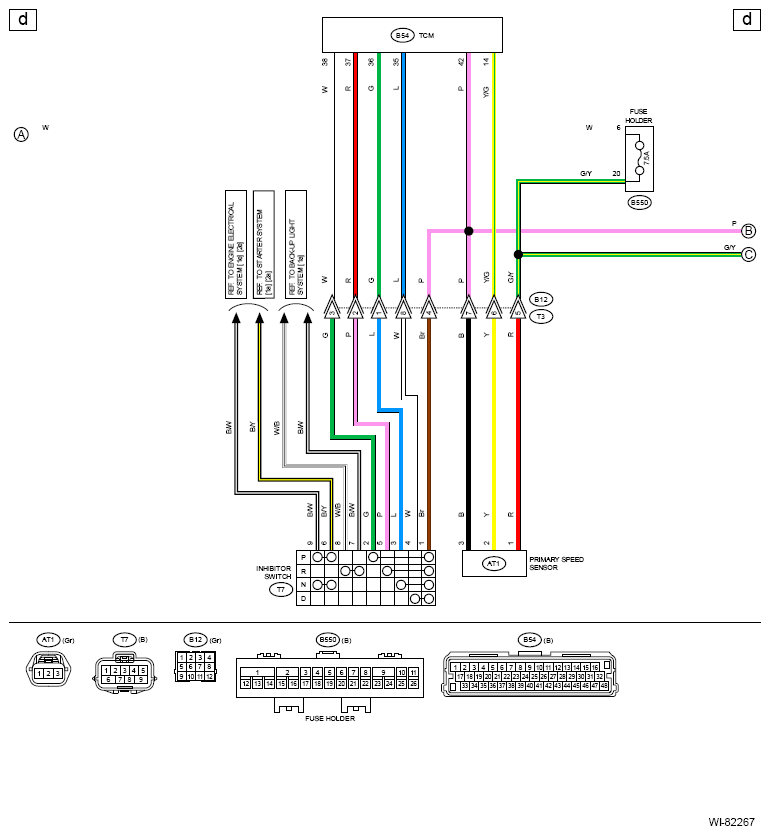

G13263531Courtesy of SUBARU OF AMERICA, INC.

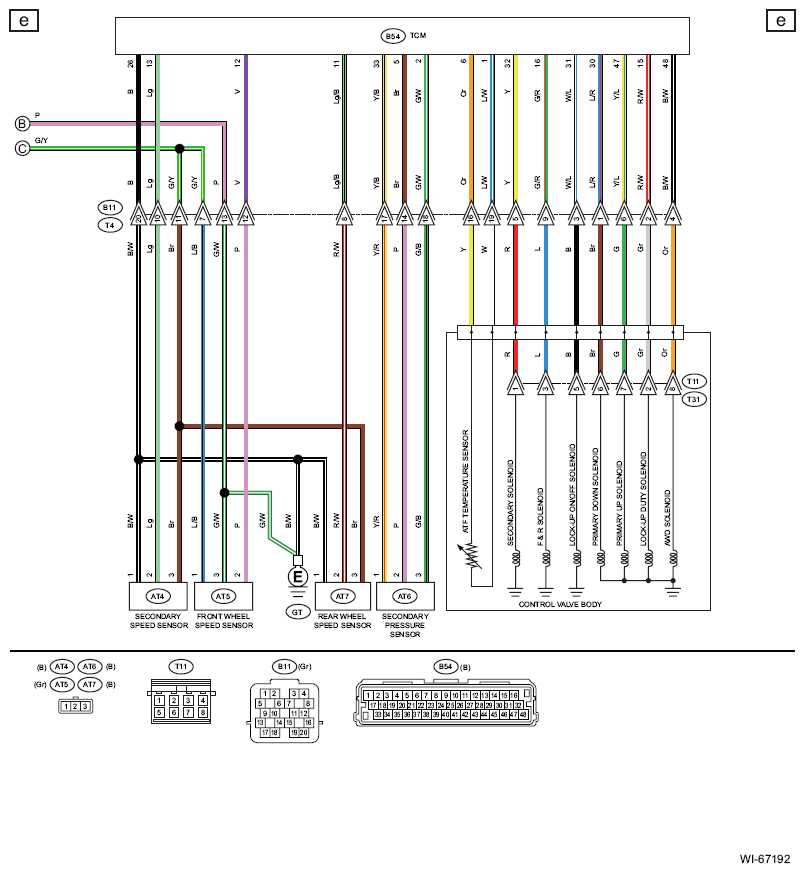

G11581950Courtesy of SUBARU OF AMERICA, INC.
