CAN Communication System: Wiring Diagram

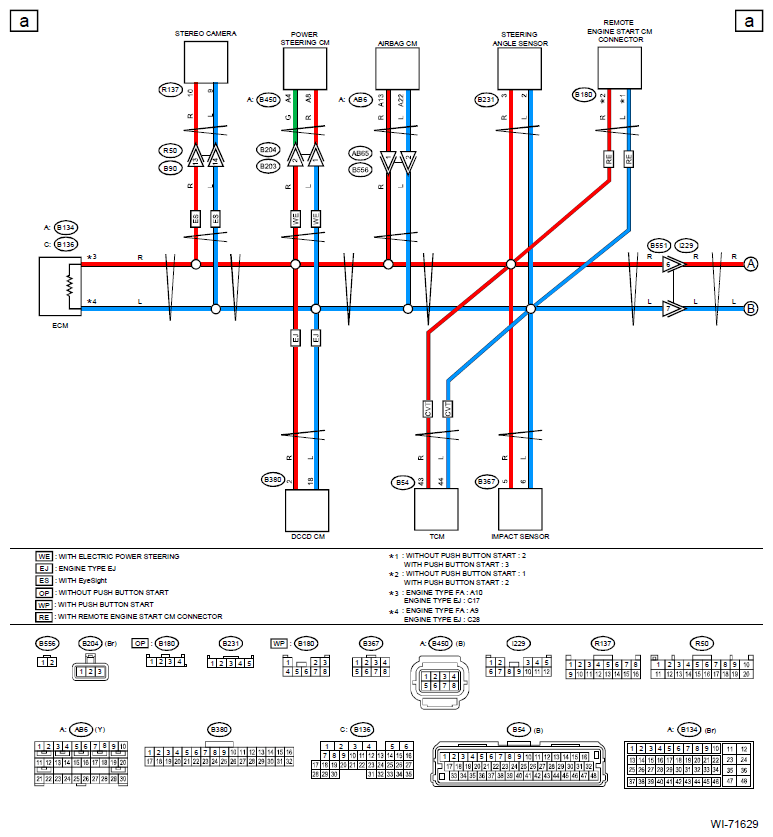

G12456331

Courtesy of SUBARU OF AMERICA, INC.

G12456332

Courtesy of SUBARU OF AMERICA, INC.

G13263498

Courtesy of SUBARU OF AMERICA, INC.
