Trunk Room Trim: Removal

  1. Remove the clips, and remove the trim panel - trunk lid.
    G10299161Courtesy of SUBARU OF AMERICA, INC.
  2. Tilt the backrest assembly forward.
  3. Remove the mat - trunk.

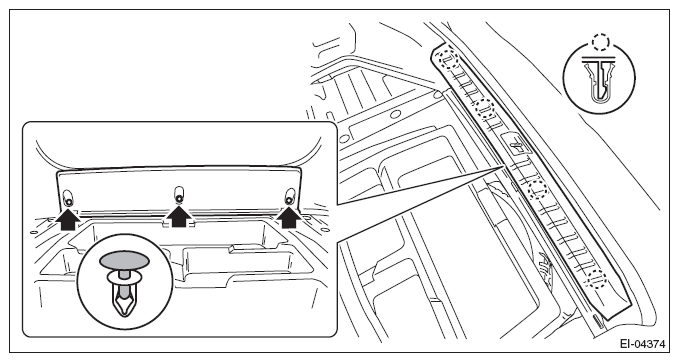

  4. Remove the trim panel - trunk rear.
    1. Remove the clip.
    2. Release the claws, and remove the trim panel - trunk rear.
      G10269504Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the clips, and remove the trim panel - trunk side.
    G08319501Courtesy of SUBARU OF AMERICA, INC.
