Mud Guard: Removal

  1. Lift up the vehicle.
  2. Remove the wheels.
  3. Remove the spoiler assembly - side.

    Refer to EXTERIOR/INTERIOR TRIM>SIDE GARNISH & SIDE SPOILER>REMOVAL .

  4. Remove the under cover - front.

    Refer to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

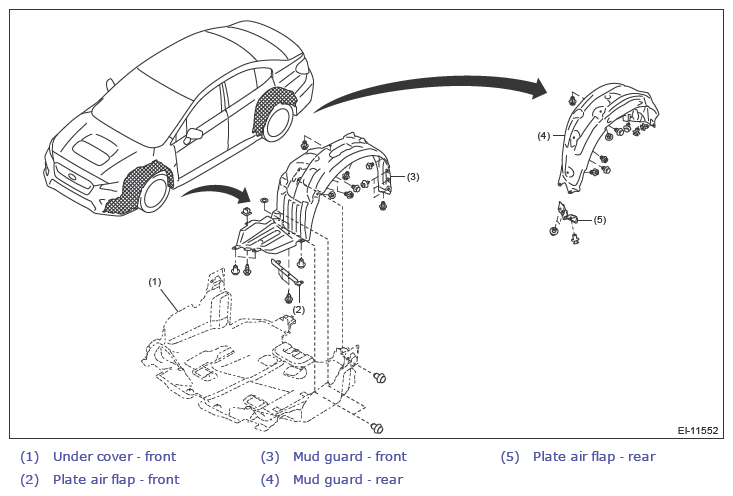

  5. Remove the screws and clips to remove the mud guard.
    G13263099Courtesy of SUBARU OF AMERICA, INC.
