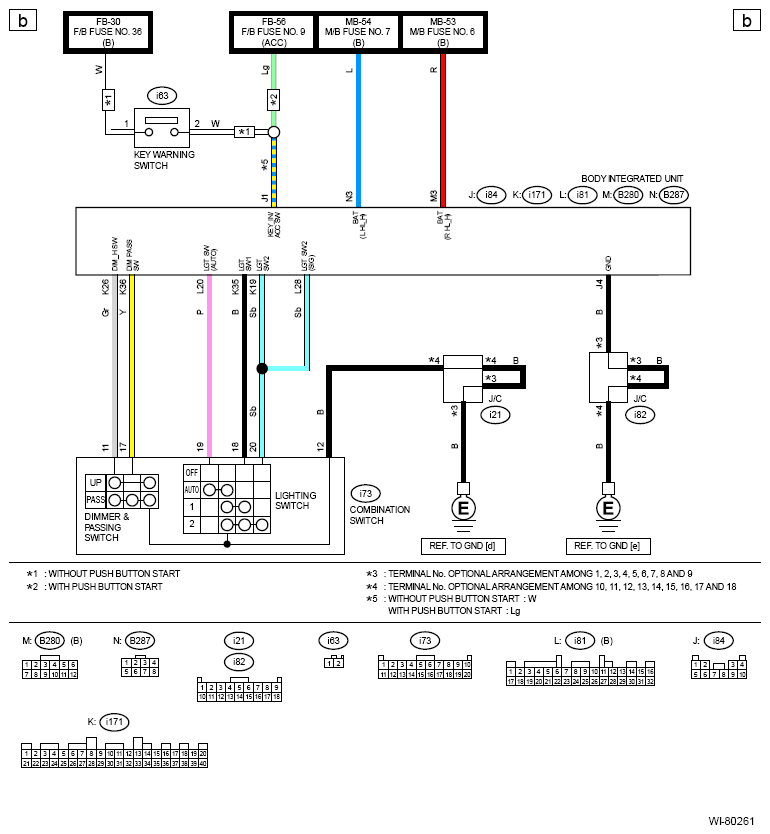

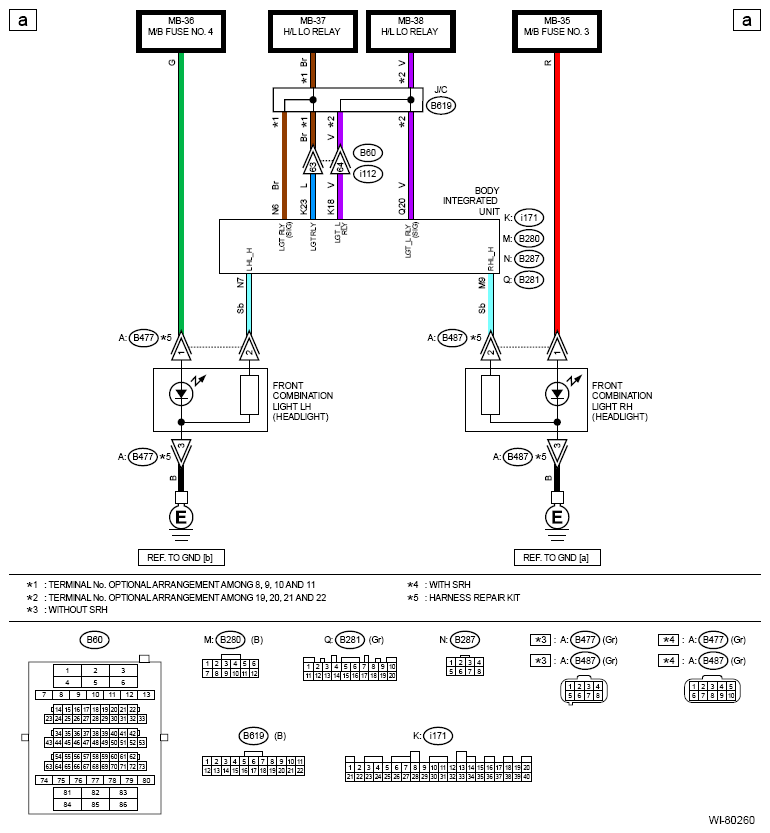

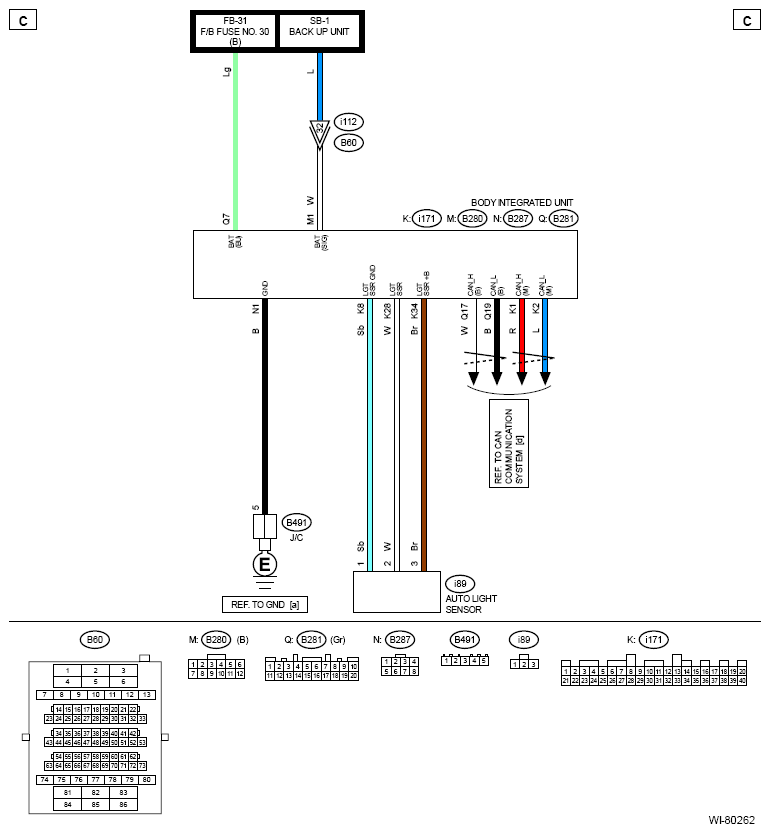

Home >> Subaru >> 2019 >> Forester Sport >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Headlight System >> Wiring Diagram
