Ambient Sensor: Inspection
- Visually check the ambient sensor for dirt or damage, and clean or replace as necessary.

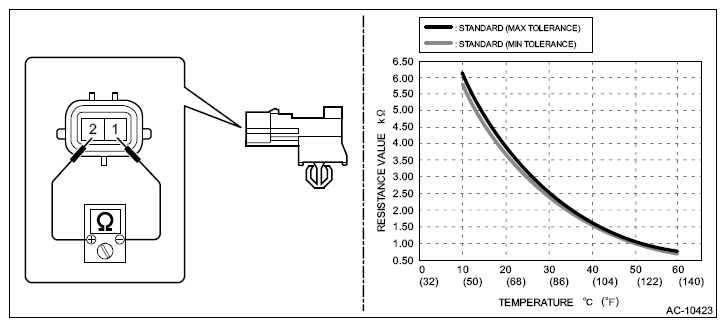

- Measure the resistance between connector terminals.CAUTION: During inspection, be careful not to touch the sensor end in order to avoid misjudgment due to body temperature.
Preparation tool:
Circuit tester
Terminal No. Inspection conditions Standard 1 - 2 10°C (50°F) 5.82 - 6.18 kΩ 15°C (59°F) 4.58 - 4.87 kΩ 20°C (68°F) 3.64 - 3.86 kΩ 25°C (77°F) 2.91 - 3.09 kΩ 30°C (86°F) 2.35 - 2.49 kΩ 35°C (95°F) 1.9 - 2.02 kΩ 40°C (104°F) 1.56 - 1.65 kΩ 45°C (113°F) 1.28 - 1.36 kΩ 50°C (122°F) 1.06 - 1.12 kΩ 55°C (131°F) 0.88 - 0.93 kΩ 60°C (140°F) 0.74 - 0.78 kΩ - Replace the ambient sensor if the inspection result is not within the standard value.
