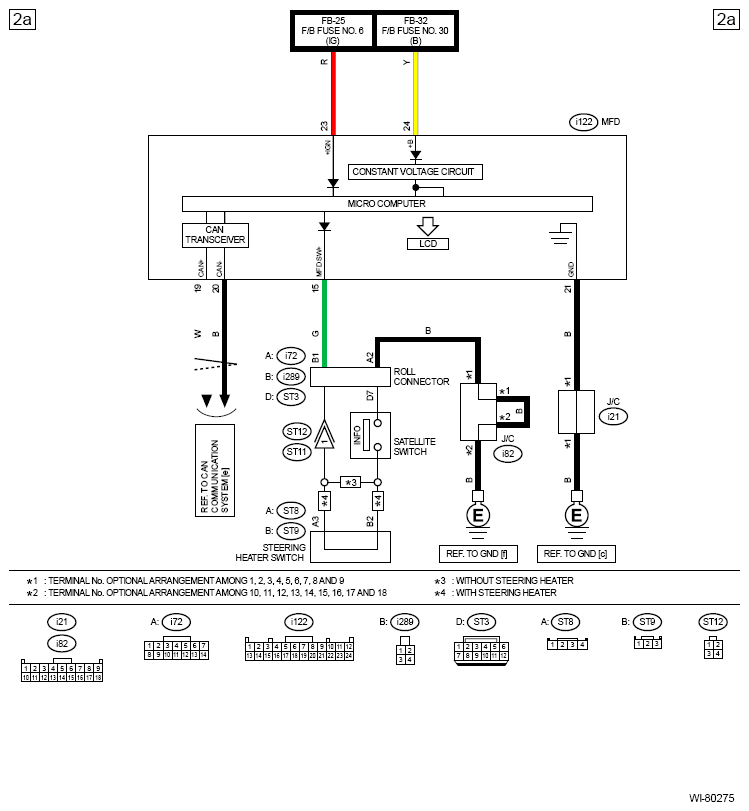

Home >> Subaru >> 2019 >> Forester Limited >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations >> Multi-function Display (MFD) System >> Wiring Diagram >> High Grade MFD
