ECM Terminal Arrangement
- Transmission control computerNOTE: Check the voltage and continuity between terminals.
Terminal No. (Terminal symbol) Input/output Item Measuring condition Criteria A18-34 (IG1) ←→A18-33 (E01) Input Voltage IG ON 11 to 14V A18-35 (IG2) ←→A18-33 (E01) Input Voltage IG ON 11 to 14V A18-26 (BM) ←→A18-33 (E01) Input Voltage Always 11 to 14V A19-18 (SP2+) ←→A19-7 (SP2-) Input Waveform When vehicle speed is approx. 20 km/h {12 MPH}. Waveform 1 A19-17 (NT+) ←→A19-28 (NT-) Input Waveform When engine is idling (select lever in P or N position). Waveform 2 A19-3 (P) ←→A18-33 (E01) Input Voltage - IG ON
- Select lever in P position
11 to 14V Input Voltage - IG ON
- Select lever in any other than P position
Less than 1 V A19-10 (R) ←→A18-33 (E01) Input Voltage - IG ON
- Select lever in R position
11 to 14V Input Voltage - IG ON
- Select lever in any other than R position
Less than 1 V A19-21 (N) ←→A18-33 (E01) Input Voltage - IG ON
- Select lever in N position
11 to 14V Input Voltage - IG ON
- Select lever in any other than N position
Less than 1 V A19-9 (D) ←→A18-33 (E01) Input Voltage - IG ON
- Select lever in D position
11 to 14V Input Voltage - IG ON
- Select lever in any other than D position
Less than 1 V A19-8 (M) ←→A18-33 (E01) Input Voltage - IG ON
- Manual mode switch ON
11 to 14V Input Voltage - IG ON
- Manual mode switch OFF
Less than 1 V A19-2 (SFTU) ←→A18-33 (E01) Input Voltage - IG ON
- Shift manual mode switch ON →"+"
Less than 1V A19-1 (SFTD) ←→A18-33 (E01) Input Voltage - IG ON
- Shift manual mode switch ON →"-"
Less than 1V A18-22 (OIL) ←→A18-23 (EOIL) Input Voltage Transmission oil temperature 115°C or more Less than 1 V A18-16 (SL1+) ←→A18-12 (SL1-) Output Waveform 5th or 6th gear Waveform 3 A18-5 (SL2+) ←→A18-11 (SL2-) Output Waveform While engine idling Waveform 4 A18-4 (SLT+) ←→A18-9 (SLT-) Output Waveform While engine idling Waveform 5 A18-13 (SLU+) ←→A18-1 (SLU-) Output Waveform In M position 2nd to 6th gear (when lock-up is operating) Waveform 6 A18-7 (S1) ←→A18-33 (E01) Output Voltage 1st gear Less than 1 V Output Voltage Any other than 1st gear 11 to 14V A18-17 (S2) ←→A18-33 (E01) Output Voltage 1st, 2nd or 6th gear 11 to 14V Output Voltage 3rd, 4th or 5th gear Less than 1 V A18-6 (S3) ←→A18-33 (E01) Output Voltage 1st, 2nd or 3rd gear 11 to 14V Output Voltage 4th, 5th or 6th gear Less than 1 V A18-14 (S4) ←→A18-33 (E01) Output Voltage 5th or 6th gear 11 to 14V Output Voltage 1st, 2nd, 3rd or 4th gear Less than 1 V A18-15 (SR) ←→A18-33 (E01) Output Voltage 1st, 2nd, 3rd or 4th gear 11 to 14V Output Voltage 5th or 6th gear Less than 1 V A18-29 (CANH) ←→A18-33 (E01) - Waveform - IG ON
- Engine stop
Waveform 7 A18-28 (CANL) ←→A18-33 (E01) - Waveform - IG ON
- Engine stop
Waveform 8 A18-33 (E01) ←→chassis ground - Resistance Always Less than 1 Ω A18-3 (E02) ←→chassis ground - Resistance Always Less than 1 Ω A19-13 (SPORT) ←→chassis ground Input Voltage - IG ON
- Pattern select switch "SPORT" ON
Less than 1 V Input Voltage - IG ON
- Pattern select switch "SPORT" OFF
11 to 14V A19-24 (SNOW) ←→chassis ground Input Voltage - IG ON
- Pattern select switch "SNOW" ON
Less than 1 V Input Voltage - IG ON
- Pattern select switch "SNOW" OFF
11 to 14V - Waveform 1
Item Contents Measuring terminal A19-18 (SP2+) ←→A19-7 (SP2-) Equipment setting 1 V/DIV, 2 ms/DIV Measuring condition When vehicle speed is approx. 20 km/h {12 MPH}. - Waveform 2
Item Contents Measuring terminal A19-17 (NT+) ←→A19-28 (NT-) Equipment setting 5V/DIV., 2msec./DIV. Measuring condition When engine is idling (select lever in P or N position). - Waveform 3
Item Contents Measuring terminal A18-16 (SL1+) ←→A18-12 (SL1-) Equipment setting 5V/DIV, 1 ms/DIV Measuring condition 5th or 6th gear - Waveform 4
Item Contents Measuring terminal A18-5 (SL2+) ←→A18-11 (SL2-) Equipment setting 5V/DIV., 1msec./DIV. Measuring condition While engine running - Waveform 5
Item Contents Measuring terminal A18-4 (SLT+) ←→A18-9 (SLT-) Equipment setting 5V/DIV., 1msec./DIV. Measuring condition While engine idling - Waveform 6
Item Contents Measuring terminal A18-13 (SLU+) ←→A18-1 (SLU-) Equipment setting 5V/DIV., 1msec./DIV. Measuring condition M position: in 2nd to 6th gear (when lock-up is operating) - Waveform 7
Item Contents Measuring terminal A18-29 (CANH) ←→A18-33 (E01) Equipment setting 1V/DIV., 10msec/DIV. Measuring condition Engine stop, IG ON - Waveform 8
Item Contents Measuring terminal A18-28 (CANL) ←→A18-33 (E01) Equipment setting 1V/DIV., 10msec/DIV. Measuring condition Engine stop, IG ON

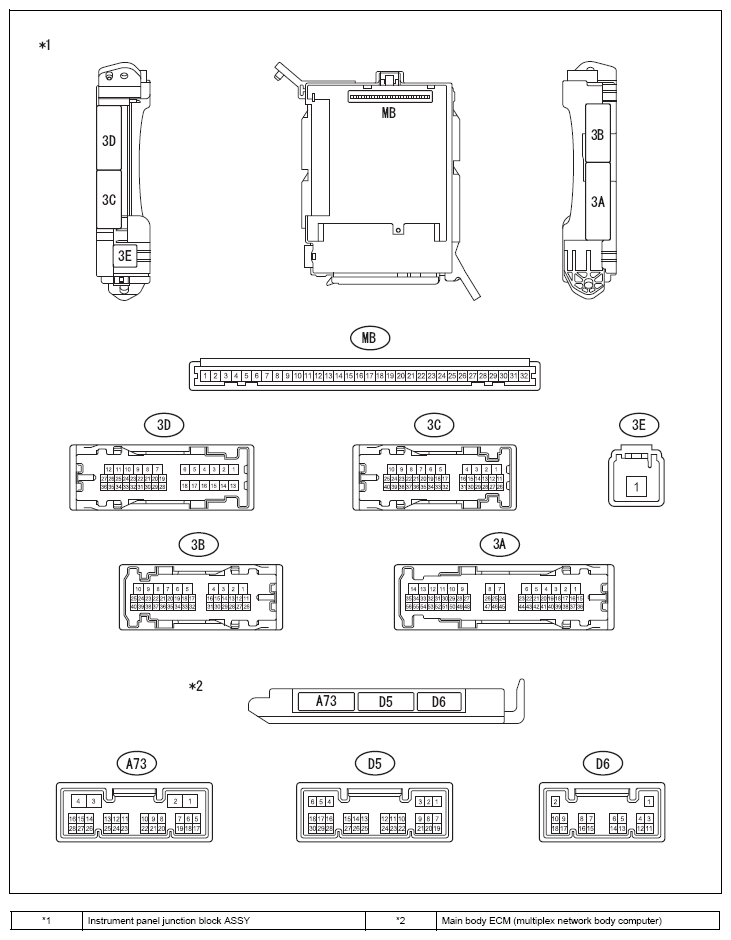

- Instrument panel junction block ASSY, main body ECM (multiplex network body computer)NOTE: Measure the voltage between the terminals.
Terminal No. (Terminal symbol) Input/output Item Measuring condition Criteria D5-20 ←→chassis ground Output Voltage - IG ON
- Select lever in P position
- Stop light switch ON (brake pedal depressed)
11 to 14V - IG ON
- Select lever in P position
- Stop light switch OFF (brake pedal not depressed)
Less than 1 V 3C-8 ←→chassis ground Input Voltage Stop light switch ON (brake pedal depressed) 11 to 14V Stop light switch OFF (brake pedal not depressed) Less than 1 V 3D-23 ←→chassis ground Input Voltage Select lever in any other than P position 11 to 14V Select lever in P position Less than 1 V
