Side Airbag Sensor: Removal

WARNING: The following service operations include the works which may affect the SRS airbag system. Before starting work, always be sure to confirm the precautions related to the SRS airbag system. (Refer to SRS AIRBAG SYSTEM )
NOTE: The procedures described below are for the RH side. Unless otherwise specified, perform the same procedures for the LH side.
  1. Precautions
    CAUTION: After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Disconnection of the battery ground terminal
    1. Turn the ignition switch to OFF, disconnect the battery ground terminal, and then wait for 60 seconds before starting the work. (Refer to WORKING PRECAUTIONS AND NOTES )
      WARNING: The air bag and pretensioner system are fitted with a backup power supply. If you start the work within 60 seconds after disconnecting the battery ground terminal, the air bag may be activated.
      CAUTION: To avoid damage to the molding, be sure to fully open the door glasses on both driver's and passenger's sides.
  3. Removal of separate type rear seat cushion ASSY (Refer to REMOVAL )
  4. Removal of the front door scuff plate RH (Refer to REMOVAL , Step 8 )
  5. Removal of the front door opening trim weather strip RH
    1. Remove the front door opening trim weather strip RH to the extent that the luggage compartment trim side cover RH can be removed.
  6. Removal of quarter lower trim RH (Refer to REMOVAL , Step 20 )
  7. Removal of the seat belt pretensioner RH

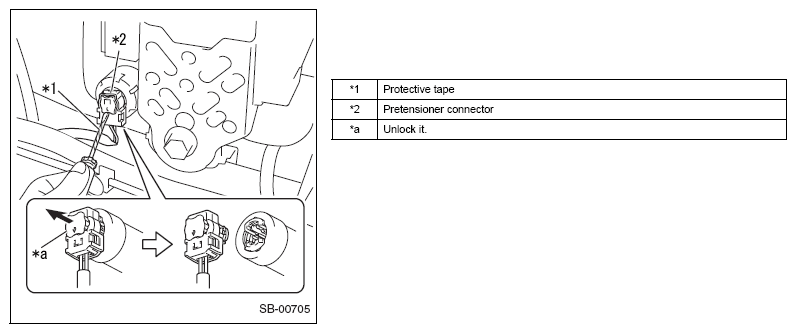

    1. Using the fine flat tip screwdriver wrapped with protective tape, pull off the lock of the pretensioner connector to unlock it.
      G12591390Courtesy of SUBARU OF AMERICA, INC.
    2. Using the fine flat tip screwdriver wrapped with protective tape, disconnect the pretensioner connector.
    3. Remove 2 bolts and guides, and remove the seat belt pretensioner RH.
    G08557841Courtesy of SUBARU OF AMERICA, INC.
  8. Removal of the side airbag sensor RH
    1. Check that the ignition switch is turned to OFF.
    2. Check that the battery ground terminal is disconnected.
      WARNING:
      • After disconnecting the battery ground terminal, do not start the work before waiting for 60 seconds.
      • If the work is performed before disconnecting the battery ground terminal, the airbag may be activated just by the impact applied to the side airbag sensor RH itself. Make sure to confirm the battery ground terminal is disconnected before starting the work.

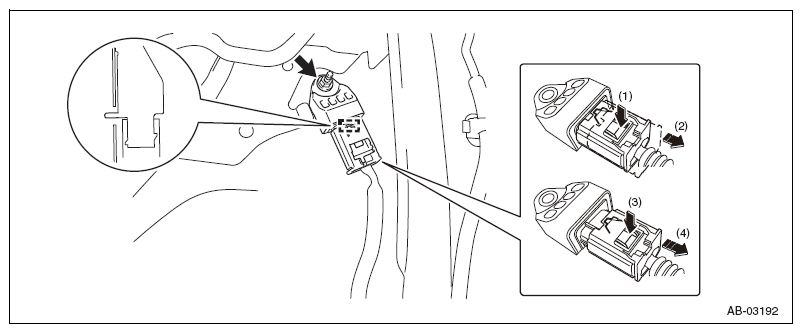

    3. Remove the nut and remove the side airbag sensor RH.
    G08557704Courtesy of SUBARU OF AMERICA, INC.
    CAUTION:
    • The pin section (counter rotation part) of the side airbag sensor RH is easily damaged. When loosening the nut, hold the side airbag sensor RH by hand.
    • Do not apply strong impact (such as dropping) to the side airbag sensor RH.
    • If strong impact is applied to the side airbag sensor RH, replace it with a new one.
