SRS Airbag System: Precautions

  1. Before starting all works

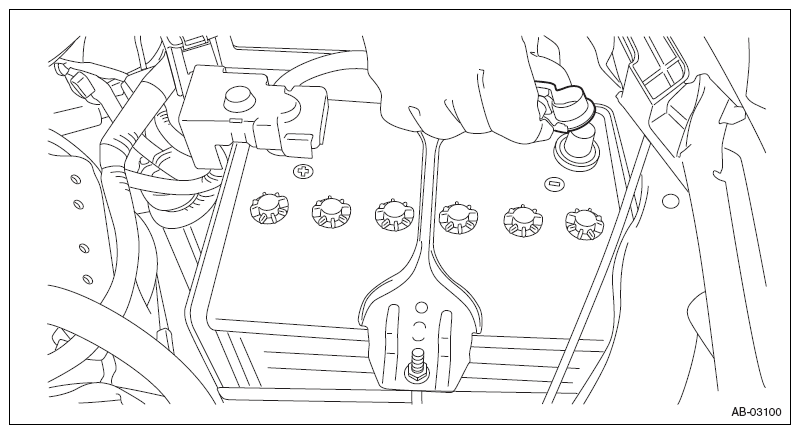

    1. The airbag system is fitted with a backup power supply. After disconnecting the battery ground terminal, the airbag may operate if you do not wait for 60 seconds or more before starting the service of airbag system.
      G08553137Courtesy of SUBARU OF AMERICA, INC.
    2. When servicing a vehicle, be sure to turn the ignition switch to OFF, disconnect the ground terminal from battery, and wait for 60 seconds or more before starting work.
    3. If the airbag warning light illuminates, check or repair the vehicle immediately to prevent it from airbag system malfunction.

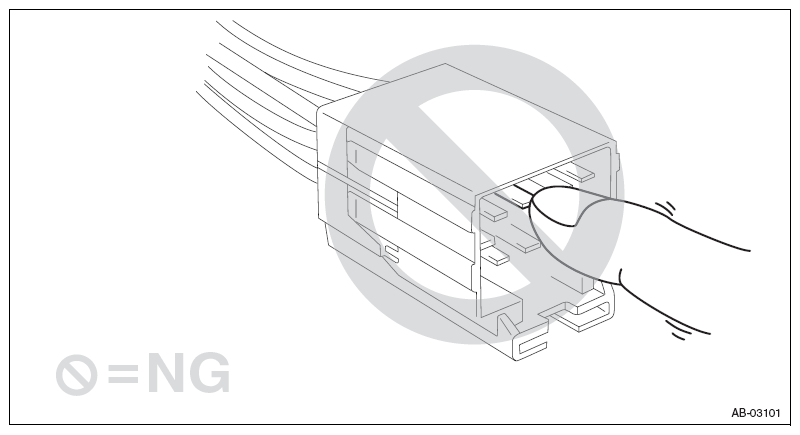

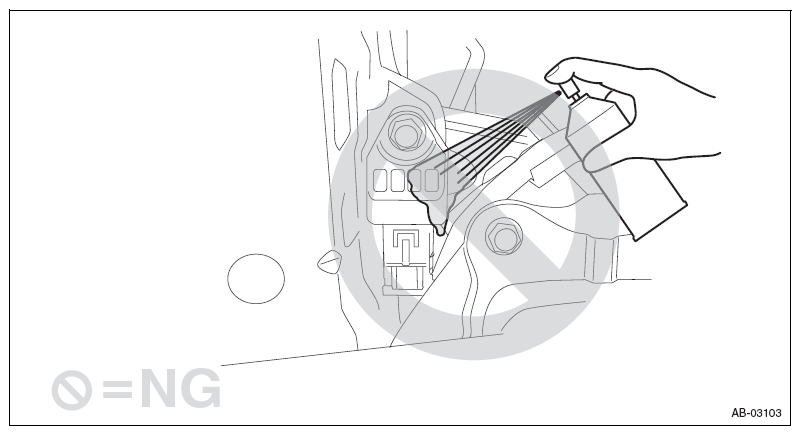

    4. Do not let water or oil adhere to the connector terminals. Also, do not touch the connector terminals directly.
      G08553138Courtesy of SUBARU OF AMERICA, INC.
    5. If damage, open circuit or rust is found on airbag system wiring harness, do not repair the harness. Always replace the faulty harness with a new genuine part.
      G08553139Courtesy of SUBARU OF AMERICA, INC.
    6. When painting or performing sheet metal work on the front part of the vehicle, including the front wheel apron, front fender and radiator panel side, remove the front sub sensors and wiring harness of airbag system.
    7. When painting or performing sheet metal work on the side of the vehicle, including the side sill, center pillar and front and rear doors, remove the side airbag sensors, curtain airbag sensor, satellite safing sensor, front door impact sensor and wiring harness of the airbag system.
      G08553140Courtesy of SUBARU OF AMERICA, INC.
    8. When attaching the steering wheel and steering roll connector, be sure to adjust the steering roll connector.
  2. Before starting parts replacement

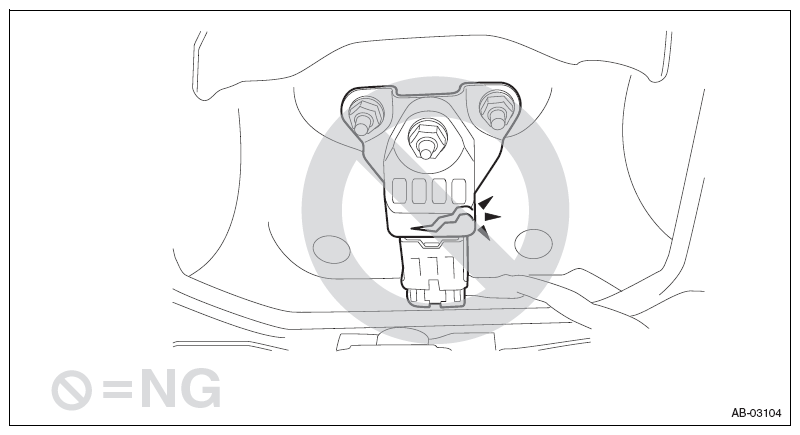

    1. If airbag sensors, airbag module, airbag control module, pretensioners, harnesses, or the cover - if satellite safing is deformed or damaged, replace with new parts.
      G08553141Courtesy of SUBARU OF AMERICA, INC.

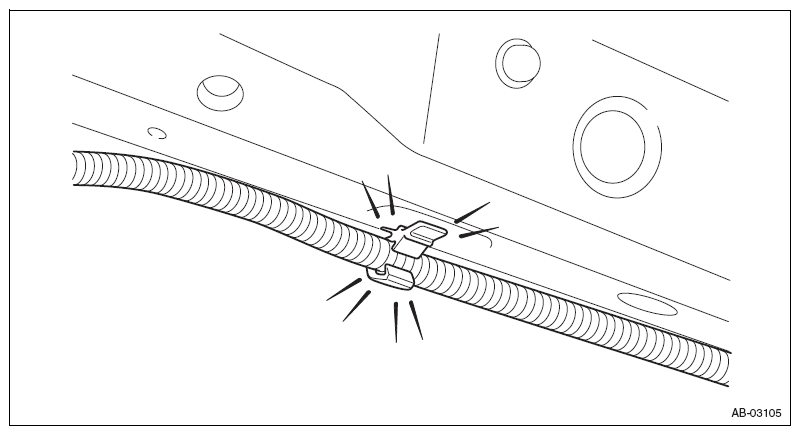

    2. Install the wiring harness securely with the specified clips to avoid interference or tangled with other parts.
      G08553142Courtesy of SUBARU OF AMERICA, INC.
    3. Do not use the airbag or pretensioner parts from other vehicles. Always replace the defective parts with new parts.
    4. Never reuse any activated airbag module and pretensioner.
    5. Do not discard undeployed airbag or pretensioner.
    6. When airbag control module, front sub sensor, side airbag sensor, curtain airbag sensor, satellite safing sensor and front door impact sensor are removed, do not reuse the bolts and nuts of them. Always replace with the specified new bolt and nut.
    7. When attaching the steering wheel and steering roll connector, be sure to adjust the steering roll connector.
    8. After removing each parts of the airbag system, keep them with the pad side facing upward on a dry, clean and flat surface away from heat, light sources, moisture and dust.
      G08553143Courtesy of SUBARU OF AMERICA, INC.

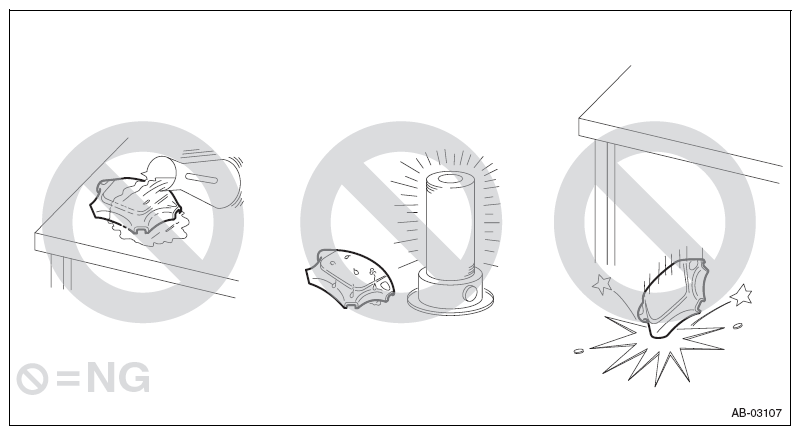

    9. Do not drop any airbag component, store them under high temperature of 85°C (185°F) or more, or let water, oil or grease get on them; the internal parts may be damaged or the reliability may be greatly lowered.
      G08553144Courtesy of SUBARU OF AMERICA, INC.

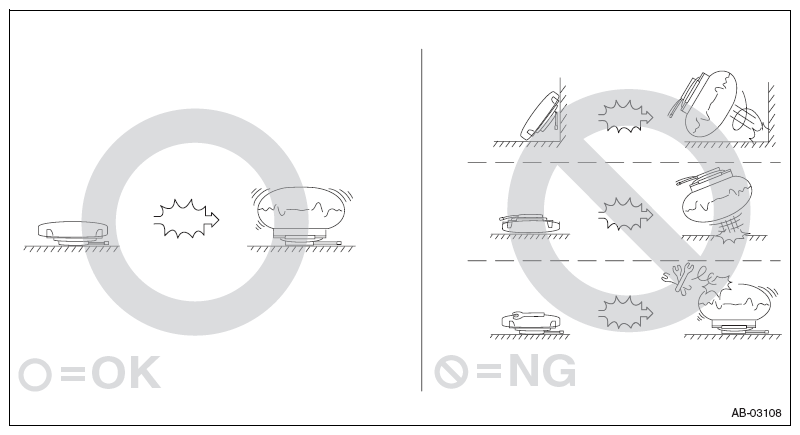

    10. When storing a removed airbag module, do not place it with the pad side facing downward. Do not place any objects on the airbag module. Do not pile up the airbag module. If the pad of the airbag module is in contact with other objects, it may cause a serious accident if the airbag accidentally operates.
    11. Driver side air bag module
      G08553145Courtesy of SUBARU OF AMERICA, INC.
    12. Passenger's airbag module and side airbag module
      G08553146Courtesy of SUBARU OF AMERICA, INC.

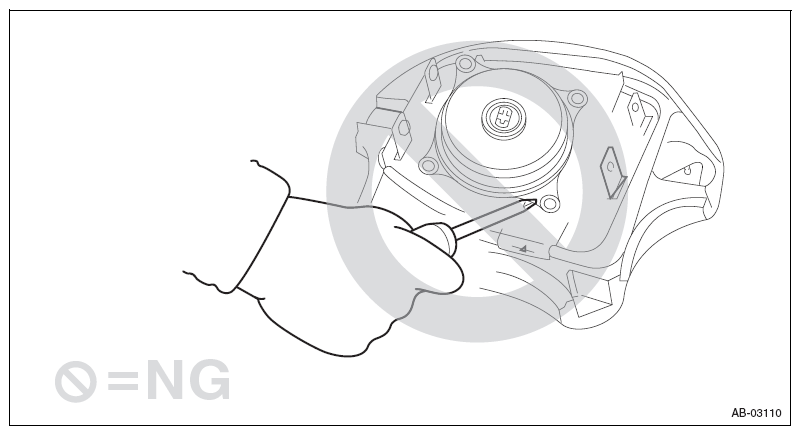

    13. Do not disassemble driver's airbag module, passenger's airbag module, side airbag module, curtain airbag module or pretensioner.
      G08553147Courtesy of SUBARU OF AMERICA, INC.

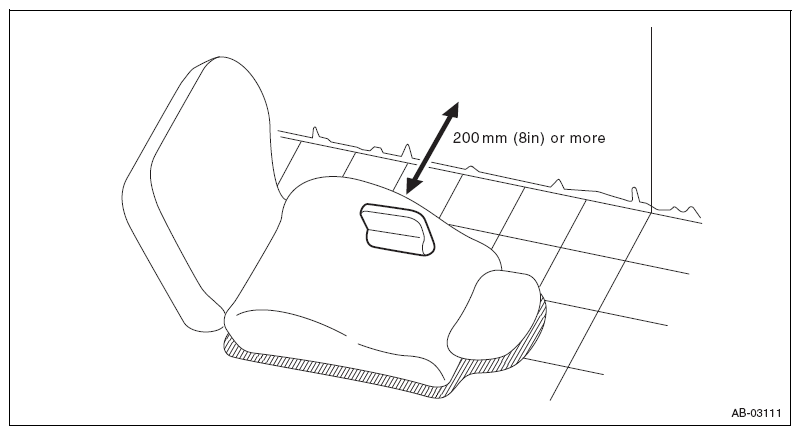

    14. The removed front seat with airbag module must be kept at least 200 mm (8 in) away from walls and other objects.
      G08553148Courtesy of SUBARU OF AMERICA, INC.
  3. Before starting troubleshooting
    1. Even if any part must be replaced as the result of troubleshooting, do not use an airbag part or pretensioner part from other vehicles. Always replace the defective parts with new parts.

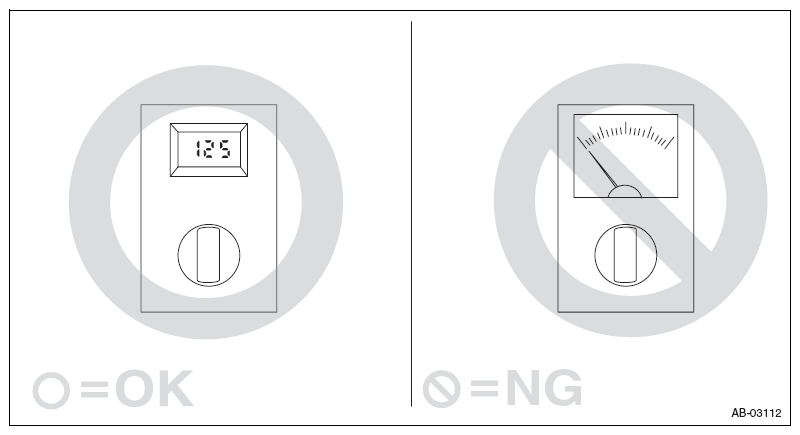

    2. When checking the airbag system, be sure to use a digital circuit tester. Use of an analog circuit tester may cause the airbag to activate erroneously due to a low current inside tester.
      G08553149Courtesy of SUBARU OF AMERICA, INC.
    3. Do not let water or oil adhere to the connector terminals. Also, do not touch the connector terminals directly.
      G08553138Courtesy of SUBARU OF AMERICA, INC.

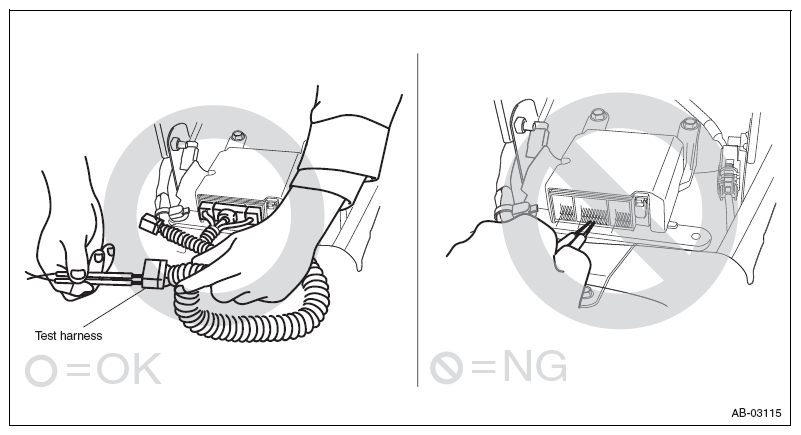

    4. When checking, use a test harness. Damage to connector terminal causes malfunction. Do not directly put the tester probe on airbag connector terminal.
      G08553151Courtesy of SUBARU OF AMERICA, INC.
    5. Do not check continuity of the driver's airbag module, passenger's airbag module, side airbag module, curtain airbag module or pretensioner.
      G08553152Courtesy of SUBARU OF AMERICA, INC.

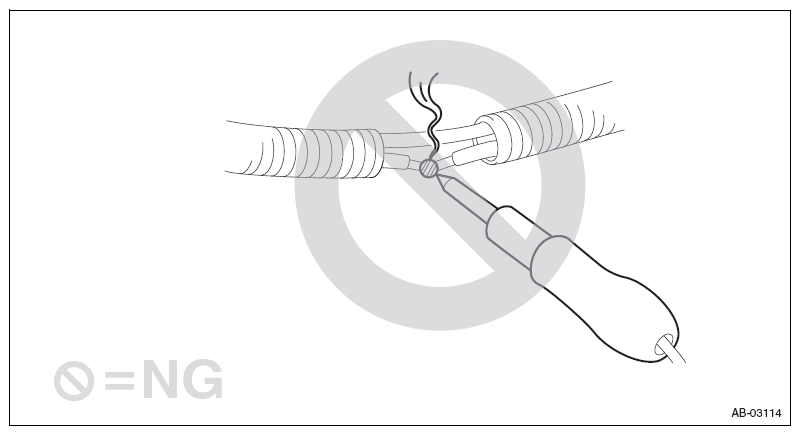

    6. If damage, open circuit or rust is found on airbag system wiring harness, do not repair the harness. Always replace the faulty harness with a new genuine part.
      G08553153Courtesy of SUBARU OF AMERICA, INC.
  4. Checking with a probe

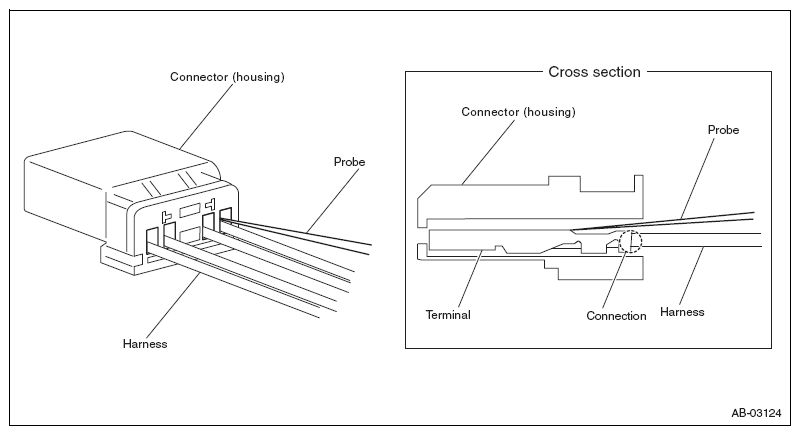

    1. Insert the probe into the harness hole, and contact it with the terminal.
      G08553154Courtesy of SUBARU OF AMERICA, INC.
    2. Do not insert the probe forcibly.
    3. Be careful not to contact the part between the terminal and harness with the tip of probe. (It will make harness come off easily from connector.)
