ECM Terminal Arrangement
- Air conditioner control ASSY
Standard value
STANDARD VALUE SPECIFICATION - CONNECTOR D19Terminal No. (Terminal symbol) Input/Output Item Measuring conditions Standard value D19-1 (ACC)←→D19-16 (GND) Input Voltage IG ACC 10 to 16 V D19-2 (PSW)←→D19-6 (SG) Input Waveform When refrigerant pressure is normal 10 to 16 V When refrigerant pressure is abnormal Less than 1 V D19-6 (SG) ←→Chassis ground - Resistance Always Less than 1 Ω D19-8 (HR)←→D19-16 (GND) Input Voltage IG ON Blower switch OFF →LO Less than 1 V →10 to 16 V D19-9 (+B)←→D19-16 (GND) Input Voltage Always 10 to 16 V D19-10 (IG)←→D19-16 (GND) Input Voltage IG ON 10 to 16 V D19-11 (ILL+)←→D19-16 (GND) Input Voltage Night illumination ON 10 to 16 V Night illumination OFF Less than 1 V D19-12 (CANL)←→D19-16 (GND) Input/Output Waveform IG ON Pulse generation D19-13 (CANH)←→D19-16 (GND) Input/Output Waveform IG ON Pulse generation D19-14 (BLW)←→D19-16 (GND) Output Waveform IG ON Blower switch LO Pulse generation (waveform 1) D19-15 (ILL-)←→D19-16 (GND) Input - IG ON Rheostat 10 to 16 V D19-16 (GND) ←→Chassis ground - Resistance Always Less than 1 Ω STANDARD VALUE SPECIFICATION - CONNECTOR D20Terminal No. (Terminal symbol) Input/Output Item Measuring conditions Standard value D20-2 (TSD) ←→Chassis ground Input Voltage IG ON
Put sunlight or light to the sunload sensor.0.8 to 4.3 V (The voltage varies depending on the light strength.) D20-29 (S5)←→16 (GND) Output Voltage IG ON 4.75 V to 5.25 V - Waveform 1
Item Contents Measuring terminal D19-14 (BLW) - D19-16 (GND) Equipment setting 1 V/DIV, 500 μs/DIV Measuring conditions IG ON, Blower switch: LO, A/C switch: ON NOTE: As the blower level is high (increase of air flow), the duty ratio is changed. - Combination meter ASSY
Standard value
STANDARD VALUE SPECIFICATION - CONNECTOR D7Terminal No. (Terminal symbol) Input/Output Item Measuring conditions Standard value D7-24 (TAM) ←→D7-25 (SG-) Input Voltage IG ON
External temperature 25°C (77°F)1.4 to 1.6V IG ON
External temperature 50°C (122°F)0.7 to 0.9V D7-6 (CANH) ←→Chassis ground Input/Output Waveform IG ON Pulse generation D7-7 (CANL) ←→Chassis ground Input/Output Waveform IG ON Pulse generation - Instrument panel junction block ASSY, main body ECM (Network gateway computer)

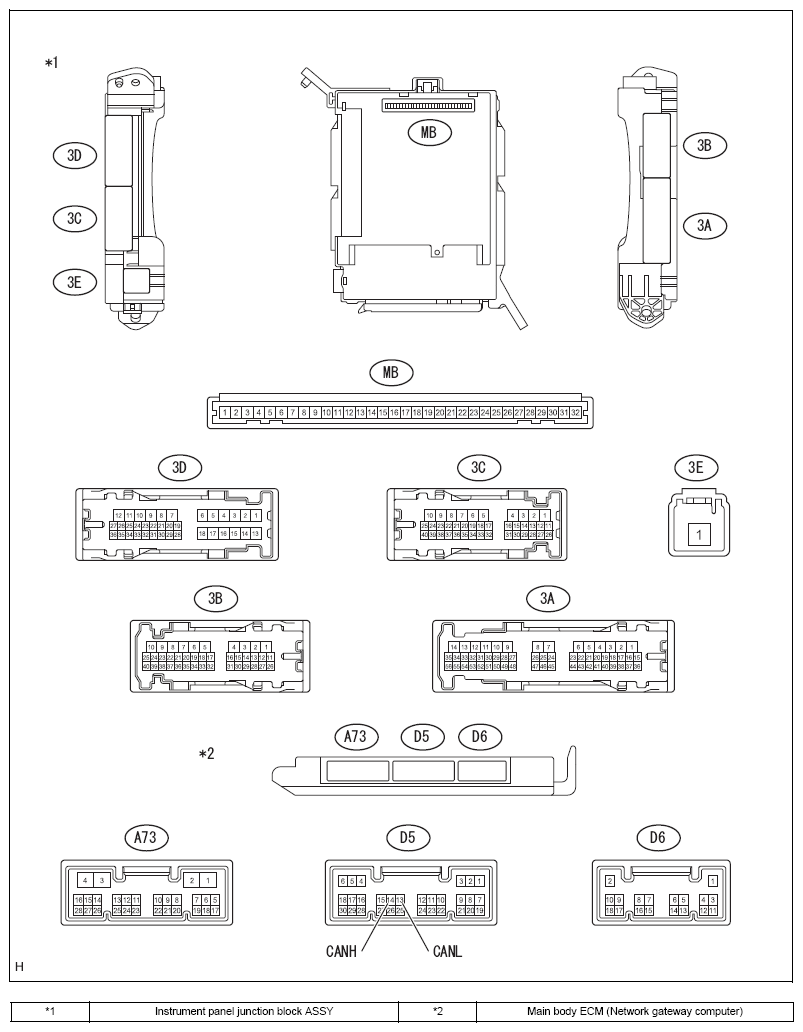

- Inspection of instrument panel junction block ASSY and main body ECM (network gateway computer)
- Remove the main body ECM (network gateway computer) from the instrument panel junction block ASSY.
- Check the resistance and voltage between the instrument panel junction block ASSY connector terminals.
Standard value
STANDARD VALUE SPECIFICATION - CONNECTOR MBTerminal No. (Terminal symbol) Input/Output Item Measuring conditions Standard value MB8 ←→Chassis ground Input Voltage IG ON 11 to 14 V MB9 ←→Chassis ground Input Voltage IG ACC 11 to 14 V MB11 ←→Chassis ground - Resistance Always Less than 1 Ω NOTE: If it is out of the standard value, it can be judged as malfunction of the vehicle.
- Inspection of instrument panel junction block ASSY and main body ECM (network gateway computer)
- Engine control computer
Standard value
STANDARD VALUE SPECIFICATION - CONNECTOR A33Terminal No. (Terminal symbol) Input/Output Item Measuring conditions Standard value A33-8 (ACP) ←→Chassis ground Input Voltage When refrigerant pressure is normal 0.63 to 4.73V A33-18 (CANL) ←→Chassis ground Input/Output Waveform IG ON Pulse generation A33-19 (CANH) ←→Chassis ground Input/Output Waveform IG ON Pulse generation
