Exploded View

WARNING: This page is about a different variant/trim than selected.

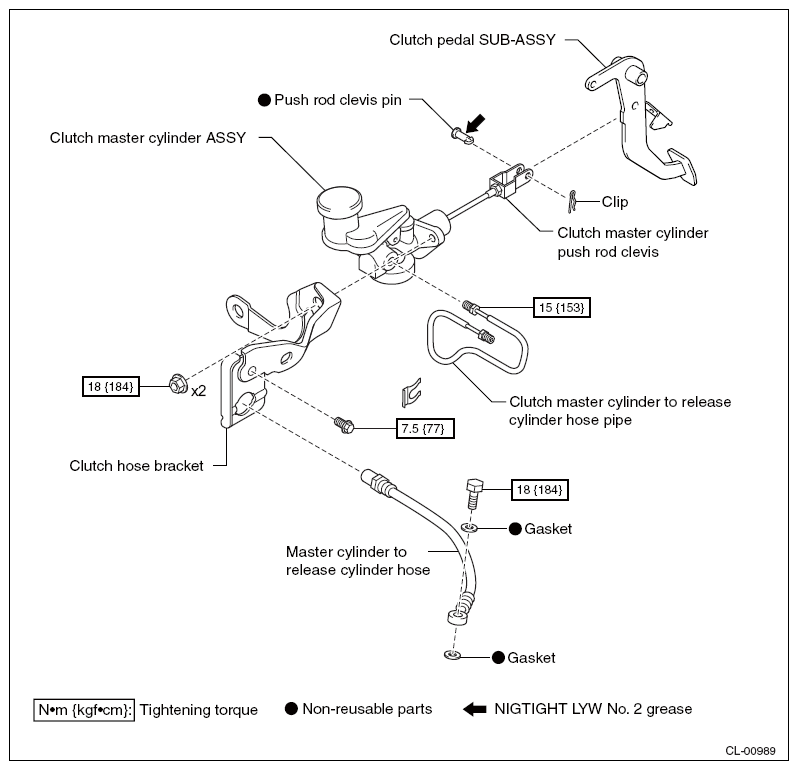

Fig 1: Clutch Master Cylinder Assembly Components With Torque Specification
G08556879Courtesy of SUBARU OF AMERICA, INC.

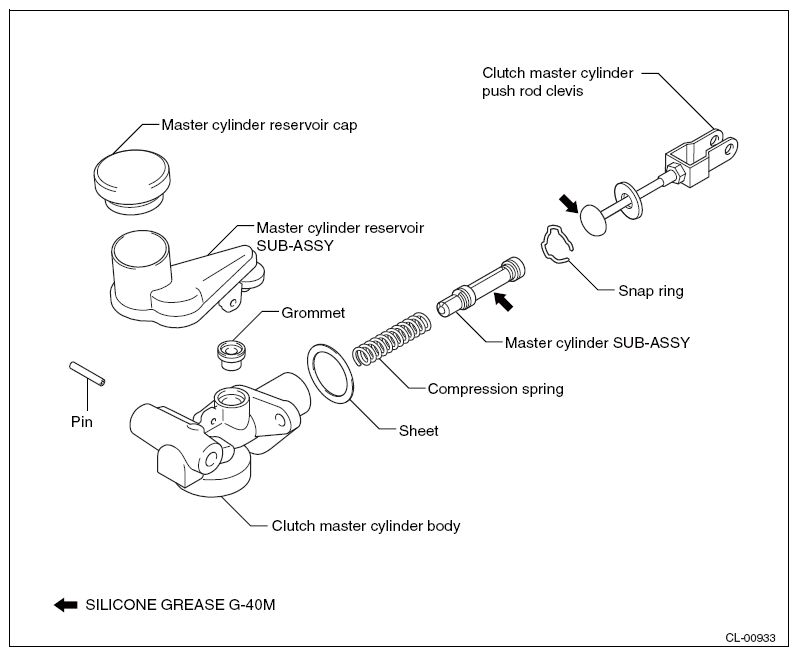

G08556880Courtesy of SUBARU OF AMERICA, INC.
