Exploded View

WARNING: This page is about a different variant/trim than selected.
Fig 1: Transmission Unit Assembly Components With Torque Specification
G10214842Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )

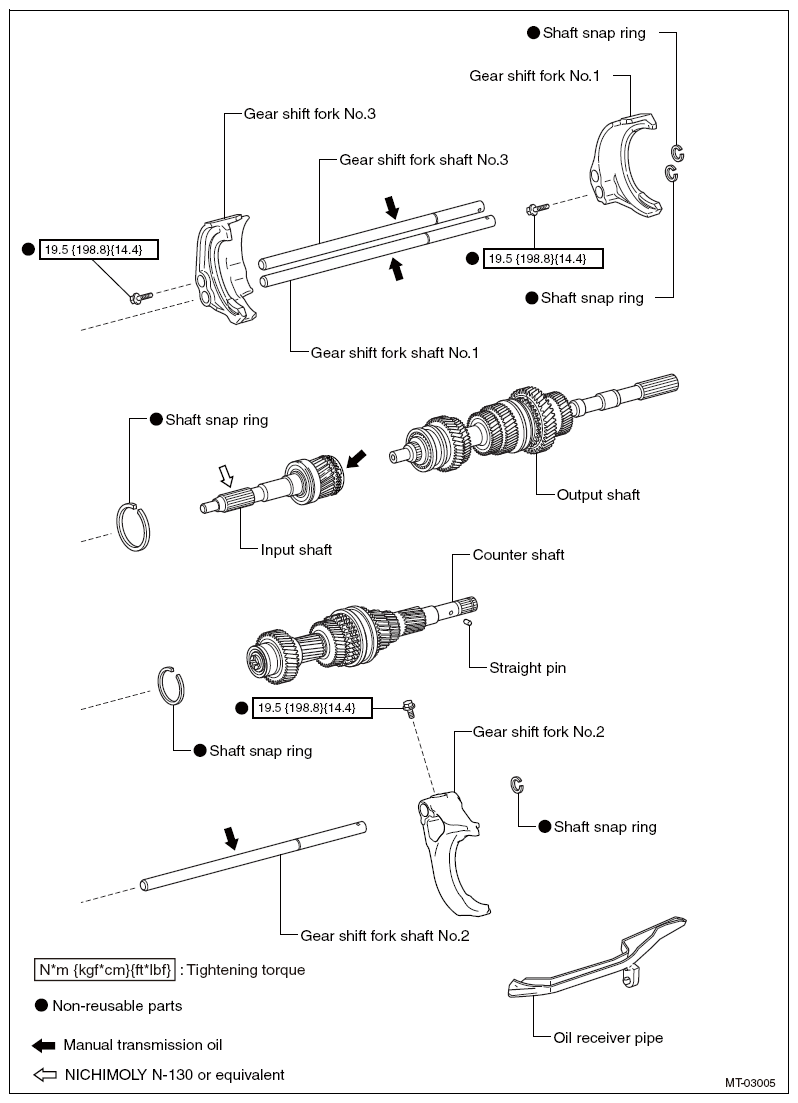

Fig 2: Transmission Unit Assembly Components With Torque Specification
G08554902Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )
Fig 3: Transmission Unit Assembly Components With Torque Specification
G08554903Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )
Fig 4: Transmission Unit Assembly Components With Torque Specification
G10214845Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )

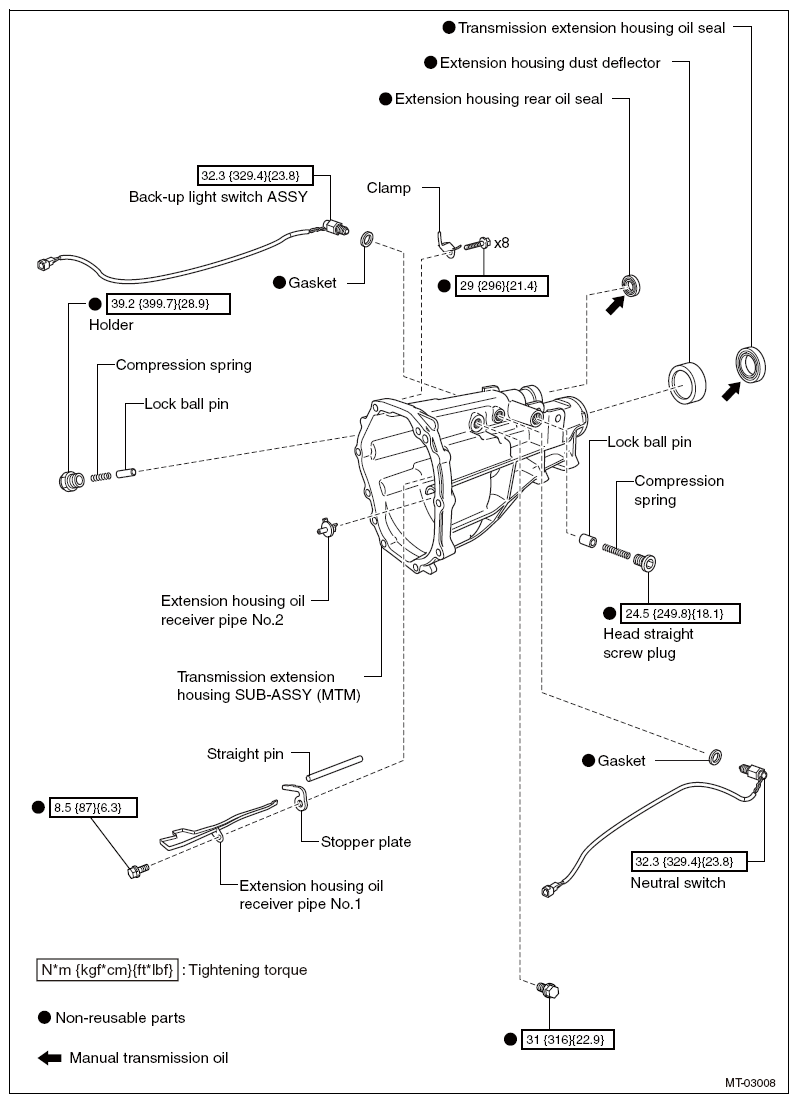

Fig 5: Transmission Unit Assembly Components With Torque Specification
G08554905Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )
