Exploded View

WARNING: This page is about a different variant/trim than selected.

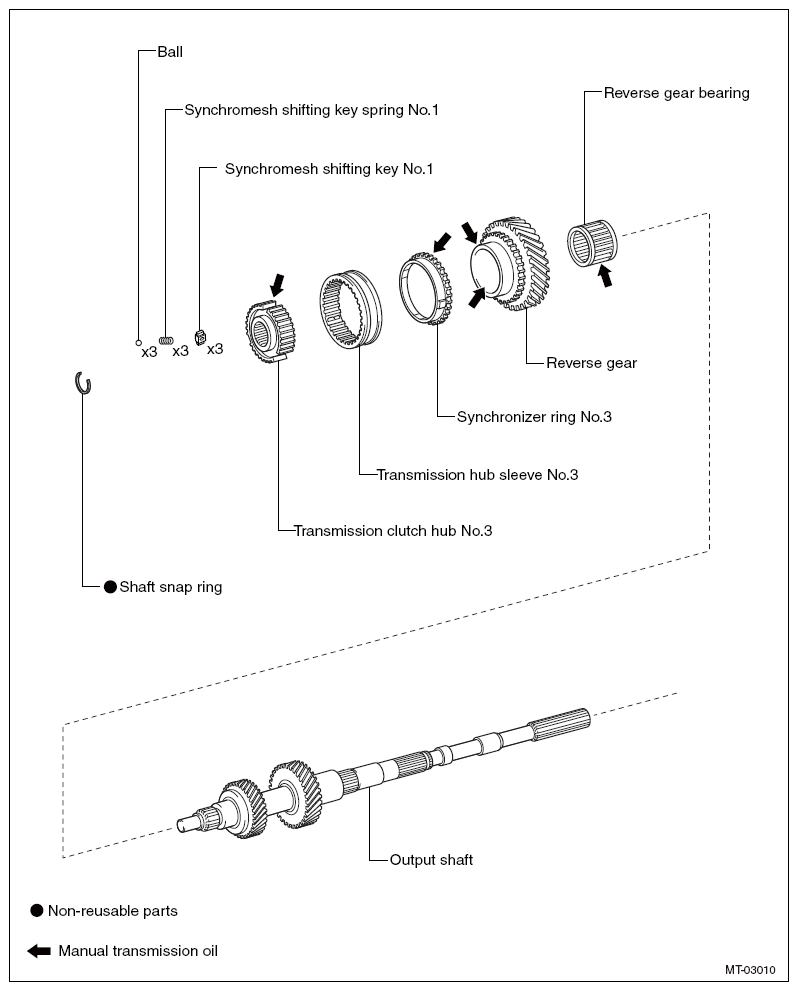

G08555074Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )

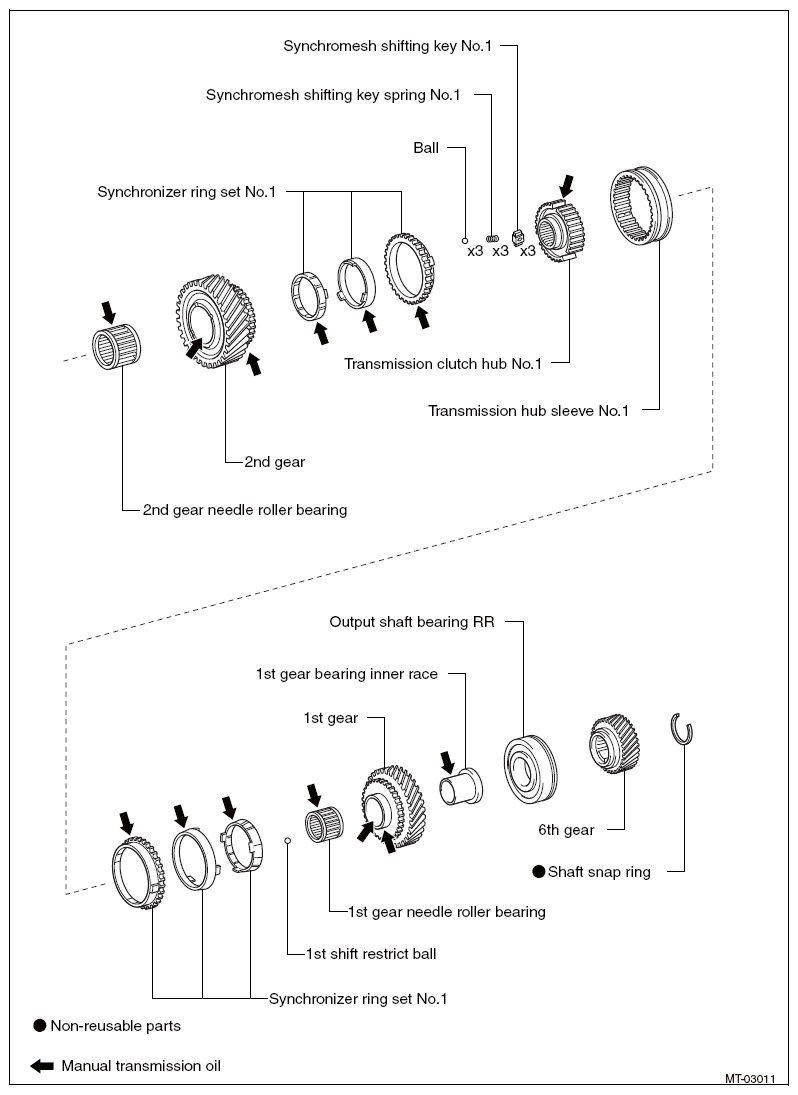

G08555075Courtesy of SUBARU OF AMERICA, INC.
NOTE: Be sure to use the recommended product or the substitute product for manual transmission oil. (Refer to MANUAL TRANSMISSION OIL )
