Section 1 (Manual Transaxle & Differential)
>>
Manual Transmission ASSY
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

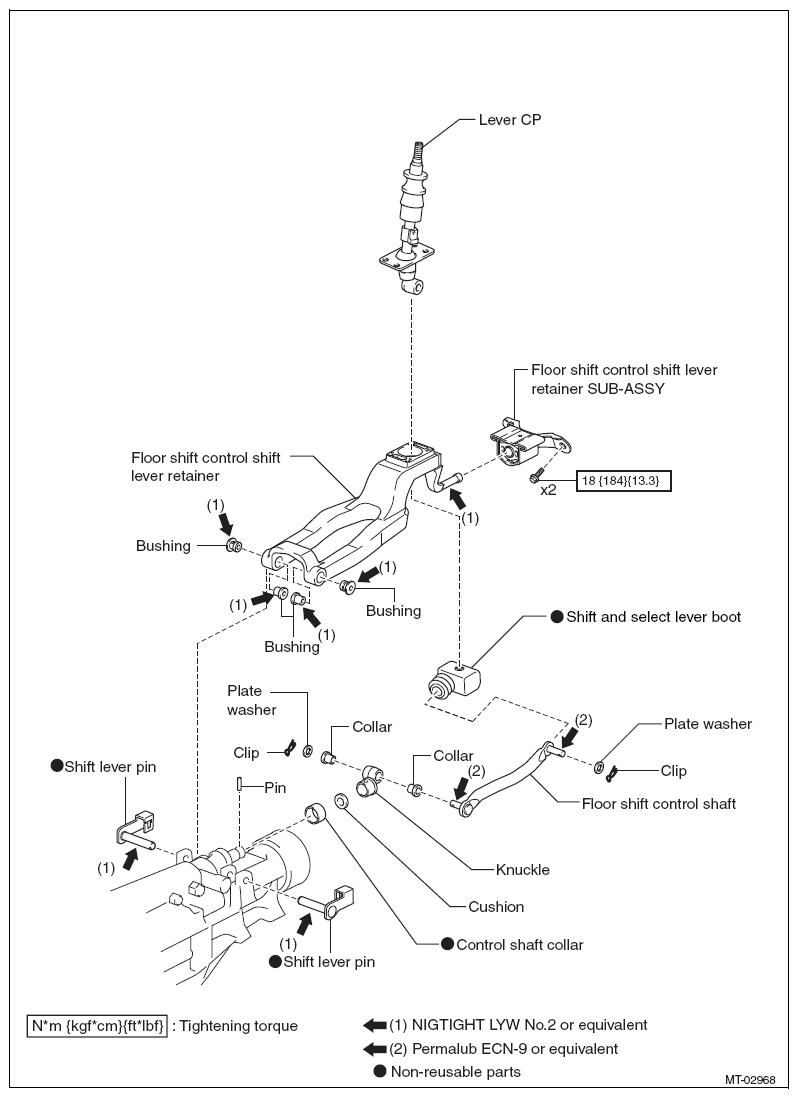

Fig 1: Manual Transmission Assembly Components With Torque Specification (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

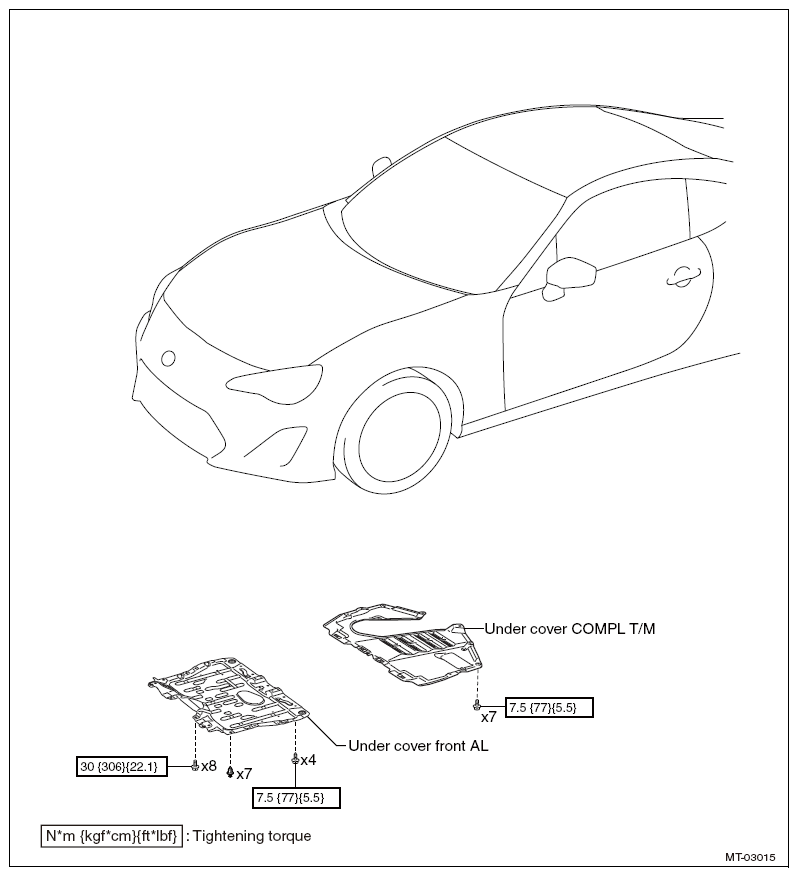

Fig 2: Manual Transmission Assembly Components With Torque Specification (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Manual Transmission Assembly Components With Torque Specification (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
