Circuit figure

G11258174Courtesy of SUBARU OF AMERICA, INC.

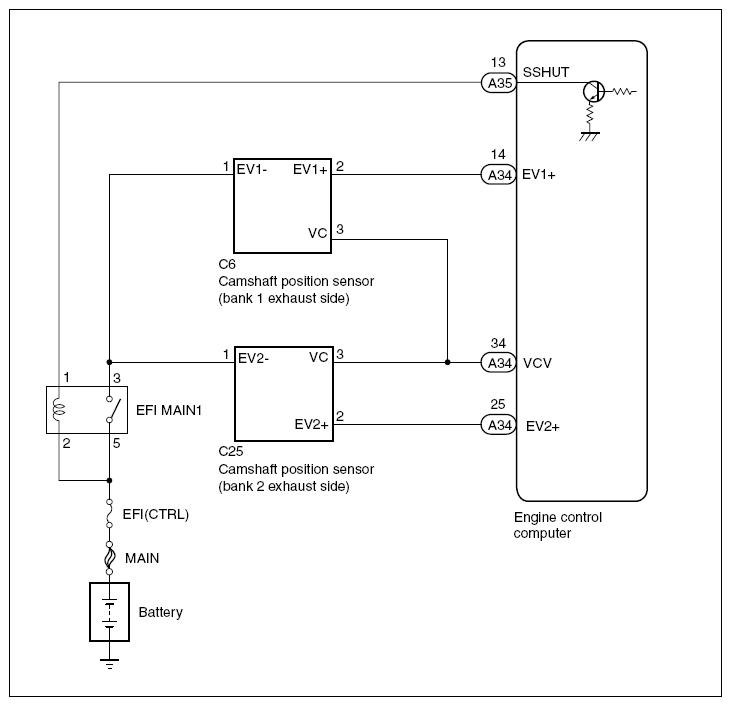

G12586135Courtesy of SUBARU OF AMERICA, INC.

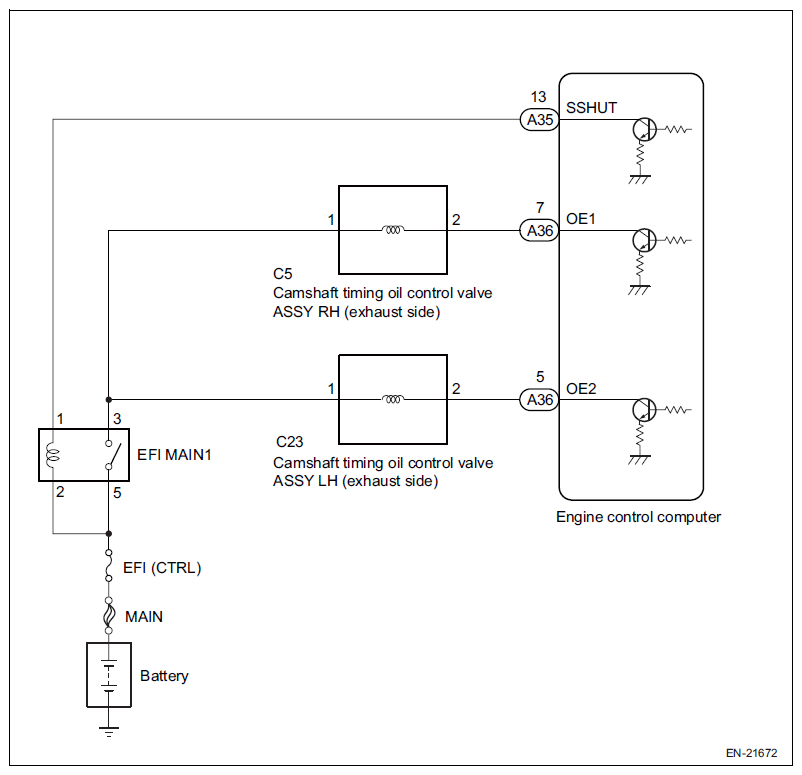

G11258088Courtesy of SUBARU OF AMERICA, INC.
