Starter ASSY (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of exhaust pipe ASSY FR (Refer to REMOVAL )
  3. DISCONNECT ENGINE WIRE
    NOTE: Fix the disconnected harness components with tape to keep them out of the way.
    G11259203Courtesy of SUBARU OF AMERICA, INC.
    1. Release the lock of connector (A) and disconnect the connector.
    2. Disconnect the connector (B).
    3. Remove the wiring harness clamp (C) and clip (D).
    4. Disconnect the connector.
    G12587249Courtesy of SUBARU OF AMERICA, INC.
  4. Removal of starter ASSY
    1. Disconnect the connector and terminal from the starter ASSY.
      G12587250Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the upper mounting bolt.
      G12587251Courtesy of SUBARU OF AMERICA, INC.
      G08556743Courtesy of SUBARU OF AMERICA, INC.

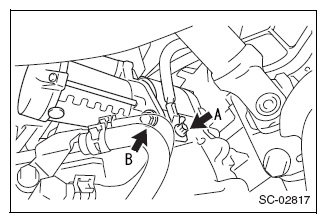

    3. Remove the lower mounting bolt.
      1. Remove the ground cable fixing bolt A.
        CAUTION: When removing the ground cable, make sure to secure the stay.
      2. Remove the lower mounting bolt B.
      3. Remove the starter ASSY.
