Starter ASSY (FA20): Installation

1. Install the starter ASSY to the transmission and temporarily tighten the upper mounting bolt.

   Courtesy of SUBARU OF AMERICA, INC.

2. Lower mounting bolt tightening
   1. Tighten the lower mounting bolt A.

      Standard value: 50 N.m {510 kgf.cm} {36.9 ft.lbf}

   2. Tighten the ground cable fixing bolt B.
      CAUTION: When installing the ground cable, make sure to secure the stay.

      Standard value: 14 N.m {143 kgf.cm} {10.3 ft.lbf}

   Courtesy of SUBARU OF AMERICA, INC.

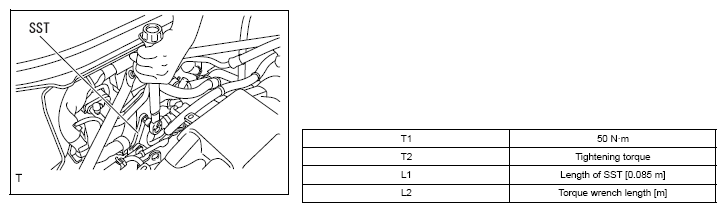

3. Tighten the upper mounting bolt of starter ASSY using the SST.

   SST 18283AA000

   Standard value: Specified tightening torque

   T=50N.m {510kgf.cm} {36.9ft.lbf}

   When using the SST, calculate the torque using the following formula.

   TIGHTENING TORQUE SPECIFICATION



   T1	50 N.m
   T2	Tightening torque
   L1	Length of SST [0.085 m]
   L2	Torque wrench length [m]

   Courtesy of SUBARU OF AMERICA, INC.

   NOTE:

   • This torque value is valid when the SST and torque wrench are aligned on a line.
   • Attach the SST and torque wrench so that they are aligned on a line.
4. Connect the connector and terminal to the starter ASSY.

1. Connect the connector.

   Courtesy of SUBARU OF AMERICA, INC.

2. Install the wiring harness clamp (C) and clip (D).

   Courtesy of SUBARU OF AMERICA, INC.

3. Connect the connector (B).
4. Connect the wire harness connector (A) and securely lock the connector.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
