Chamber (FA20): Removal

  1. Hose removal
    1. Disconnect the hose.
    2. Release the two clamps and remove the hose from the grommet.

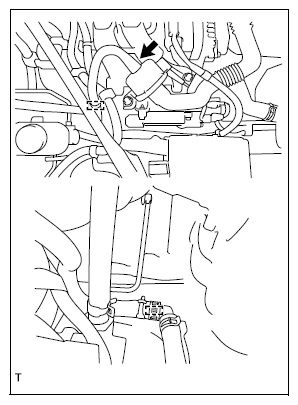

    G12587025Courtesy of SUBARU OF AMERICA, INC.
  2. Duct removal
    1. Loosen the hose clamp.

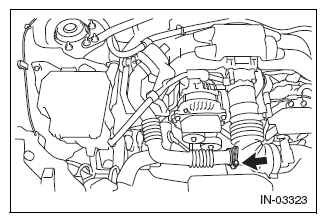

      G08556523Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the two bolts and remove the duct and chamber ASSY as a unit.
      G12587027Courtesy of SUBARU OF AMERICA, INC.
    G12587028Courtesy of SUBARU OF AMERICA, INC.
  3. Chamber ASSY removal
    1. Loosen the hose clamp and remove the chamber ASSY.
