Purge Control Solenoid Valve (FA20): Removal

  1. Removal of engine cover SUB-ASSY No. 1 (transmission A/T) (Refer to REMOVAL )
  2. Removal of purge control solenoid valve

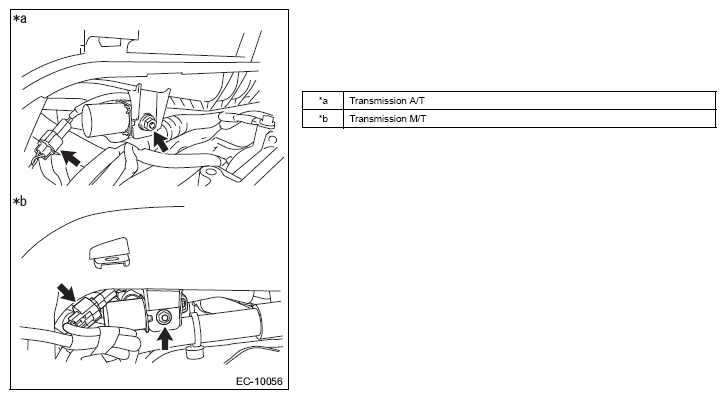

    1. While holding the purge control solenoid valve by hand, remove the nut.
    2. Disconnect the connector for the purge control solenoid valve.
      G12586966Courtesy of SUBARU OF AMERICA, INC.

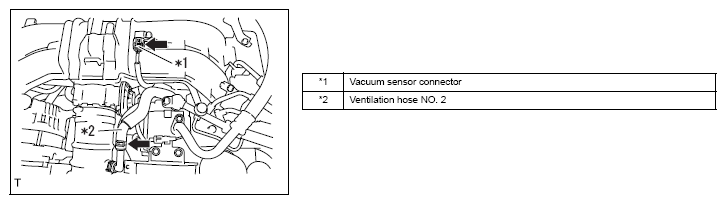

    3. Disconnect the vacuum sensor connector. (Transmission A/T)
    4. Disconnect the ventilation hose NO. 2 from the air intake boot. (Transmission A/T)
      G12586967Courtesy of SUBARU OF AMERICA, INC.

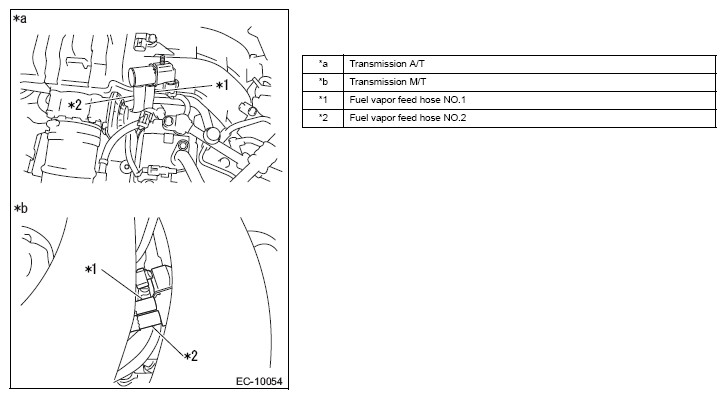

    5. Disconnect the fuel vapor feed hose No. 1 and fuel vapor feed hose No. 2, and remove the purge control solenoid valve.
      G12586968Courtesy of SUBARU OF AMERICA, INC.
    6. Disconnect the joint wire harness connector from the purge control solenoid valve.
      G12586969Courtesy of SUBARU OF AMERICA, INC.
