Brake Actuator ASSY: Removal

Precautions for brake pipe work
(Refer to BRAKE LINE )
Draining of brake fluid
CAUTION: Do not let brake fluid come into contact with the painted surface. If it happens, wash it out immediately.
Removal of front tire LH
Removal of front mud guard LH (Refer to WASHER MOTOR )

Removal of brake actuator ASSY W/bracket

Disconnect the harness clamp from the bracket.

G12590989

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the harness clamp from the bracket.

G12590990

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the cooler pipe from the clamp.

G12590991

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the clamp from the wiring harness of the speed sensor FR LH.

G12590992

Courtesy of SUBARU OF AMERICA, INC.

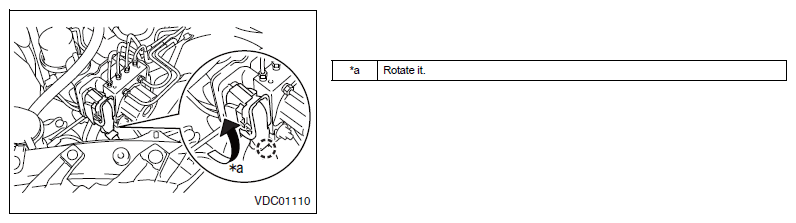

Press the claw on the vehicle wiring harness connector to remove the engaging part, and then rotate the lock lever upward to unlock.

G12590993

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the vehicle wiring harness connector from the brake actuator ASSY.

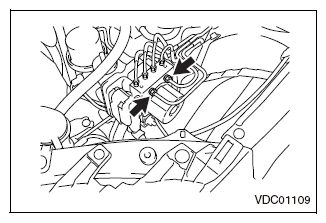

Using a flare-nut wrench, disconnect 2 brake tubes.

CAUTION: Protect the connector surface from contact with brake fluid.

G08555354

Courtesy of SUBARU OF AMERICA, INC.

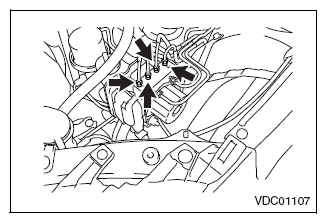

Using a flare-nut wrench, disconnect 4 brake tubes.

CAUTION: Protect the connector surface from contact with brake fluid.

G08555355

Courtesy of SUBARU OF AMERICA, INC.

Remove the bolt from the brake actuator ASSY W/bracket.

G12590996

Courtesy of SUBARU OF AMERICA, INC.

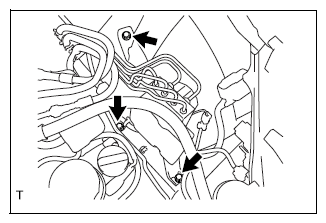

Remove 3 bolts from the brake actuator ASSY W/bracket.

Remove the brake actuator ASSY W/bracket from the body.

CAUTION: Do not bend or damage the brake tubes.

G12590997

Courtesy of SUBARU OF AMERICA, INC.
