Parking Brake ASSY: Disassembly

  1. Removal of rear tire
  2. Disconnection of rear disc brake caliper ASSY LH
    1. Remove 2 bolts and then disconnect the rear disc brake caliper from the rear axle carrier.
      CAUTION: Hang the brake caliper, using a wire or equivalent.
      G12591195Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of rear disc
    1. Put alignment marks on the rear disc and the axle hub.
      G12591196Courtesy of SUBARU OF AMERICA, INC.
    2. Release the parking brake and remove the rear disc.

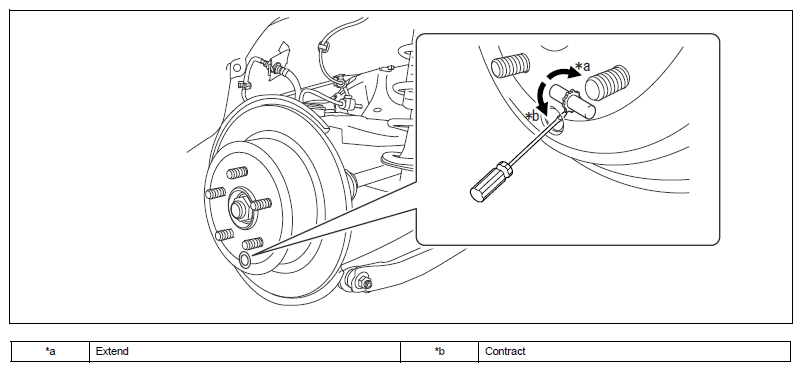

      NOTE: If it is difficult to remove the rear disc, insert a flat head screwdriver from the rear disc service hole and rotate the adjusting screw to contract the parking brake shoe.
      G12591197Courtesy of SUBARU OF AMERICA, INC.
  4. Removal of parking brake shoe return tension spring No. 2 (installed to the front side)

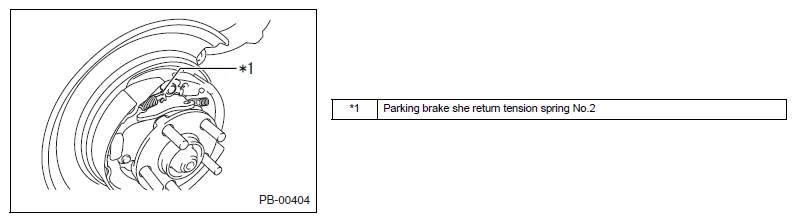

    1. Remove the parking brake shoe return tension spring No. 2 (installed to the front side).
      G12591198Courtesy of SUBARU OF AMERICA, INC.
  5. Removal of parking brake shoe return tension spring No. 2 (installed to the rear side)

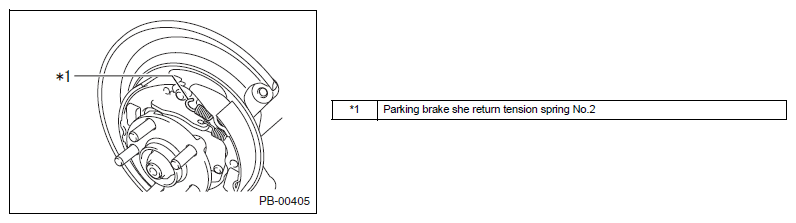

    1. Remove the parking brake shoe return tension spring No. 2 (installed to the front side).
      G12591199Courtesy of SUBARU OF AMERICA, INC.
  6. Removal of parking brake shoe strut compression spring

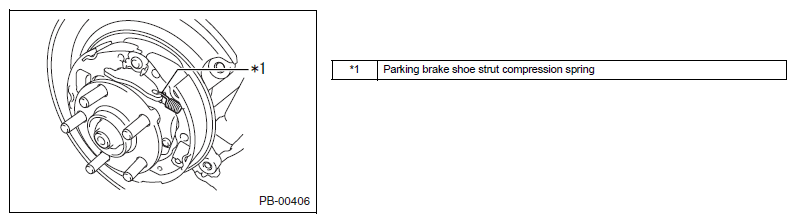

    1. Remove the parking brake shoe strut compression spring.
      G12591200Courtesy of SUBARU OF AMERICA, INC.
  7. Removal of parking brake shoe hold-down compression spring (installed to the front side)
    1. Remove the parking brake shoe hold-down compression spring (installed to the front side).
      G12591201Courtesy of SUBARU OF AMERICA, INC.
  8. Removal of parking brake shoe hold-down spring pin (installed to the front side) (1) Remove the tension pin (installed to the front side).
  9. Removal of parking brake shoe strut LH

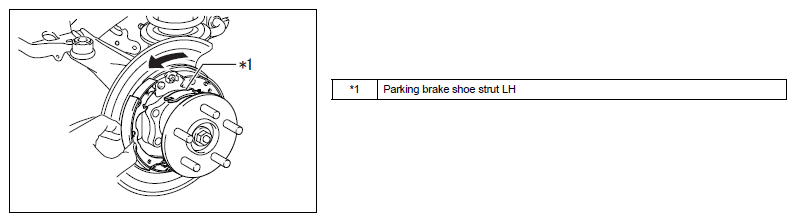

    1. Spread the parking brake shoe kit outward with hands and remove the parking brake shoe strut LH.
      G12591202Courtesy of SUBARU OF AMERICA, INC.
  10. Removal of parking brake shoe hold-down compression spring (installed to the rear side)
    1. Remove the parking brake shoe hold-down compression spring (installed to the rear side).
      G12591203Courtesy of SUBARU OF AMERICA, INC.
  11. Removal of parking brake shoe hold-down spring pin (installed to the rear side)
    NOTE: Service the parking brake shoe hold-down spring pin (installed to the rear side) using the same procedures for the parking brake shoe hold-down spring pin (installed to the front side).
  12. Removal of parking brake shoe adjusting screw set LH

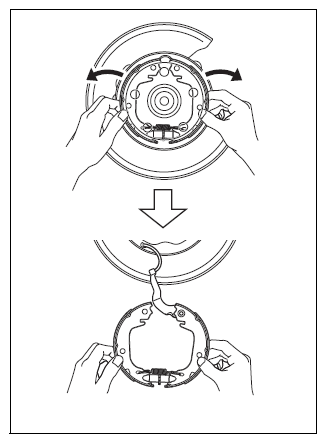

    1. Spread the parking brake shoe kit outward by hand and pull it out from the lower side of the vehicle.
      G12591204Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the parking brake shoe adjusting screw set LH from the parking brake shoe kit.
      G12591205Courtesy of SUBARU OF AMERICA, INC.
  13. Removal of parking brake shoe kit
    1. Remove the parking brake shoe kit from the parking brake shoe return tension spring No. 3.
      G12591206Courtesy of SUBARU OF AMERICA, INC.
  14. Removal of parking brake shoe return tension spring No. 3.
    1. Remove the parking brake shoe return tension spring No. 3 from the parking brake shoe kit.
      G12591207Courtesy of SUBARU OF AMERICA, INC.
  15. Disconnection of parking brake shoe lever LH
    1. Disconnect the parking brake shoe lever LH.
      G12591208Courtesy of SUBARU OF AMERICA, INC.
  16. Removal of parking brake shoe C type washer
    1. As shown in the figure, spread the parking brake shoe C type washer and remove it from the parking brake shoe kit.
      G12591209Courtesy of SUBARU OF AMERICA, INC.
  17. Removal of parking brake shoe wave washer
    1. Remove the parking brake shoe wave washer.
  18. Removal of parking brake shoe pin
    1. Remove the parking brake shoe pin.
