Vacuum Pump ASSY: Installation
- Installation of vacuum pump ASSY (transmission A/T)
- As shown in the figure, apply the seal gasket 1217G to the cam carrier RH.CAUTION:
- Clean and degrease the installation surface.
- Install within 5 min. after applying liquid gasket.
- Install a new O-ring.

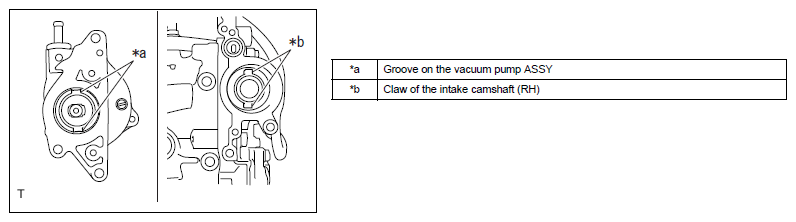

- Align the groove on the vacuum pump ASSY and the claw on the intake camshaft RH.CAUTION: Be careful not to let the O-ring catch.
- Install the vacuum pump ASSY with 3 bolts.
Standard value: T=16N.m {163kgf.cm} {11.8ft.lbf}
- As shown in the figure, apply the seal gasket 1217G to the cam carrier RH.
- Installation of union to connector tube hose
- Install the union to connector tube hose with a clamp.
- Installation of front upper suspension-to-cowl brace SUB-ASSY RH (Refer to INSTALLATION )
