Brake Booster ASSY: Removal

  1. Removal of instrument side panel LH (Refer to REMOVAL , Step 14)
  2. Removal of instrument panel under cover SUB-ASSY No. 1
  3. Removal of transmission control computer ASSY (Refer to REMOVAL )
  4. Removal of brake master cylinder SUB-ASSY (Refer to BRAKE MASTER CYLINDER ASSY )
  5. Disconnection of vacuum hose
    1. Slide the clip and disconnect the vacuum hose from the brake booster ASSY.
  6. Removal of the brake tube front No. 1
    1. Using a flare-nut wrench, disconnect the brake tube front No. 1 from the brake actuator.

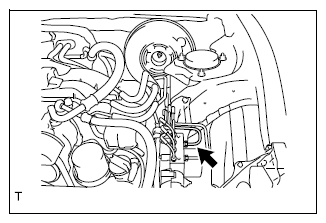

      G12591062Courtesy of SUBARU OF AMERICA, INC.
    2. Release 2 clips and remove the brake tube front No. 1.
      G12591063Courtesy of SUBARU OF AMERICA, INC.
  7. Removal of the brake tube front No. 2
    1. Using a flare-nut wrench, disconnect the brake tube front No. 2 from the brake actuator.

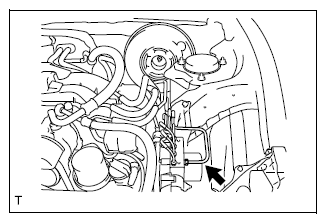

      G12591064Courtesy of SUBARU OF AMERICA, INC.
    2. Release 2 clips and remove the brake tube front No. 2.
  8. Removal of brake booster ASSY
    1. Remove 4 nuts.

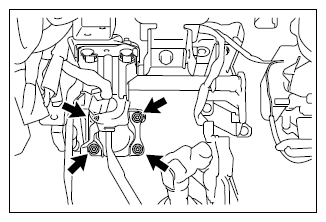

      G12591065Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the push rod clevis.
    3. Remove the brake booster ASSY.

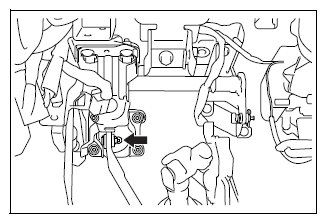

      G12591066Courtesy of SUBARU OF AMERICA, INC.
