Unit Inspection
- Inspection of power window regulator motor ASSY LH (driver's side door)CAUTION:
- Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
- After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system. (Refer to REGISTRATION SETTINGS )

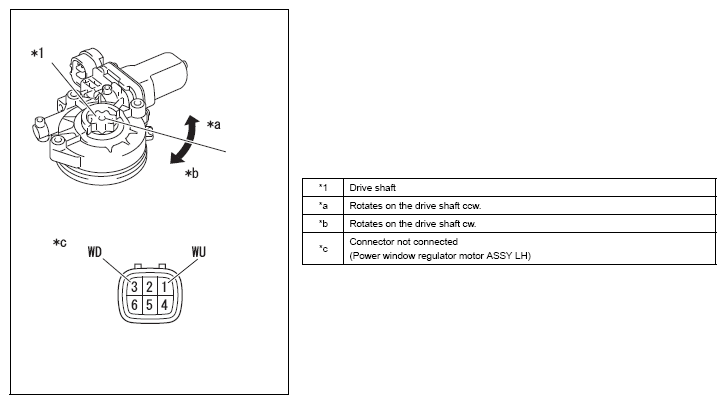

- Apply battery voltage to each connector terminal of the power window regulator motor ASSY LH and check that the power window regulator motor ASSY LH operates smoothly.BATTERY CONNECTION - CRITERIA
Battery connection Criteria Battery positive terminal - 3 (WD)
Battery ground terminal - 1 (WU)Rotates on the drive shaft ccw (open). Battery positive terminal - 1 (WU)
Battery ground terminal - 3 (WD)Rotates on the drive shaft cw (close).
- Inspection of power window regulator motor ASSY RH (passenger's side door)CAUTION:
- Apply the voltage to the motor terminals 1 and 3 only. Otherwise, the pulse sensor inside the motor can be damaged.
- After removing or replacing the power window regulator motor ASSY, perform the initialization of the power window system. (Refer to REGISTRATION SETTINGS )

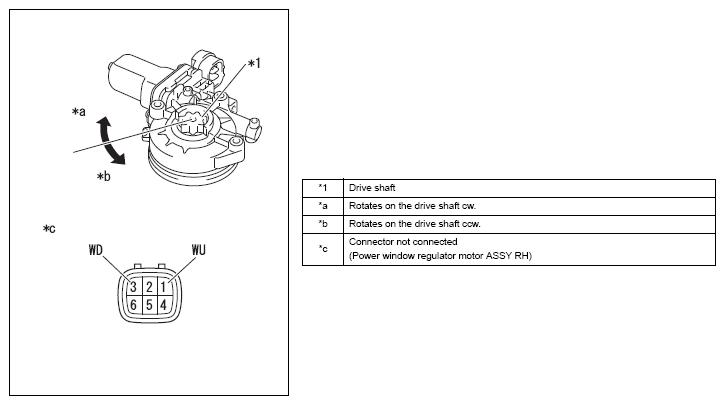

- Apply battery voltage to each connector terminal of the power window regulator motor ASSY RH and check that the power window regulator motor ASSY RH operates smoothly.BATTERY CONNECTION - CRITERIA
Battery connection Criteria Battery positive terminal - 3 (WD)
Battery ground terminal - 1 (WU)Rotates on the drive shaft cw (open). Battery positive terminal - 1 (WU)
Battery ground terminal - 3 (WD)Rotates on the drive shaft ccw (close).
