Front Seat ASSY: Installation

1. Return the front seat backrest ASSY to the upright position, and lock it.
2. Carry in the front seat ASSY LH to the vehicle.
   CAUTION:

   • The front seat ASSY LH must be carried in to the vehicle with the front seat headrest ASSY removed, by more than one personnel.
   • Be careful not to damage the front seat ASSY LH, the body exterior and interior.
3. Connect the connectors and the wiring harness clamp.
4. Engage the hook and install the front seat cushion cover LH.
5. Slide the front seat ASSY LH to the most rear position.

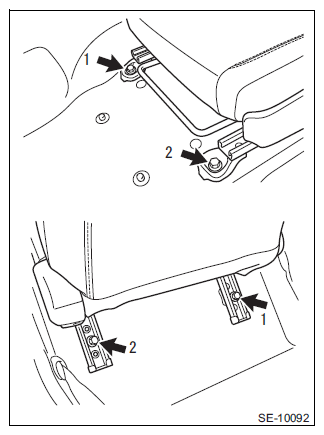

6. Tighten 2 bolts on the front side of the front seat ASSY LH in the order shown in the figure.

   Standard value: T=53N.m {540kgf.cm} {39.1ft.lbf}

   Courtesy of SUBARU OF AMERICA, INC.

7. Slide the front seat ASSY LH to the most front position.
8. Tighten 2 bolts on the rear side of the front seat ASSY LH in the order shown in the figure.

   Standard value: T=53N.m {540kgf.cm} {39.1ft.lbf}

1. Check that the right and left adjusters are simultaneously locked when the seat slides.
2. If the sliders are not synchronized, loosen the bolts securing the seat and adjust them.

Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
