Name Plate: Installation

Installation of the front ornament emblem (Installed on the front side)

Cleaning the installation surface of the front ornament emblem
1. Remove any remaining acrylic foam tape on the front ornament emblem installation surface. (b)Degrease the installation surface of the front ornament emblem.
Using a heat light, heat up the new front ornament emblem and the vehicle installation surface.
WARNING: Be careful of burns from the heated body or the heat from the heat lamp.
NOTE:
- Body side: 40 to 60°C (104 to 140°F)
- Front ornament emblem side: 20 to 30°C {68 to 86°F}
Peel the backing sheet of the acrylic foam tape, avoiding touching the adhesive surface.

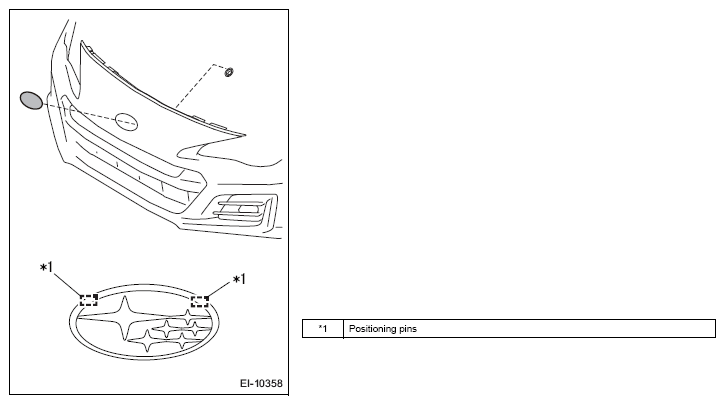

Align the positions of the positioning pins, and install the front ornament emblem.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Press the front ornament emblem firmly to install it.

Installation of the rear ornament emblem (Installed on the rear side)

Cleaning the installation surface of the rear ornament emblem
1. Remove any remaining acrylic foam tape on the rear ornament emblem installation surface.
2. Degrease the installation surface of the rear ornament emblem.
Using a heat light, heat up the new rear ornament emblem and the vehicle installation surface.
WARNING: Be careful of burns from the heated body or the heat from the heat lamp.
NOTE:
- Body side: 40 to 60°C (104 to 140°F)
- Rear ornament emblem side: 20 to 30°C {68 to 86°F}
Peel the backing sheet of the acrylic foam tape, avoiding touching the adhesive surface.

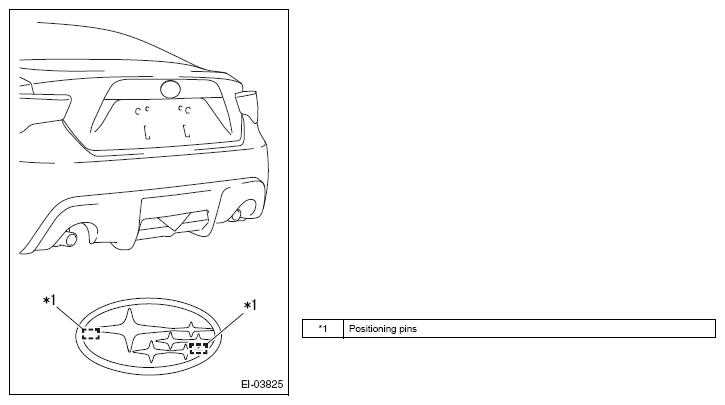

Align the positions of the positioning pins, and install the rear ornament emblem.

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Press the rear ornament emblem firmly to install it.
