Cable ASSY Front Hood: Installation

  1. Installation of the cable ASSY front hood

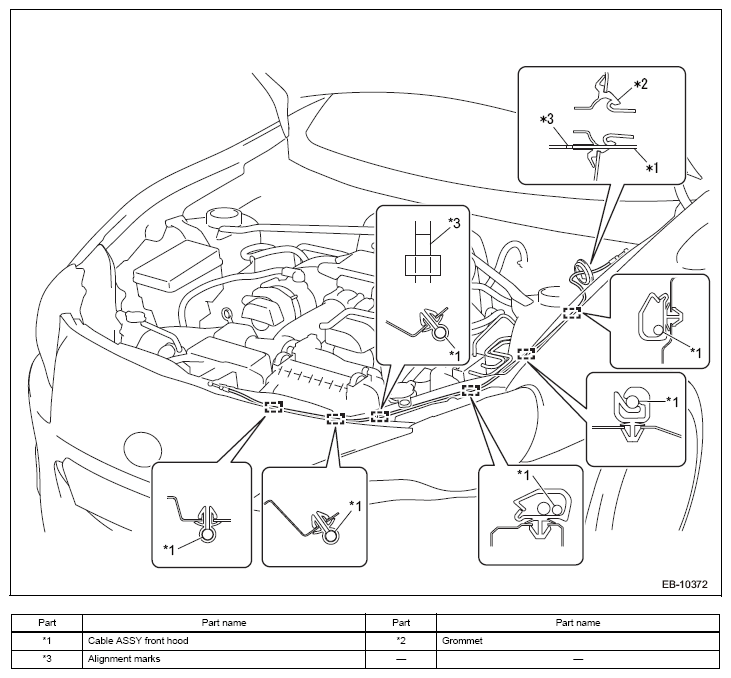

    1. Engage each clamp as shown in the figure to install the cable ASSY front hood.
      G12595007Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of the lock ASSY front hood
    1. Connect the cable ASSY front hood to the hood lock ASSY.
      G12595008Courtesy of SUBARU OF AMERICA, INC.
    2. Install the lock ASSY front hood with the 3 bolts in the order shown in the figure.

      Standard value: T=33N.m {336kgf.cm} {24.3 ft.lbf}

      G12594999Courtesy of SUBARU OF AMERICA, INC.
  3. Installation of the air cleaner case SUB-ASSY (Refer to INSTALLATION )
  4. Installation of the pull handle ASSY
    1. Connect the cable ASSY front hood to the pull handle ASSY
    2. Using the bolt, install the pull handle ASSY.

      Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}

  5. Installation of cowl side trim board LH (Refer to INSTALLATION )
  6. Installation of front door scuff plate LH (Refer to INSTALLATION
