Door Courtesy Light (Installed To The Front Side): Removal

NOTE: The procedures described below are for the RH side. Perform the same procedures for the LH side.

Removal of the courtesy light ASSY

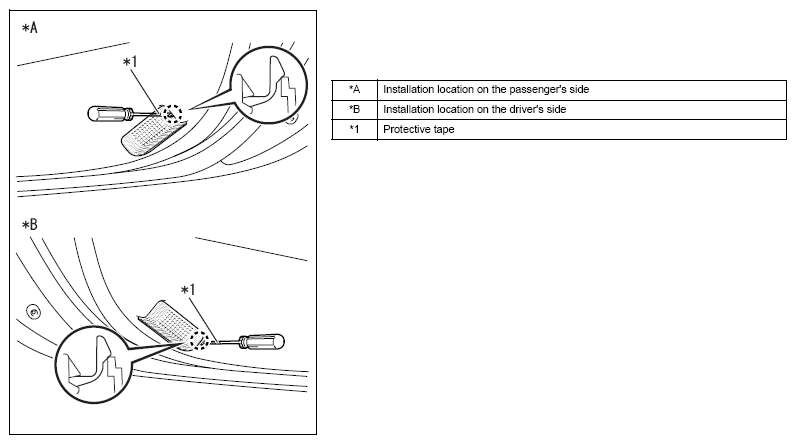

Using a flat head screw driver wrapped in protective tape, release the tab.

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the connector and remove the courtesy light ASSY.

Courtesy of SUBARU OF AMERICA, INC.

Removal of the courtesy light bulb

Release the claws by using a flat tip screwdriver wrapped with protective tape, and remove the courtesy light cover.

Courtesy of SUBARU OF AMERICA, INC.

Remove the courtesy light bulb.

Courtesy of SUBARU OF AMERICA, INC.
