Subaru
>>
2019
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter / Gauge System
>>
Meter & Gauge System
>>

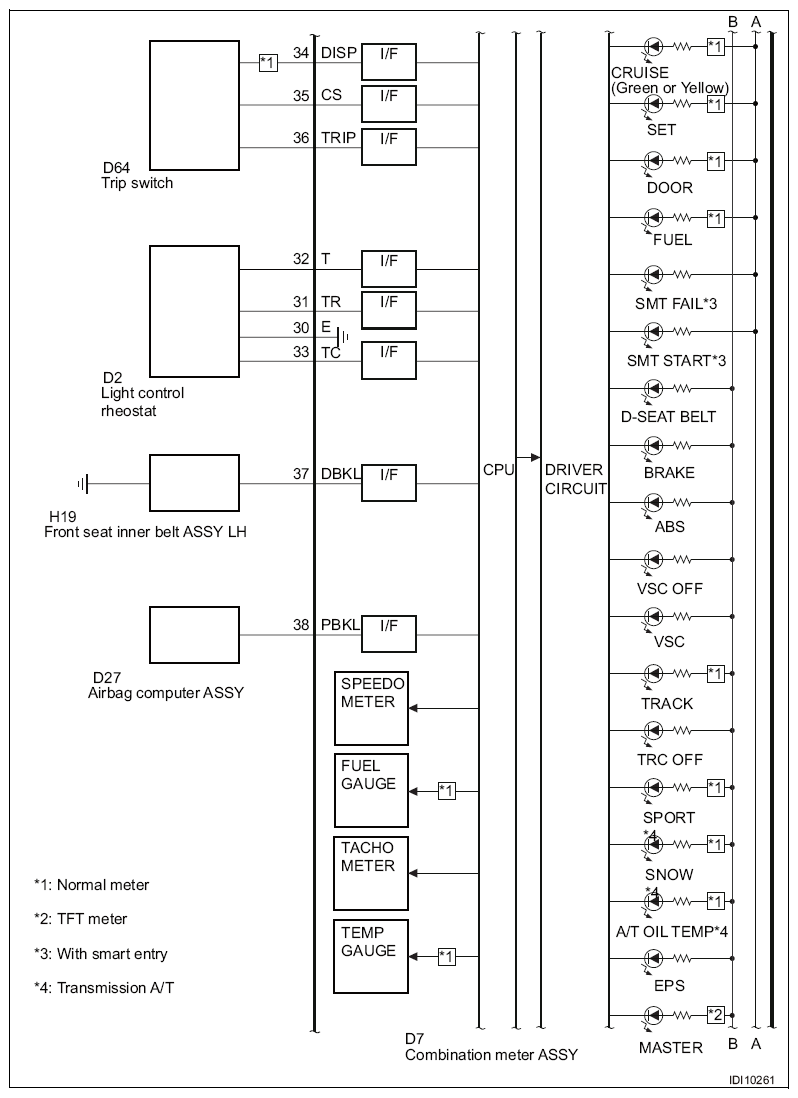

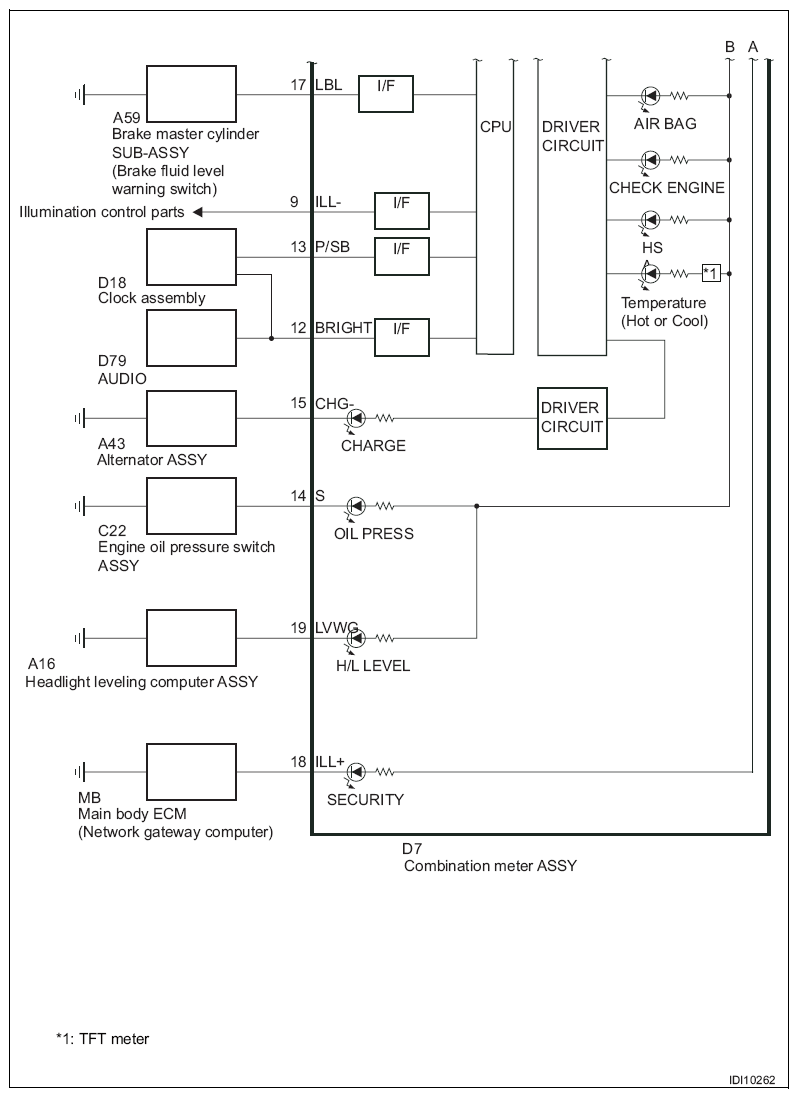

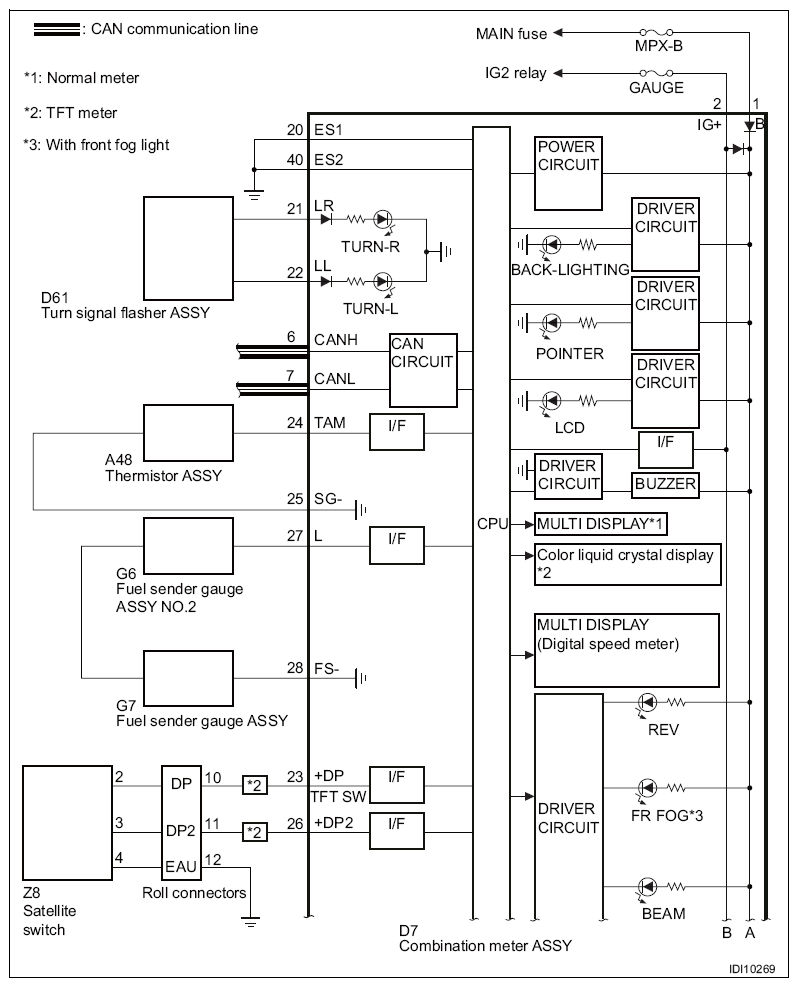

Circuit Figure
Circuit Figure
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
